| Parameter | Specification |
|---|---|
| P/N | QSFP28-100G-AOC-xM |
| Connector | QSFP28 to QSFP28 |
| Cable Length | Customized |
| Jacket Material | OFNP |
| Operation Temperature | 0 ~ 70 °C (32 to 158°F) |
| Max Data Rate | 100Gbps |
| Fiber Cable | OM3 MMF / OM4 MMF |
| Minimum Bend Radius | 7.5mm |
| Protocols | 40G/100G Ethernet, Infiniband EDR |
Active optical cables provide a lightweight and slim alternative to copper cables, simplifying cable management.

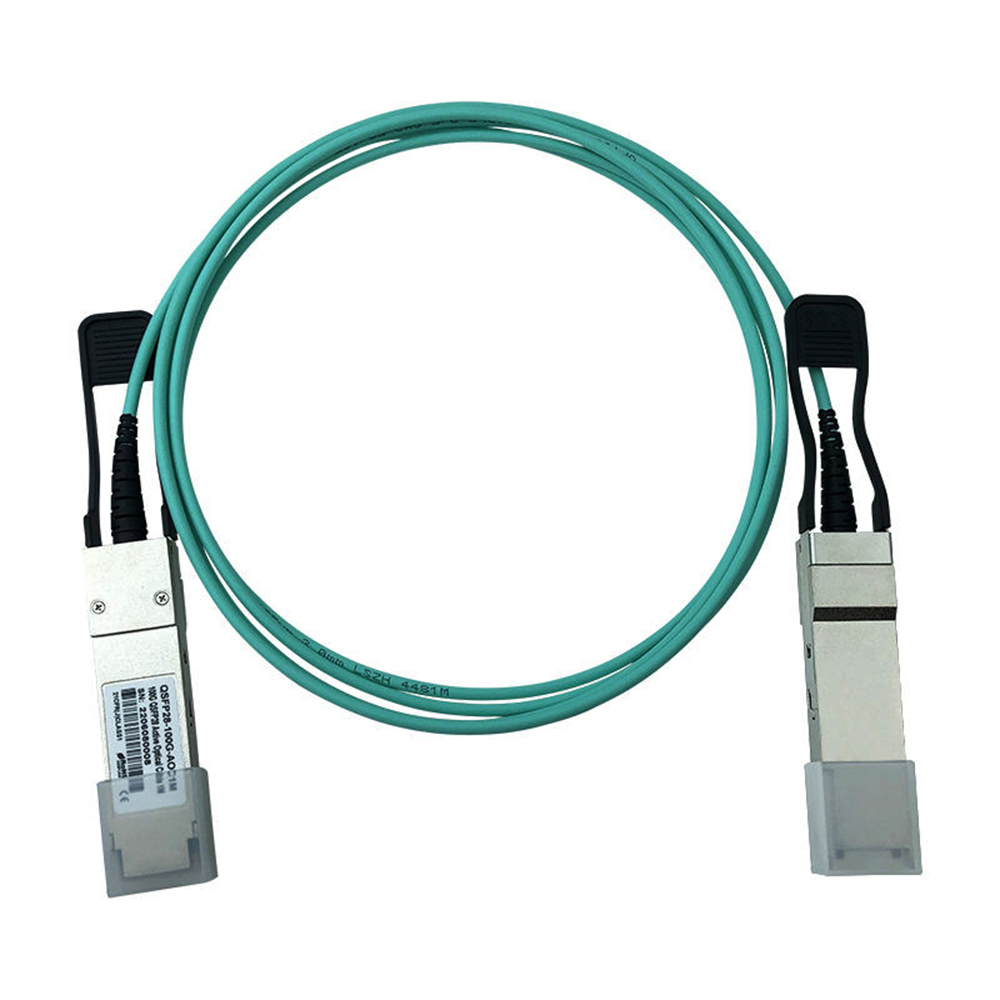

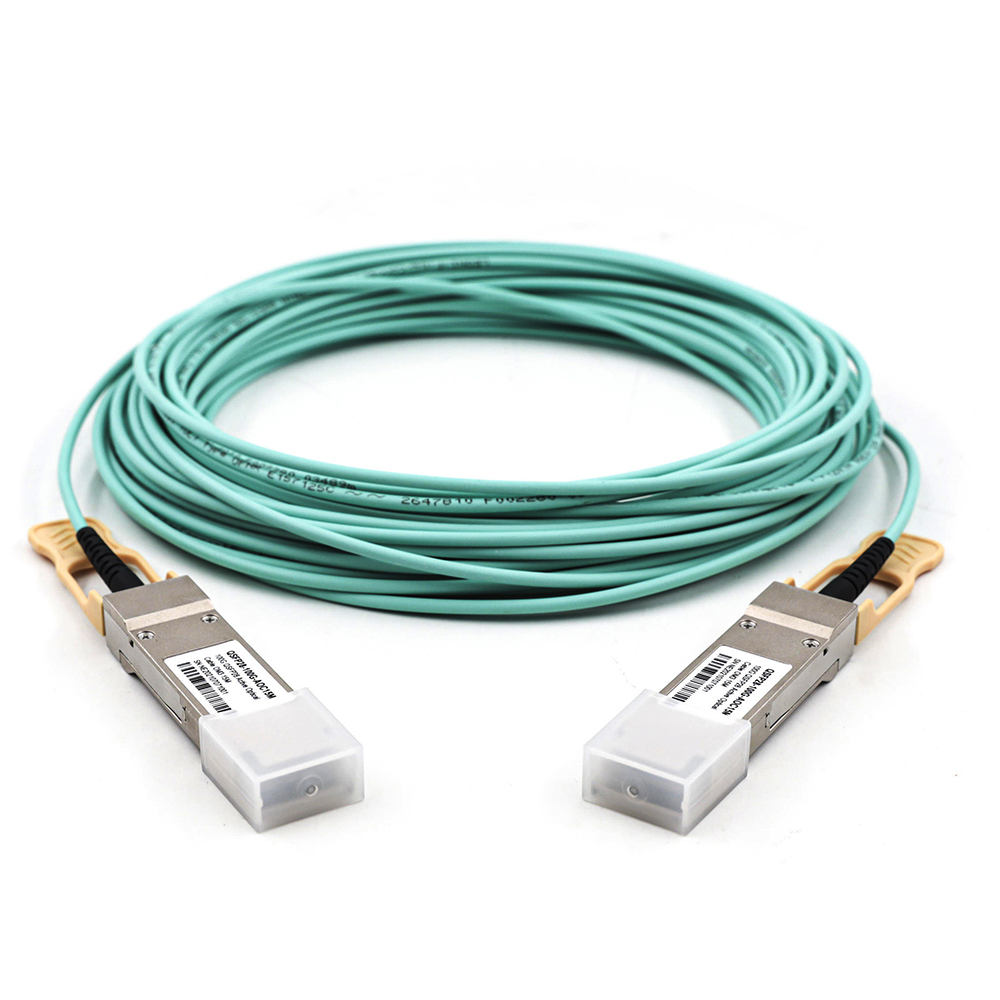

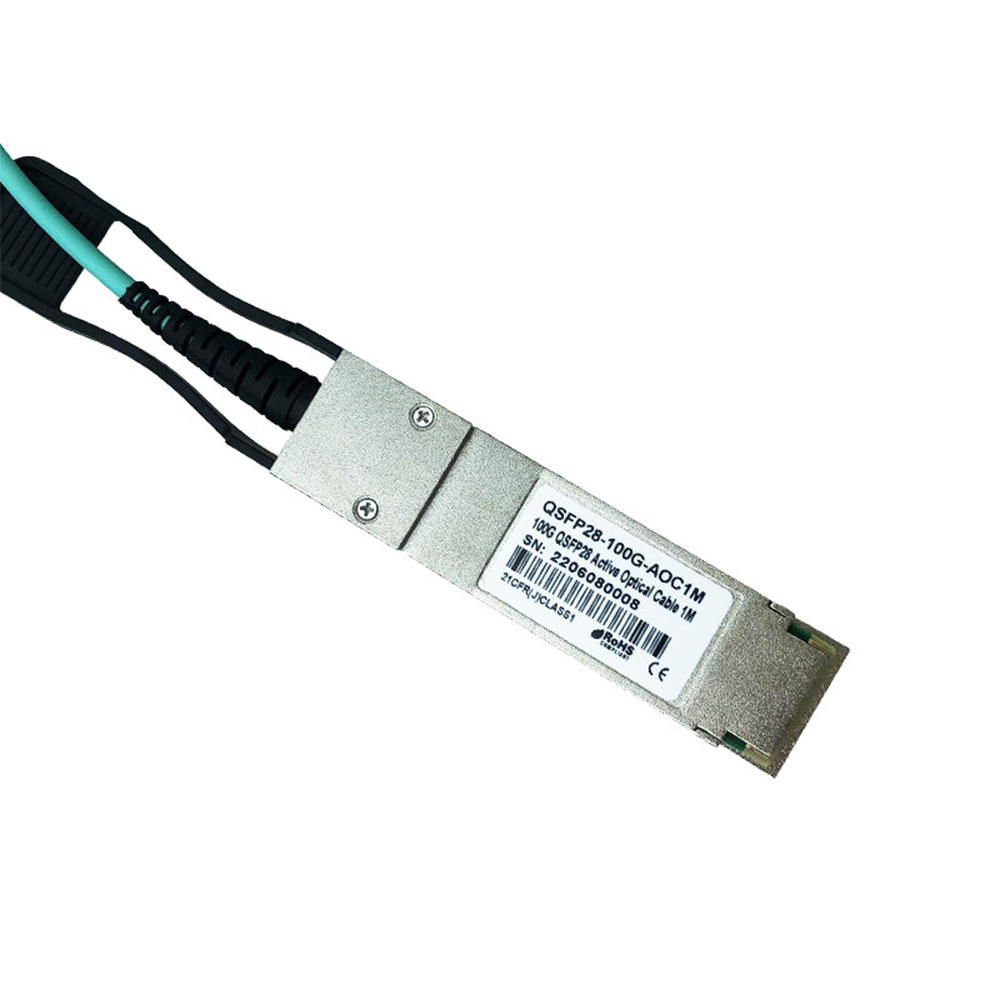

The QSFP28-100G-AOC-xM 100G QSFP28 to QSFP28 AOC Cable is a Four-Channel, Pluggable, Parallel, fiber-epic QSFP+ AOC for 100 Gigabit Ethernet and Infiniband EDR Applications.
QSFP28-100G-AOC-xM 100G AOC Cable is a high-performance module for short-range multi-lane data communication and interconnect applications.
It integrates four data lanes in each direction with 100 Gbps bandwidth.
Each lane can operate at 25.78125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber.
By offering a cost-efficient alternative to discrete optical transceivers and patch cables, these AOCs are ideal for establishing 100Gbps connections within racks and adjacent racks.
100GBASE-SR4 at 25.78125Gbps per lane
InfiniBand QDR, EDR
Other optical links

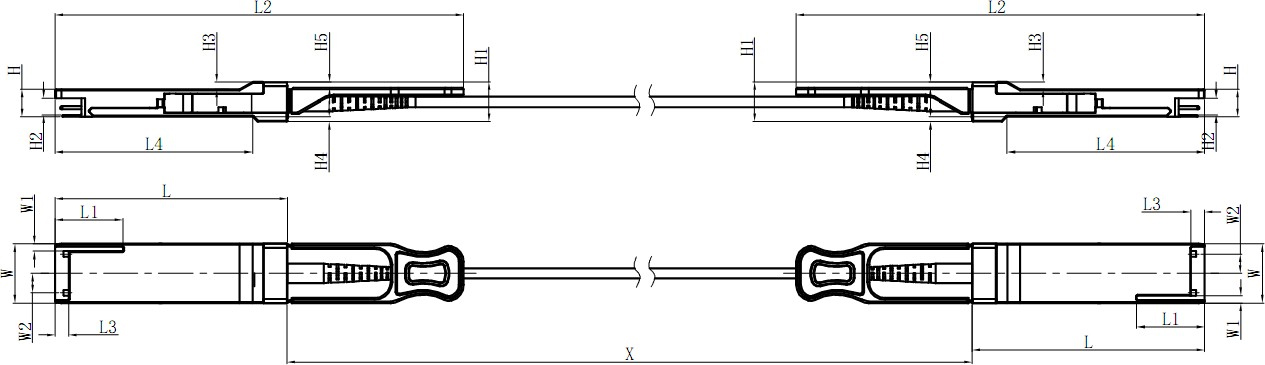

| Unit mm | Max | Type | Min |
|---|---|---|---|
| L | 72.2 | 72.0 | 68.8 |
| L1 | - | - | 16.5 |
| L2 | 128 | - | 124 |
| L3 | 4.35 | 4.20 | 4.05 |
| L4 | 61.4 | 61.2 | 61.0 |
| W | 18.45 | 18.35 | 18.25 |
| W1 | - | - | 2.2 |
| W2 | 6.2 | - | 5.8 |
| H | 8.6 | 8.5 | 8.4 |
| H1 | 12.4 | 12.2 | 12.0 |
| H2 | 5.35 | 5.2 | 5.05 |
| H3 | 2.5 | 2.3 | 2.1 |
| H4 | 1.6 | 1.5 | 1.3 |
| H5 | 2.0 | 1.8 | 1.6 |
| H6 | - | 6.55 | - |
The cable supports a maximum data rate of 100Gbps, operating with four data lanes in each direction at 25.78125Gbps per lane.
It can operate up to 70 meters using OM3 multi-mode fiber (MMF) or up to 100 meters using OM4 multi-mode fiber (MMF).
It is designed for 40G/100G Ethernet, InfiniBand QDR/EDR, and other short-range multi-lane data communication and interconnect applications.
The cable features an OFNP jacket material and has a minimum bend radius of 7.5mm, making it highly flexible and suitable for narrow routing spaces.
The standard operating temperature range is 0 to 70 °C (32 to 158°F).
Active optical cables are lightweight and slim compared to copper cables, which simplifies cable management and provides a cost-efficient alternative to discrete transceivers for rack interconnects.
