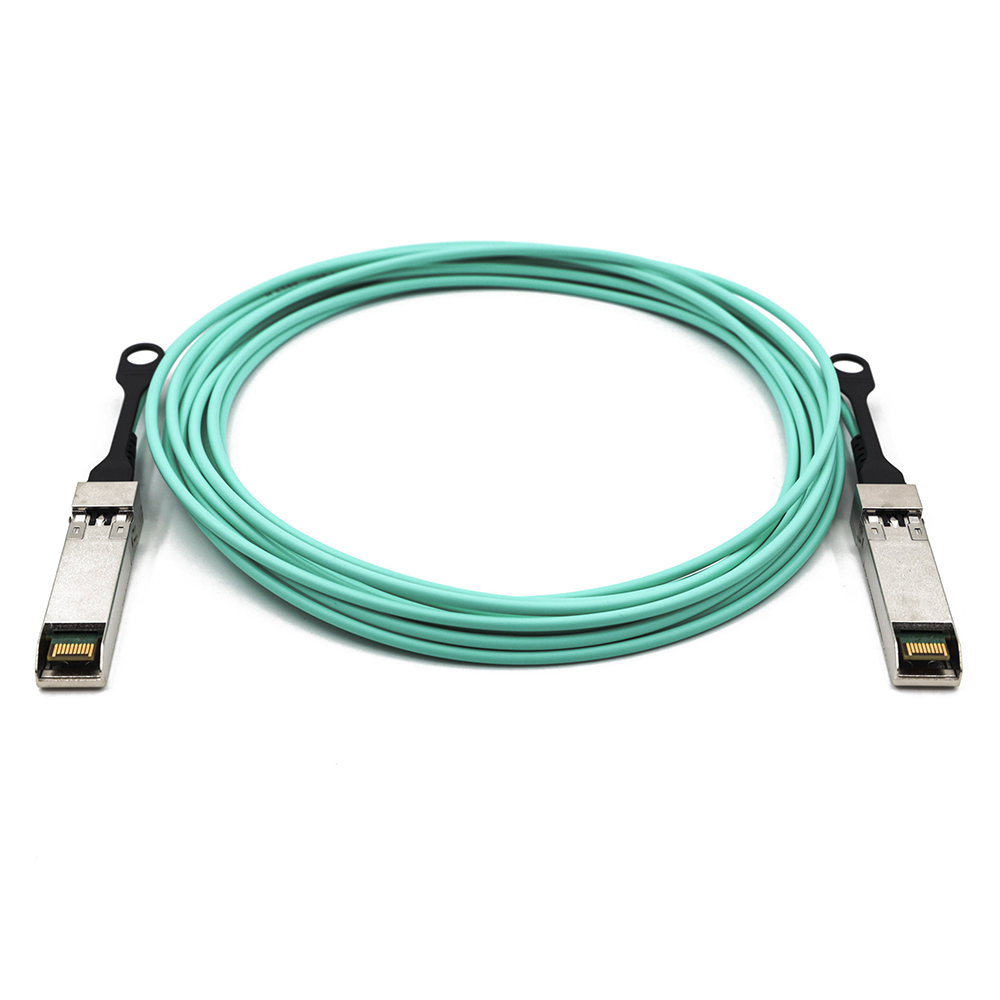

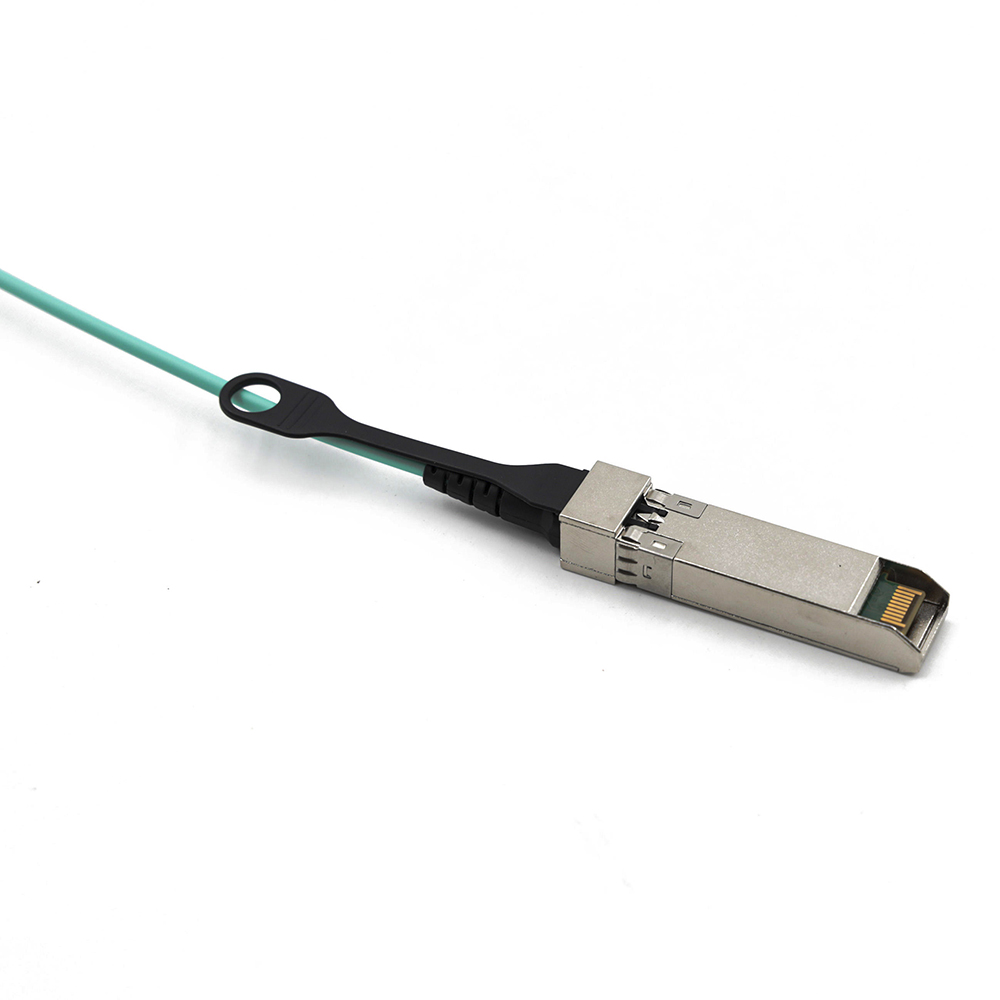

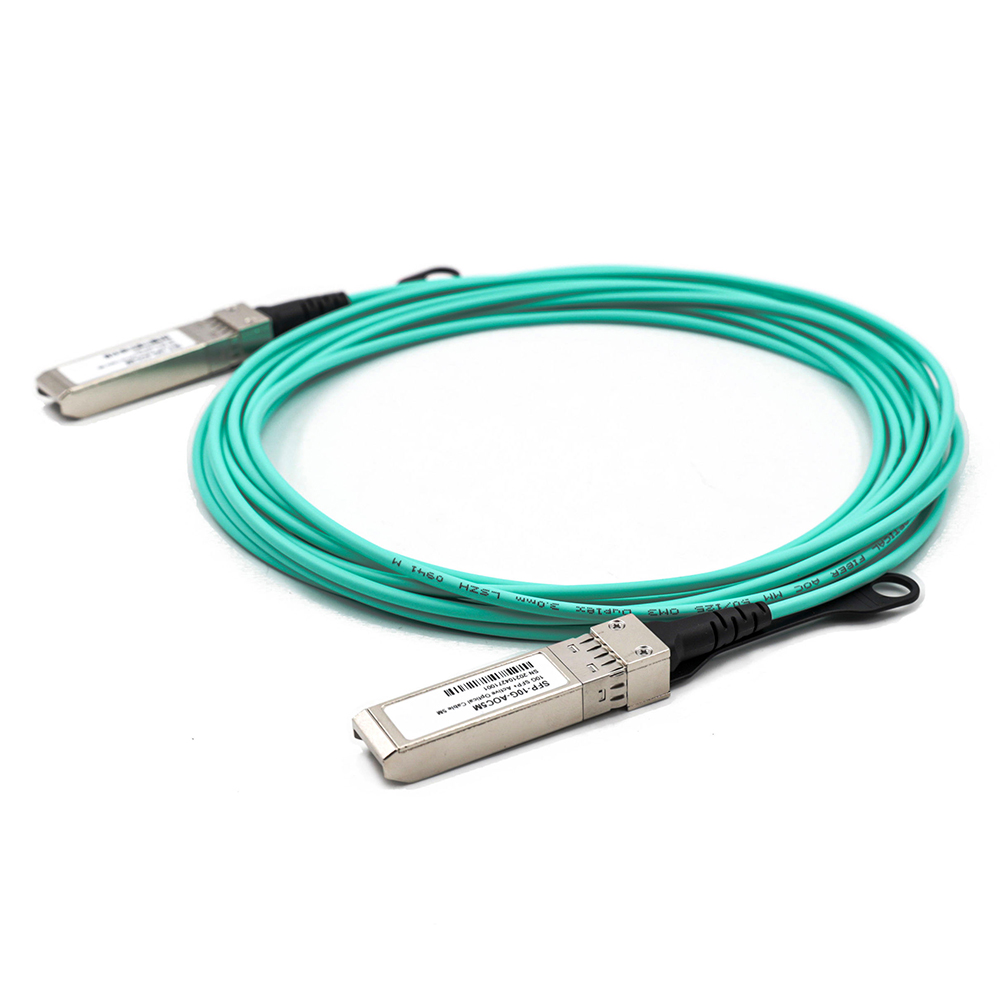

- The KCO-SFP-10G-AOC-xM Compatible SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+ connectors and operate over Multi-Mode Fiber (MMF). - This KCO-SFP-10G-AOC-xM AOC is compliant with SFF-8431 MSA standards. - It provides a cost-efficient solution as compared to using discrete optical transceivers and optical patch cables and is suitable for 10Gbps connections within racks and across adjacent racks. - The optics are completely contained inside the cable, which—without LC optical connectors to clean, scratch, or break—dramatically increases reliability and lowers maintenance costs. - AOCs are most often used for creating 1-30m short switch-to-switch or switch-to-GPU links.
Send Inquiry

Product Description

Parameter Symbol Unit Min Typ Max Notes
Optical Transmitter Characteristics
Data Rate DR Gbps 9.953 10.3125 11.3
Center Wavelength Range λc nm 820 850 880
Laser Off Power Poff dBm - - -45
Launch Optical Power P0 dBm -6.0 1
Extinction Ratio ER dB 3 - -
Spectral Width (RMS) RMS nm - 0.45
Optical Receiver Characteristics
Data Rate DR Gbps 9.953 10.3125 11.3
Bit Error Rate BER dBm - - E-12 2
Overload Input Optical Power PIN dBm 2.4 - - 2
Center Wavelength Range λc nm 820 - 880
Receiver Sensitivity in Average Power Sen dBm - - -9.9 3
Los Assert LosA dBm -26 - -
Los De-Assert LosD dBm - - -12
Los Hysteresis LosH dB 0.5 - -
Notes:
  1. Coupled into 50/125 MMF.
  2. Measured with PRBS 231-1 test pattern @10.3125Gbps. BER=10E-12
✓ Support 10GBASE-SR/10G Fiber Channel application
✓ Compliant to SFP+ Electrical MSA SFF-8431
✓ Compliant to SFP+ Mechanical MSA SFF-8432
✓ Multi rate of up to 11.3Gbps
✓ Transmission distance up to 150m (OM3)
✓ +3.3V single power supply
✓ Low power consumption
✓ Operating case temp: Commercial: 0°C to +70 °C
✓ RoHS compliant
✓ Password protection for A0h and A2h+ 10GBASE-SR at 10.31Gbps
✓ InfiniBand QDR, SDR, DDR
✓ Other optical links
Parameter Symbol Min. Typ. Max. Units Notes
Transmitter Electrical Characteristics
Differential Data Input Swing Vin,P-P 200 - 1600 mVPP
Input Differential Impedance ZIN 90 100 110 Ω
Tx_Fault Normal Operation VOL 0 - 0.8 V
Transmitter Fault VOH 2.0 - VCC V
Tx_Disable Normal Operation VIL 0 - 0.8 V
Laser Disable VIH 2.0 - VCC+0.3 V
Receiver Electrical Characteristics
Differential Date Output Vout 370 - 1600 mV
Output Differential Impedance ZD 90 100 110 Ω
Rx_LOS Normal Operation VOL 0 - 0.8 V
Lose Signal VOH 2.0 - VCC V
Parameter Value Units
Diameter 3 mm
Minimum bend radius 30 mm
Length tolerance Length < 1 m: +5 /-0 cm
1 m ≤ length ≤ 4.5 m: +15 / -0 cm
5 m ≤ length ≤ 14.5 m: +30 / -0 cm
Length ≥ 15.0 m +2% / -0 m
Cable color Aqua (OM3); Orange (OM2)

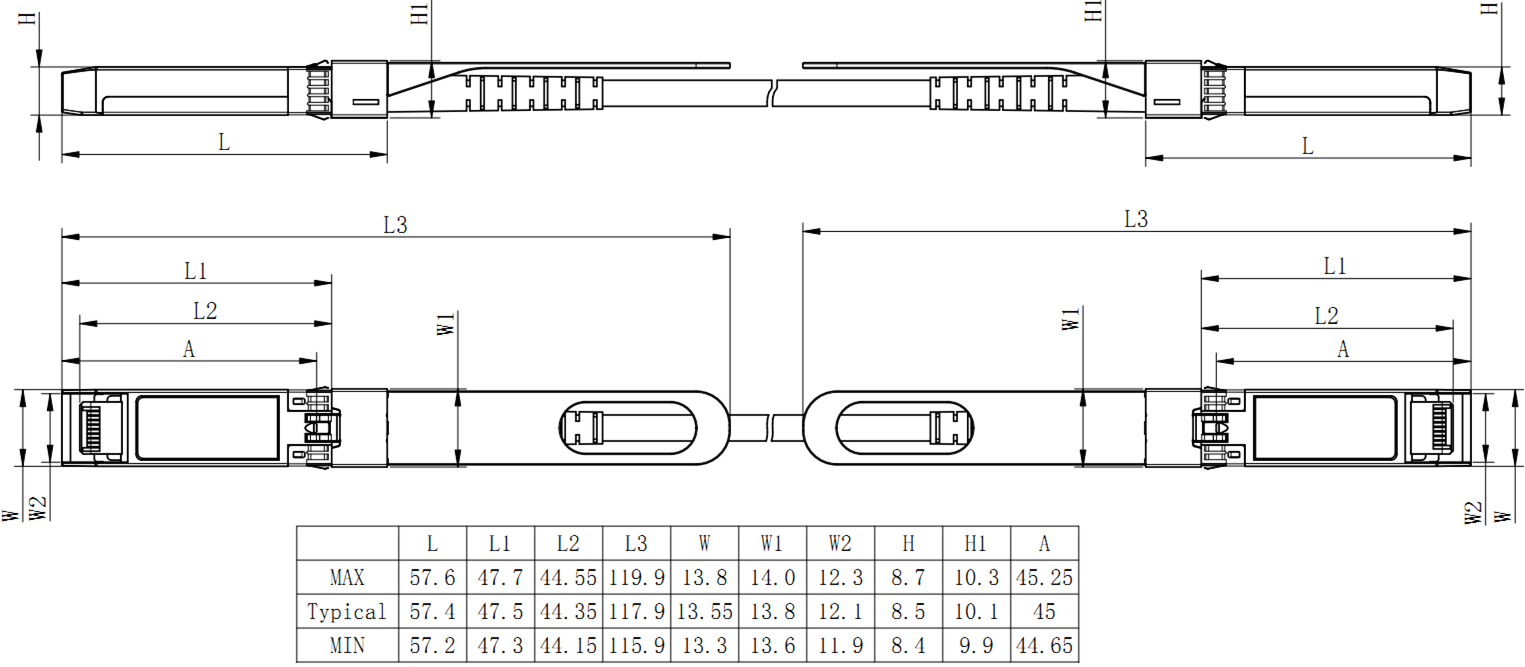

Optical Transceiver Diagram
Frequently Asked Questions (FAQ)
1. What applications are supported by this transceiver?
This module supports 10GBASE-SR/10G Fiber Channel applications, InfiniBand QDR/SDR/DDR, and other high-speed optical link connections.
2. What is the maximum transmission distance of this module?
The module supports a maximum transmission distance of up to 150 meters when using OM3 Multi-Mode Fiber (MMF).
3. Which standard regulations does the device comply with?
It is fully compliant with the SFP+ Electrical MSA (SFF-8431) and the SFP+ Mechanical MSA (SFF-8432) standards, as well as RoHS safety regulations.
4. What are the cable color codes defined for this module?
The cable color is Aqua for OM3 fibers, and Orange for OM2 fibers.
5. What is the acceptable working temperature range?
The commercial operating case temperature range is 0°C to +70°C under a +3.3V single power supply.
6. What is the length tolerance for patch cables under 1 meter?
For patch cables with a length less than 1 meter, the standard length tolerance is +5 / -0 cm.
