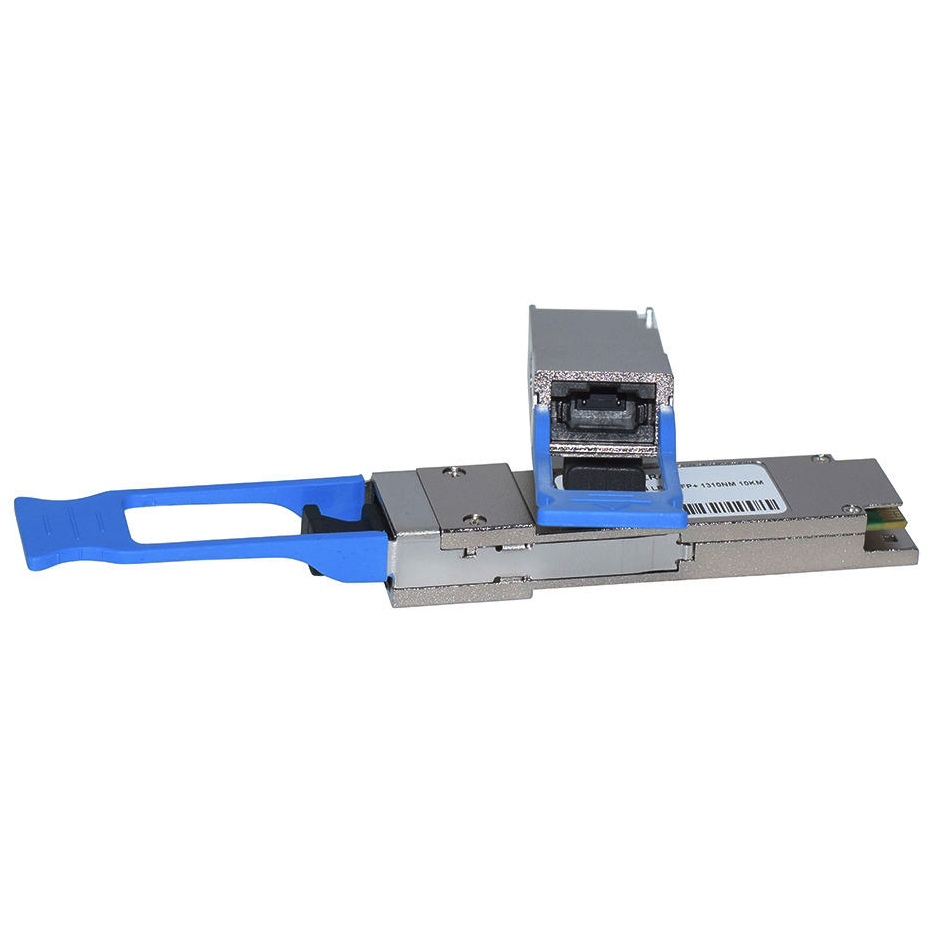

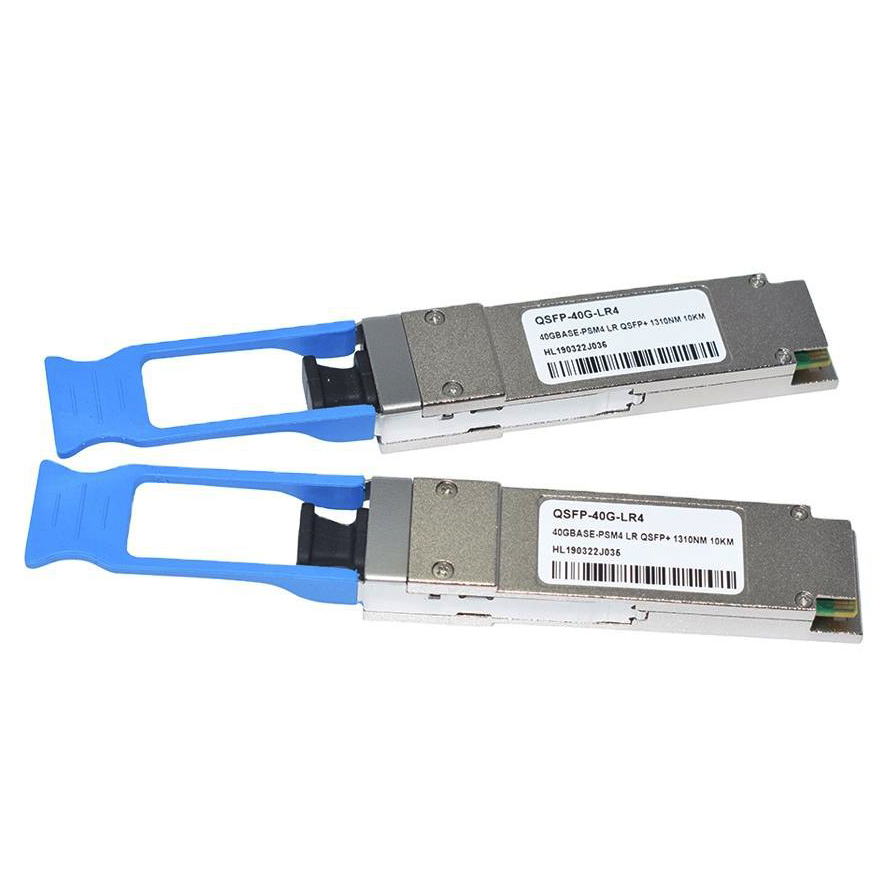

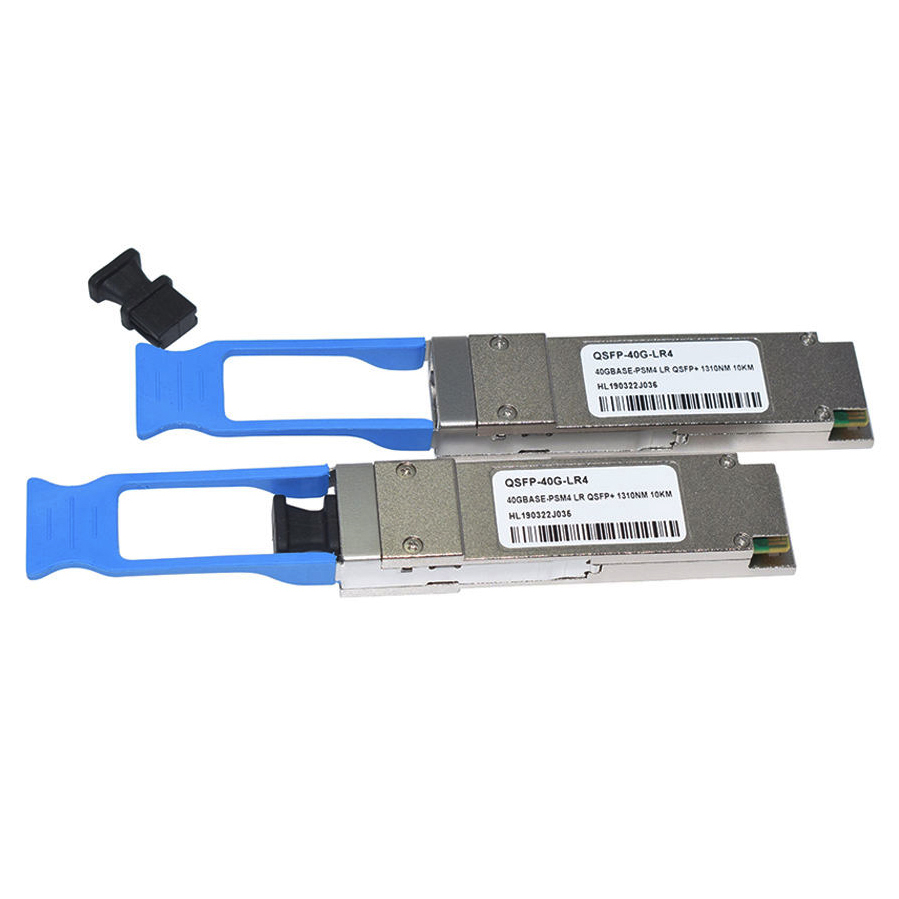

The QSFP+ 40G PLR4 fiber optic module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO connector. It provides high-density and low-power 40GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core and distribution layer applications. It is fully compliant with the QSFP+ MSA.
QSFP+ 40G PLR4 Compatible QSFP+ Fiber Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO connector. It is fully compliant with the QSFP+ MSA and IEEE 802.3ae 10GBASE-LR/LW and OTN data rates OTU2, OTU1e, and OTU2e per the ITU standard.
| Item | Fiber Optical Modules |
|---|---|
| Form Factor | QSFP+ |
| Max Data Rate | 40G |
| Max Cable Distance | PLR4 10Km |
| Wavelength | 4x1310nm parallel |
| Connector | MPO/MTP |
| No. of Fiber | ≥ 8F |
| Average Output Power | -6~-1 dBm |
| Receiver Sensitivity | <-14.4 dBm |
| Power Dissipation | ≤ 2.5W |
| DDM/DOM | Support |
| Temperature Range | 0 to 70°C (Business Grade) |
This module supports 40GBASE Ethernet throughput up to 10km over single-mode fiber (SMF) using a wavelength of 1310nm.
The QSFP+ 40G PLR4 transceiver connects via an MTP/MPO optical connector.

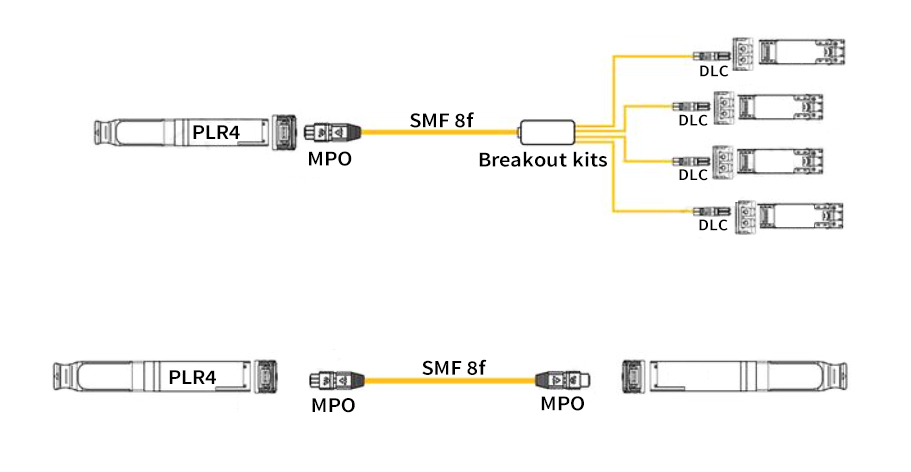

Yes, it can break out one 40G signal into 4x 10G signals, but the host device interface must support the breakout feature configuration.
It is fully compliant with the QSFP+ MSA, IEEE 802.3ae 10GBASE-LR/LW, and OTN data rates OTU2, OTU1e, and OTU2e according to ITU standards.
The operating temperature range is 0 to 70°C, which is suitable for business-grade applications.
The module operates with a low-power design, having a maximum power dissipation of ≤ 2.5W.
