The PLC splitters are based on Planar Waveguide Technology. They provide a cost-effective and space-saving networking solution. They are key components in FTTx networks and are responsible for distributing the signal from the central office to multiple premises. They feature a very wide operating wavelength range from 1260nm to 1620nm.

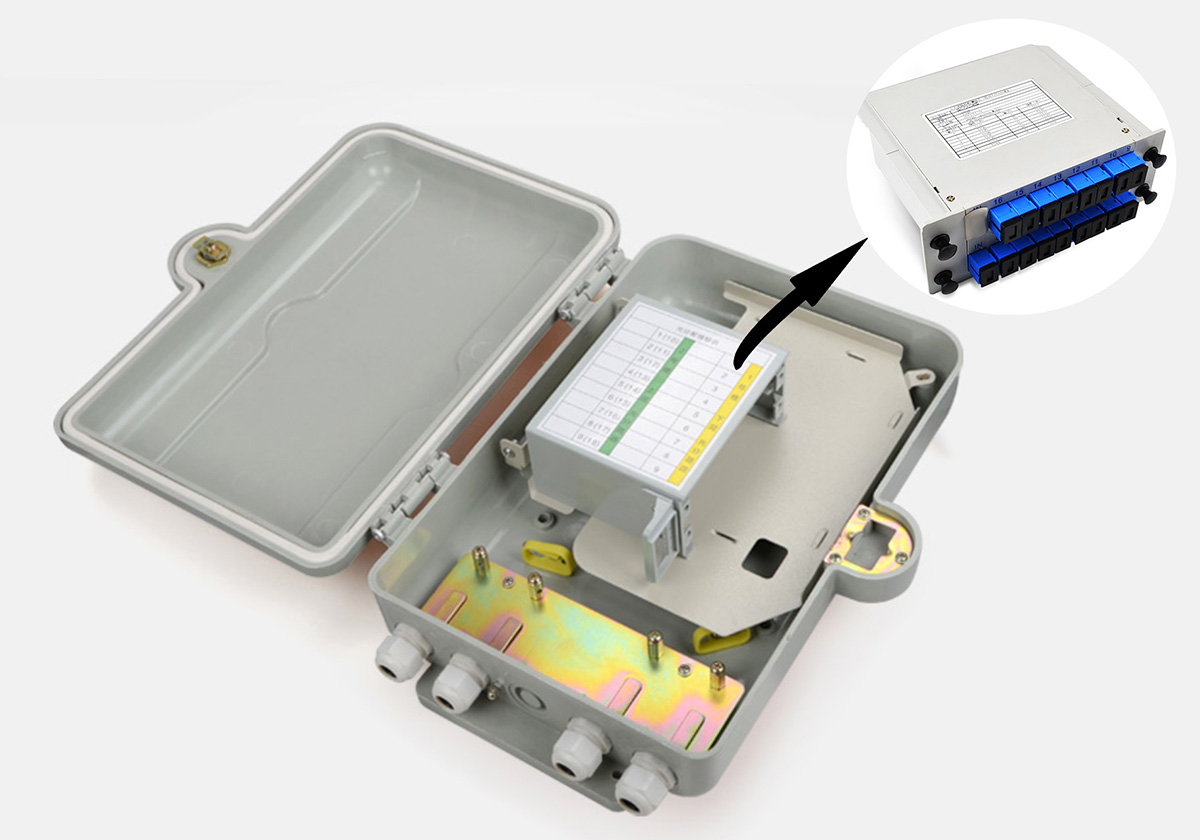

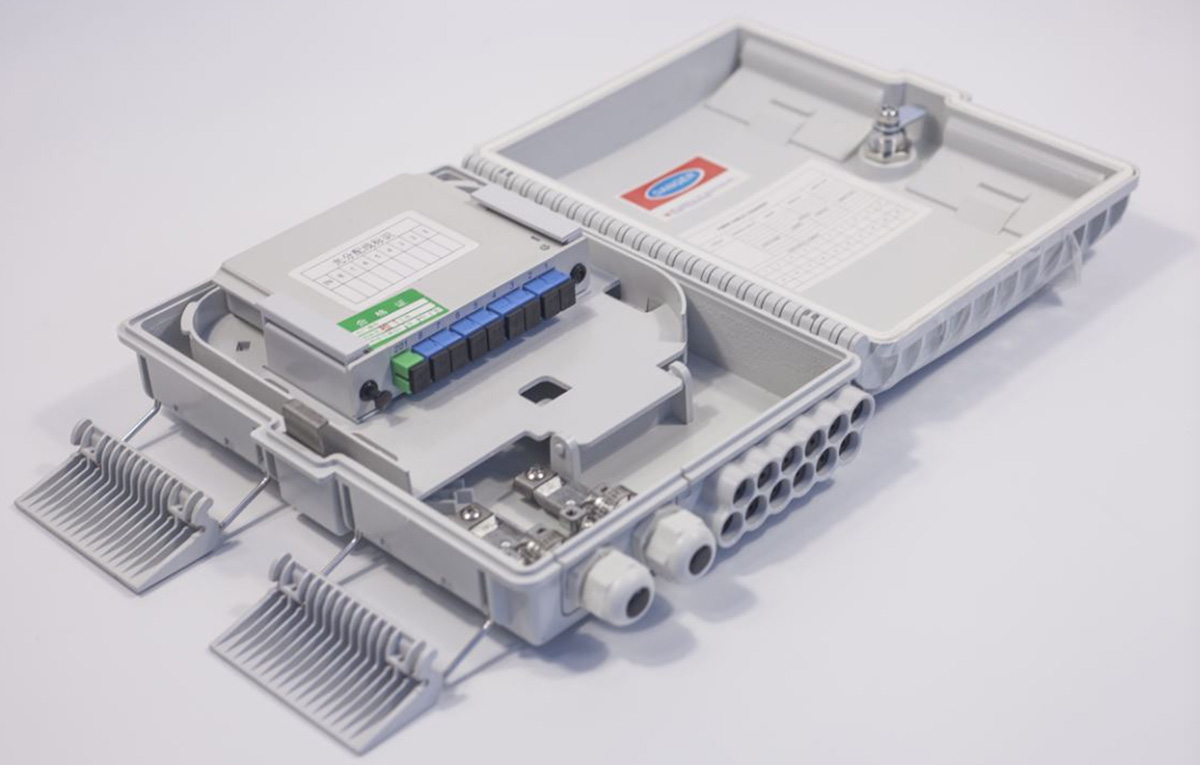

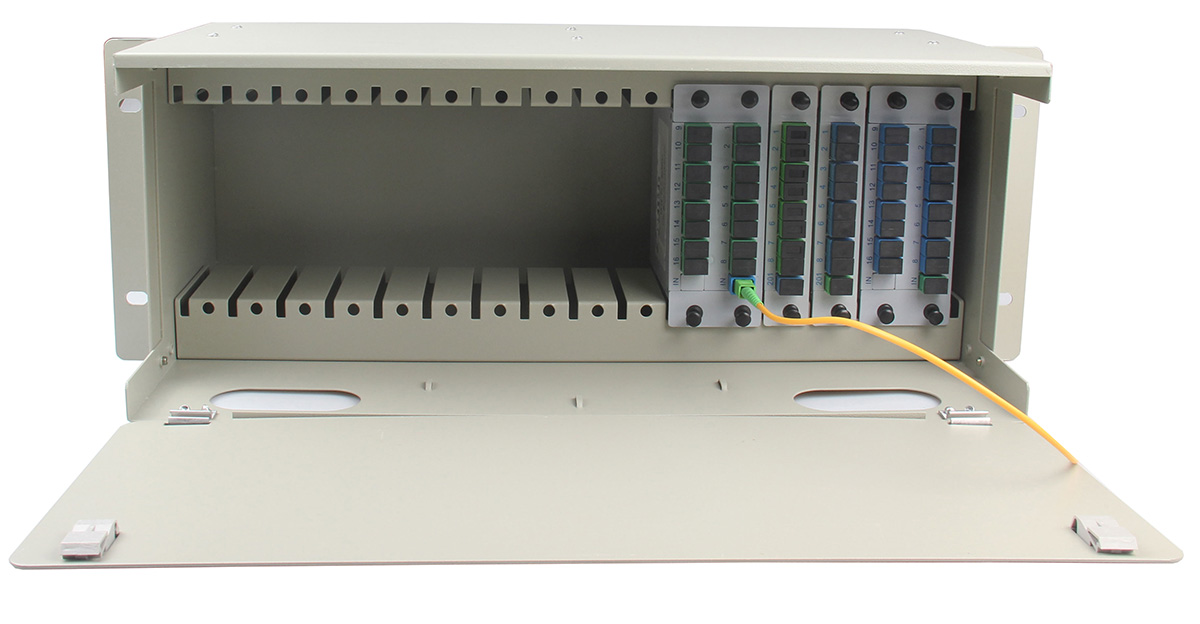

With their compact size, these splitters can be utilized in in-ground and aerial pedestals, as well as rack mount systems. Designed for small spaces, they can be easily placed in formal joint boxes and splice closures to facilitate welding without requiring specially reserved space. Our PLC splitter family features either ribbon or individual fiber output. We provide a complete series of 1xN and 2xN splitter products tailored for specific applications.

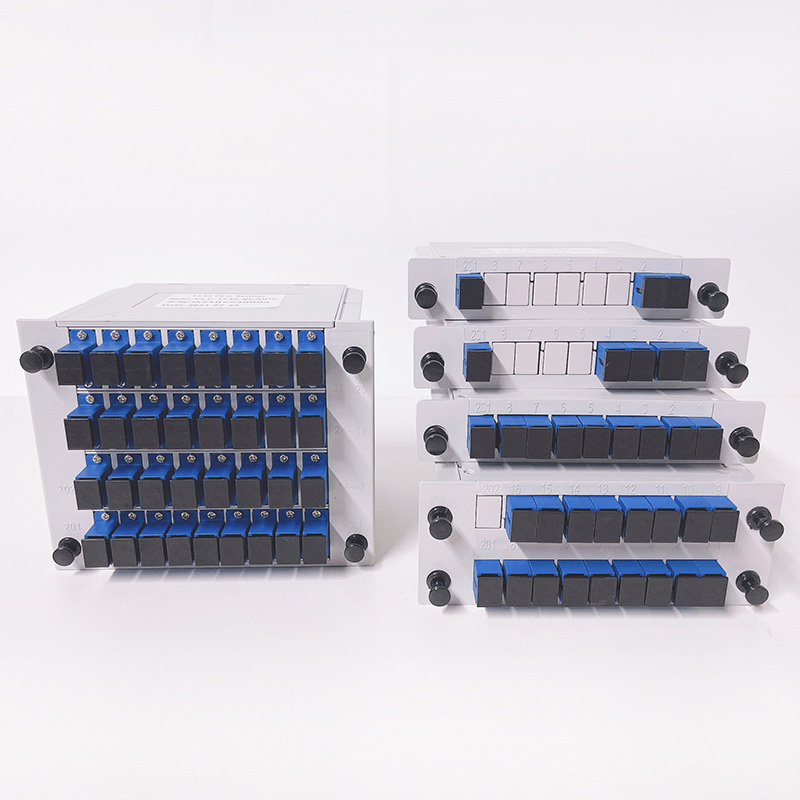

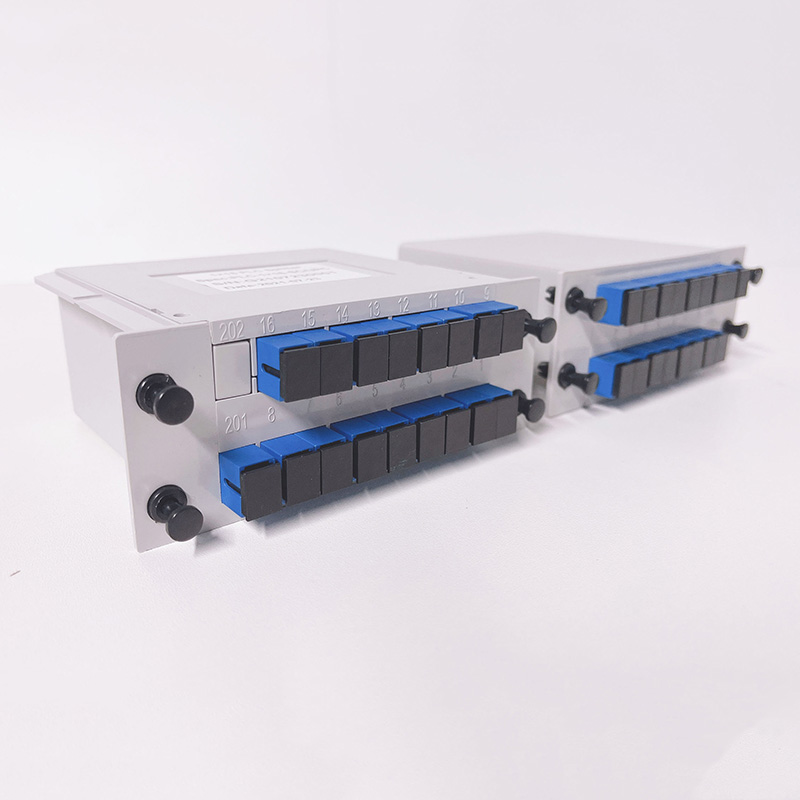

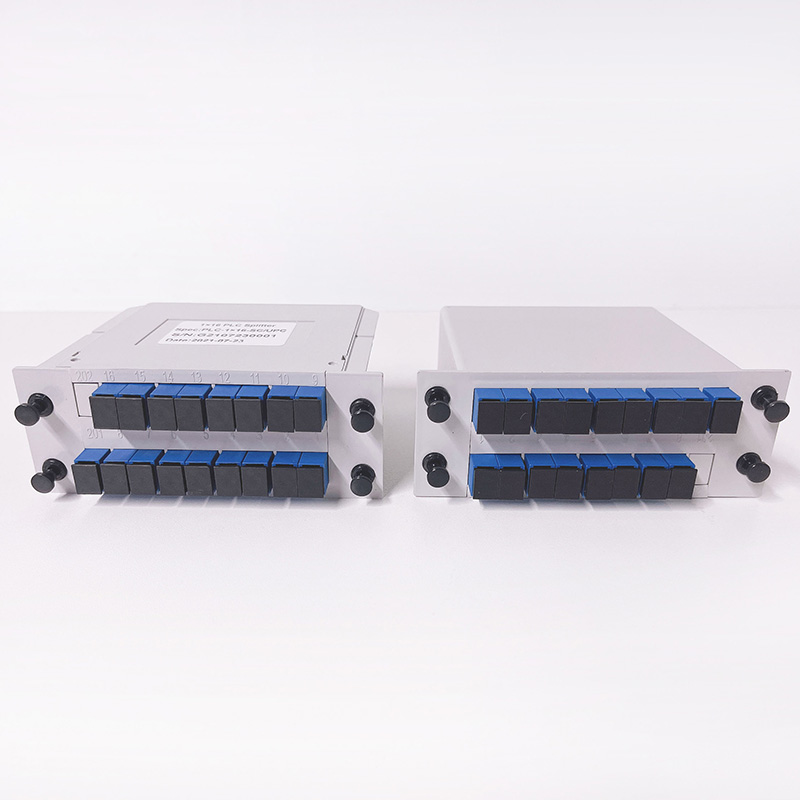

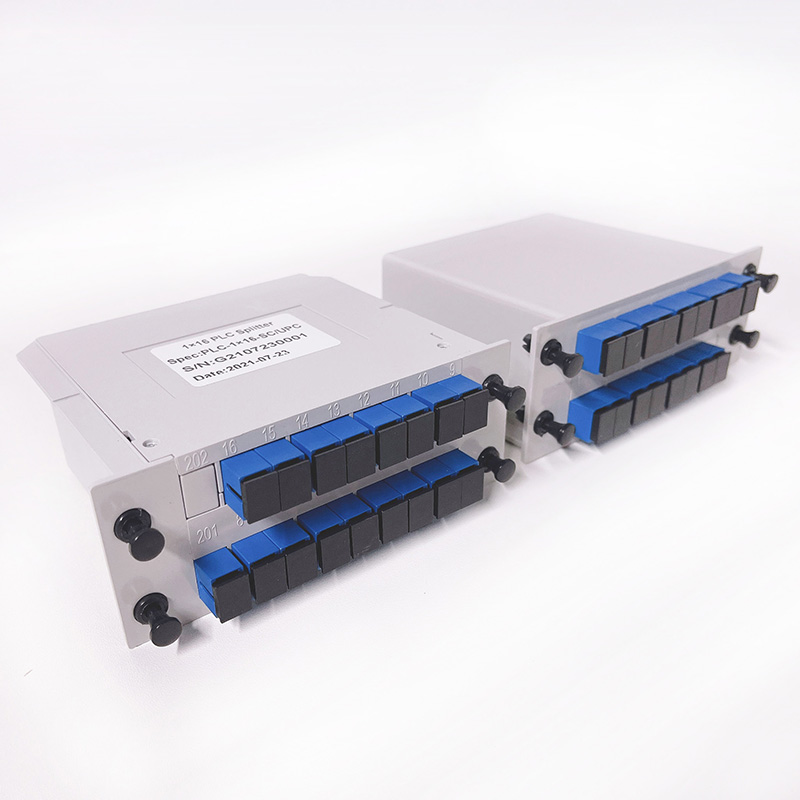

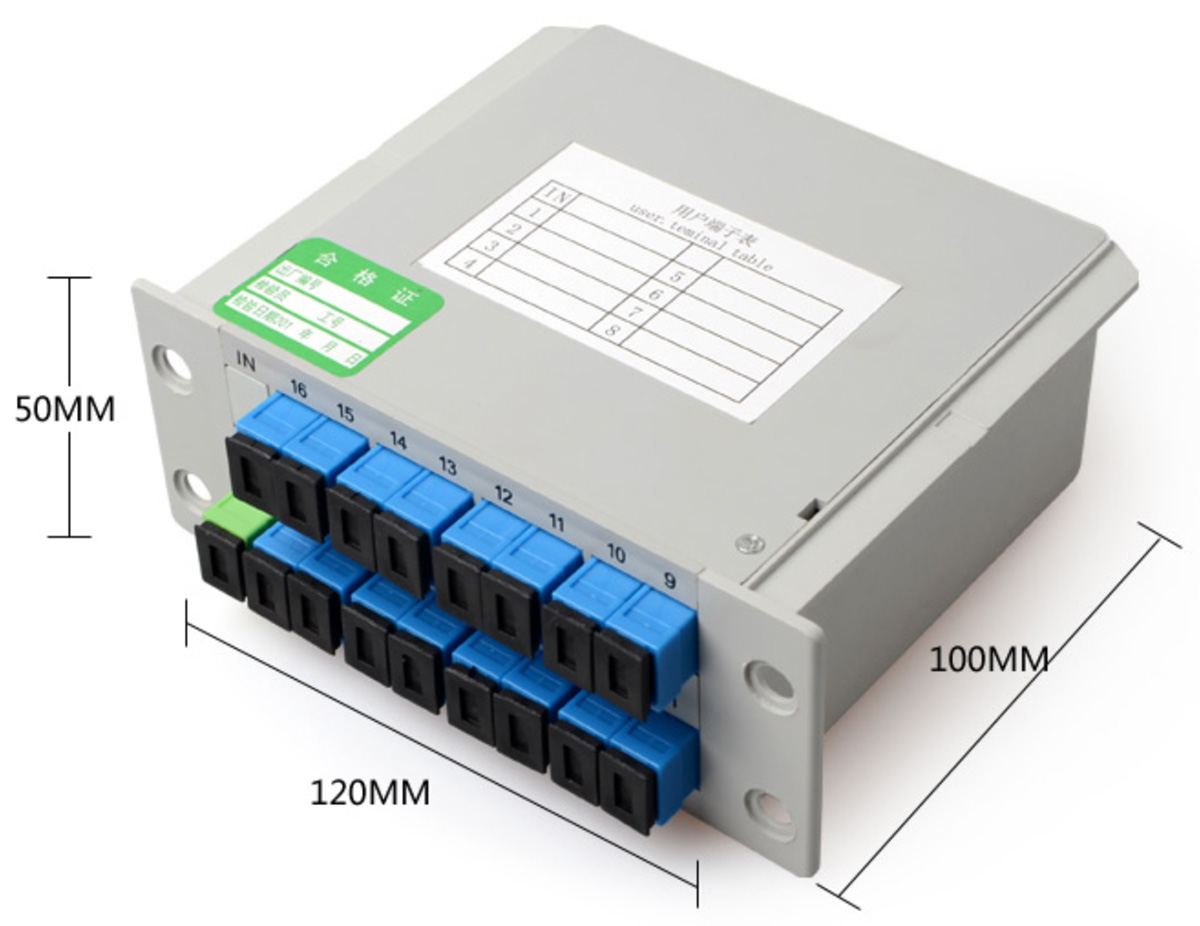

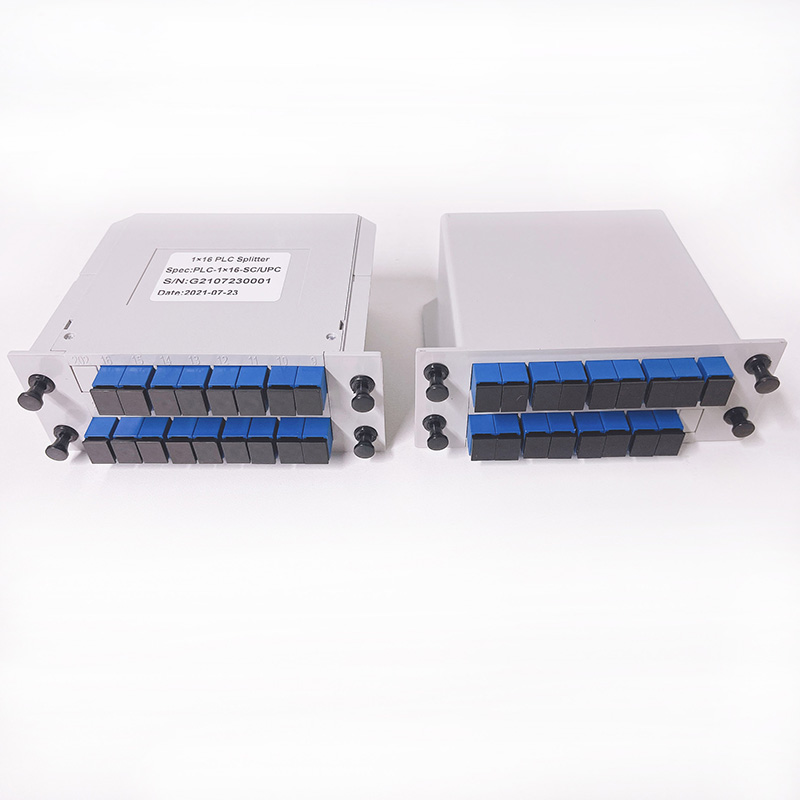

All splitters provide guaranteed optical performance and high reliability that meet GR-1209-CORE and GR-1221-CORE requirements. LGX Box type PLC fiber optical splitters provide a cost-effective and space-saving product suitable for ever-changing networking requirements. Installation is simple using a variety of connector types or fusion splicing.
| Fiber length | 1m or Customized | |||||
| Connector Type | SC, LC, FC or Customized | |||||
| Optical Fiber Type | G657A, G652D or Customized | |||||
| Directivity (dB) Min * | 55 | |||||
| Return Loss (dB) Min * | 55 (50) | |||||
| Power Handling (mW) | 300 | |||||
| Operating Wavelength (nm) | 1260 ~ 1650 | |||||
| Operating Temperature (°C) | -40 ~ +85 | |||||
| Storage Temperature (°C) | -40 ~ +85 | |||||
| Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
| Insertion Loss(dB) Typical | 3.6 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 |
| Insertion Loss (dB) Max | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| PDL(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temp. Dependent Loss (-40~85 ) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Port Configuration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Insertion Loss(dB) Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17.0 | 21.0 |
| Insertion Loss (dB) Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 |
| Loss Uniformity (dB) | 1.0 | 1.4 | 1.5 | 2.0 | 2.5 | 2.5 |
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
| Wavelength Dependent Loss(dB) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1.0 |
| Temp. Dependent Loss(-40~+85°C) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 |
