Suitable for short distances and offers a flexible way to connect within and across racks. Fully upgraded to 200G speed for massive information interaction that is both economical and quality-stable.
Featuring low-power and high-density technology, the AOC cable effectively reduces energy consumption and saves overall energy costs with <4W power consumption per end.
Designed with a 30mm minimum bend radius and lightweight structure, allowing for easier, more flexible cable routing in dense environment racks.
| Part Number | 200G-QSFP-DD-xM |
| Form Factor | QSFP-DD |
| Max Data Rate | 200Gbps |
| Cable Length | Customized |
| Cable Type | OM3 |
| Wavelength | 850nm |
| Minimum Bend Radius | 30mm |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| Power Consumption | <4W |
| Jacket Material | LSZH |
| FEC | Supported |
| Modulation Format | NRZ |
| Protocols | QSFP-DD MSA V5.0, CMIS V4.0 |
| Commercial Temperature Range | 0 to 70°C |

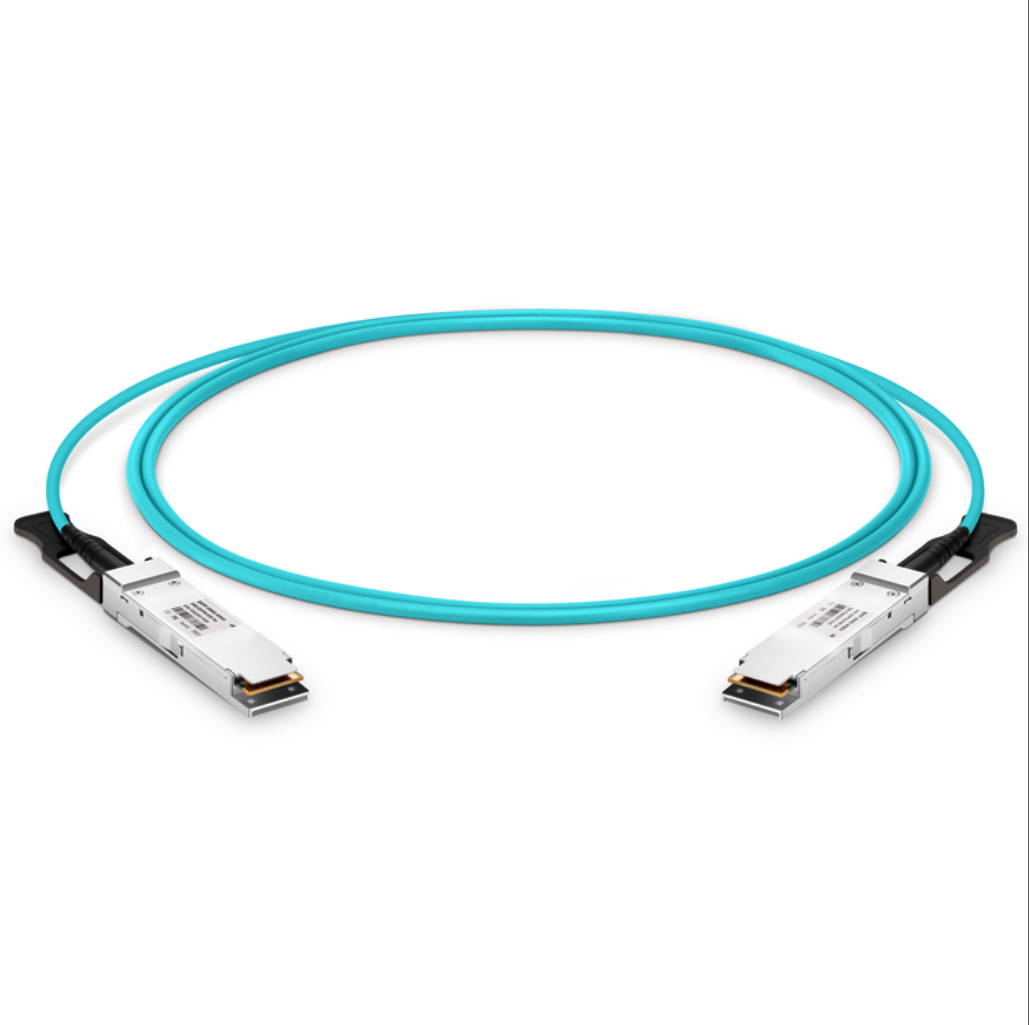

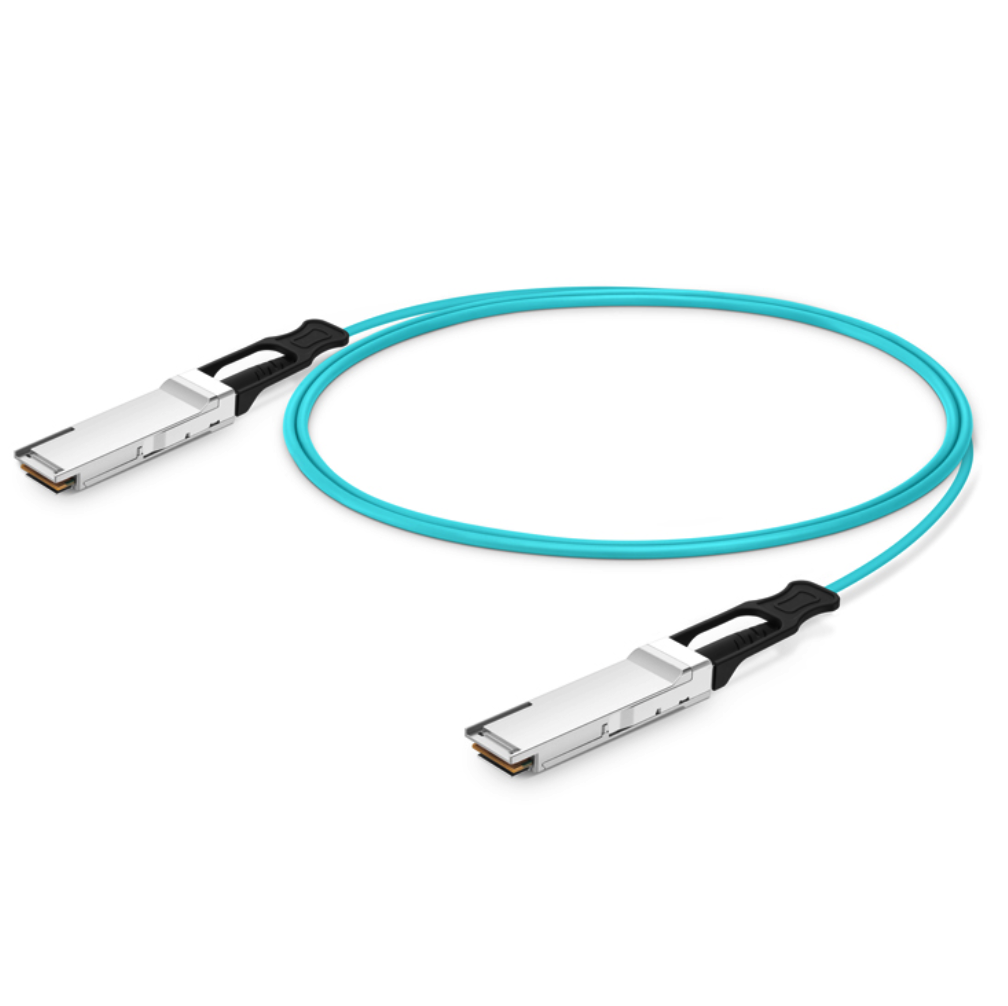

This QSFP-DD Active Optical Cable (AOC) supports a maximum data rate of up to 200Gbps, making it ideal for high-speed data center applications.
The minimum bend radius is 30mm. A smaller bend radius allows the cable to be routed easily through tight spaces within and across server racks without sacrificing performance or damaging the optical fibers.
The power consumption is less than 4W per end. This low-power consumption design helps to minimize overall data center power draw and reduce cooling costs.
It is fully compliant with the QSFP-DD MSA V5.0 and CMIS V4.0 protocols, ensuring reliable compatibility and interoperability with standard network components.
Yes, the cable length is fully customizable to meet your specific networking architecture and cabling configuration needs inside the data center.
The cable uses OM3 multimode fiber with an 850nm wavelength VCSEL transmitter and a PIN receiver, optimized for reliable short-distance transmission.
