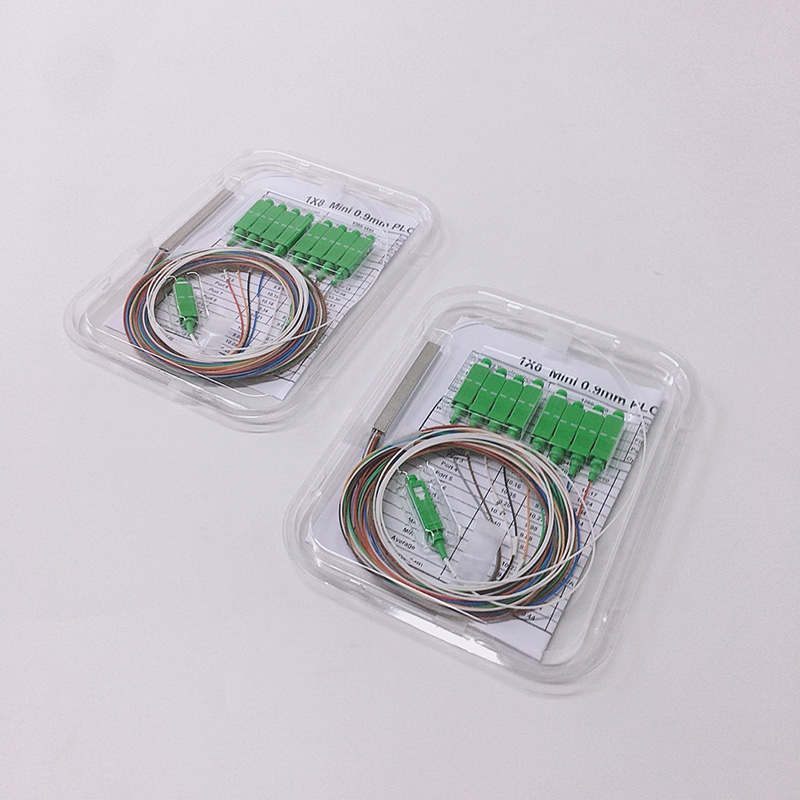

| Data Address | Parameter | Accuracy | Unit |
|---|---|---|---|
| 96-97 | Transceiver Internal Temperature | ±3.0 | °C |
| 100-101 | Laser Bias Current | ±10 | % |
| 100-101 | Tx Output Power | ±3.0 | dBm |
| 100-101 | Rx Input Power | ±3.0 | dBm |
| 100-101 | VCC3 Internal Supply Voltage | ±3.0 | % |
| Specification Parameter | Value |
|---|---|
| Port Configuration | 1*8 |
| Insertion Loss (dB) Max | 10.6 |
| Loss Uniformity (dB) | 1.0 |
| PDL(dB) | 0.25 |
| Wavelength Dependent Loss(dB) | 0.3 |
| Temp. Dependent Loss (-40~85°C) (dB) | 0.4 |
| Parameter | Symbol | Min. | Typical | Max. | Unit | |
|---|---|---|---|---|---|---|
| Storage Temperature | TS | -40 | - | +85 | °C | |
| Case Operating Temperature | SFP+ -10G-LR | TA | 0 | - | 70 | °C |
| SFP+ -10G-LR-I | -40 | - | +85 | °C | ||
| Maximum Supply Voltage | Vcc | -0.5 | - | 4 | V | |
| Relative Humidity | RH | 0 | - | 85 | % | |
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
| Supply Voltage | Vcc | 3.135 | - | 3.465 | V | - |
| Supply Current | Icc | - | - | 430 | mA | - |
| Power Consumption | P | - | - | 1.5 | W | - |
| Transmitter Section: | ||||||
| Input differential impedance | Rin | - | 100 | - | Ω | 1 |
| Tx Input Single Ended DC Voltage Tolerance (Ref VeeT) | V | -0.3 | - | 4 | V | - |
| Differential input voltage swing | Vin,pp | 180 | - | 700 | mV | 2 |
| Transmit Disable Voltage | VD | 2 | - | Vcc | V | 3 |
| Transmit Enable Voltage | VEN | Vee | - | Vee+0.8 | V | - |
| Receiver Section: | ||||||
| Single Ended Output Voltage Tolerance | V | -0.3 | - | 4 | V | - |
| Rx Output Diff Voltage | Vo | 300 | - | 850 | mV | - |
| Rx Output Rise and Fall Time | Tr/Tf | 30 | - | - | ps | 4 |
| LOS Fault | VLOS fault | 2 | - | VccHOST | V | 5 |
| LOS Normal | VLOS norm | Vee | - | Vee+0.8 | V | 5 |
Notes:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Per SFF-8431 Rev 3.0.
3. Into 100 ohms differential termination.
4. 20% ~ 80%.
5. LOS is an open collector output. Should be pulled up with 4.7k – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1. Maximum pull-up voltage is 5.5V.
| Parameter | Symbol | Min. | Typical | Max. | Unit |
|---|---|---|---|---|---|
| TX_Disable Assert Time | t_off | - | - | 10 | us |
| TX_Disable Negate Time | t_on | - | - | 1 | ms |
| Time to Initialize Include Reset of TX_FAULT | t_int | - | - | 300 | ms |
| TX_FAULT from Fault to Assertion | t_fault | - | - | 100 | us |
| TX_Disable Time to Start Reset | t_reset | 10 | - | - | us |
| Receiver Loss of Signal Assert Time | TA,RX_LOS | - | - | 100 | us |
| Receiver Loss of Signal Deassert Time | Td,RX_LOS | - | - | 100 | us |
| Rate-Select Change Time | t_ratesel | - | - | 10 | us |
| Serial ID Clock Time | t_serial-clock | - | - | 100 | kHz |
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
| Transmitter Section: | ||||||
| Center Wavelength | λt | 1290 | 1310 | 1330 | nm | - |
| spectral width | Δλ | - | - | 1 | nm | - |
| Average Optical Power | Pavg | -6 | - | 0 | dBm | 1 |
| Optical Power OMA | Poma | -5.2 | - | - | dBm | - |
| Laser Off Power | Poff | - | - | -30 | dBm | - |
| Extinction Ratio | ER | 3.5 | - | - | dB | - |
| Transmitter Dispersion Penalty | TDP | - | - | 3.2 | dB | 2 |
| Relative Intensity Noise | Rin | - | - | -128 | dB/Hz | 3 |
| Optical Return Loss Tolerance | - | 20 | - | - | dB | - |
| Receiver Section: | ||||||
| Center Wavelength | λr | 1260 | - | 1355 | nm | - |
| Receiver Sensitivity | Sen | - | - | -14.5 | dBm | 4 |
| Stressed Sensitivity (OMA) | SenST | - | - | -10.3 | dBm | 4 |
| Los Assert | LOSA | -25 | - | - | dBm | - |
| Los Dessert | LOSD | - | - | -15 | dBm | - |
| Los Hysteresis | LOSH | 0.5 | - | - | dB | - |
| Overload | Sat | 0 | - | - | dBm | 5 |
| Receiver Reflectance | Rrx | - | - | -12 | dB | - |
Notes:
1. Average power figures are informative only, per IEEE802.3ae.
2. TWDP figure requires the host board to be SFF-8431 compliant. TWDP is calculated using the Matlab code provided in clause 68.6.6.2 of IEEE802.3ae.
3. 12dB reflection.
4. Conditions of stressed receiver tests per IEEE802.3ae. CSRS testing requires the host board to be SFF-8431 compliant.
5. Receiver overload specified in OMA and under the worst comprehensive stressed condition.
| PIN | Name | Function | Notes |
|---|---|---|---|
| 1 | VeeT | Module transmitter ground | 1 |
| 2 | Tx Fault | Module transmitter fault | 2 |
| 3 | Tx Disable | Transmitter Disable; Turns off transmitter laser output | 3 |
| 4 | SDL | 2 wire serial interface data input/output (SDA) | - |
| 5 | SCL | 2 wire serial interface clock input (SCL) | - |
| 6 | MOD-ABS | Module Absent, connect to VeeR or VeeT in the module | 2 |
| 7 | RS0 | Rate select0, optionally control SFP+ receiver. When high, input data rate >4.5Gb/s; when low, input data rate <=4.5Gb/s | - |
| 8 | LOS | Receiver Loss of Signal Indication | 4 |
| 9 | RS1 | Rate select0, optionally control SFP+ transmitter. When high, input data rate >4.5Gb/s; when low, input data rate <=4.5Gb/s | - |
| 10 | VeeR | Module receiver ground | 1 |
| 11 | VeeR | Module receiver ground | 1 |
| 12 | RD- | Receiver inverted data output | - |
| 13 | RD+ | Receiver non-inverted data output | - |
| 14 | VeeR | Module receiver ground | 1 |
| 15 | VccR | Module receiver 3.3V supply | - |
| 16 | VccT | Module transmitter 3.3V supply | - |
| 17 | VeeT | Module transmitter ground | 1 |
| 18 | TD+ | Transmitter inverted data output | - |
| 19 | TD- | Transmitter non-inverted data output | - |
| 20 | VeeT | Module transmitter ground | 1 |
Note:
1. The module ground pins shall be isolated from the module case.
2. This pin is an open collector/drain output pin and shall be pulled up with 4.7K-10Kohms to Host_Vcc on the host board.
3. This pin shall be pulled up with 4.7K-10Kohms to VccT in the module.
4. This pin is an open collector/drain output pin and shall be pulled up with 4.7K-10Kohms to Host_Vcc on the host board.
The SFP modules implement the 2-wire serial communication protocol as defined in the SFP-8472. The serial ID information of the SFP modules and Digital Diagnostic Monitor parameters can be accessed through the I2C interface at address A0h and A2h. The memory is mapped in Table 1. Detailed ID information (A0h) is listed in Table 2, and the DDM specification at address A2h. For more details of the memory map and byte definitions, please refer to the SFF-8472, "Digital Diagnostic Monitoring Interface for Optical Transceivers". The DDM parameters have been internally calibrated.
| Data Address | Length (Byte) | Name of Length | Description and Contents |
|---|---|---|---|
| Base ID Fields | |||
| 0 | 1 | Identifier | Type of Serial transceiver (03h=SFP) |
| 1 | 1 | Reserved | Extended identifier of type serial transceiver (04h) |
| 2 | 1 | Connector | Code of optical connector type (07=LC) |
| 3-10 | 8 | Transceiver | 10G Base-LR |
| 11 | 1 | Encoding | 64B/66B |
| 12 | 1 | BR, Nominal | Nominal baud rate, unit of 100Mbps |
| 13-14 | 2 | Reserved | (0000h) |
| 15 | 1 | Length(9um) | Link length supported for 9/125um fiber, units of 100m |
| 16 | 1 | Length(50um) | Link length supported for 50/125um fiber, units of 10m |
| 17 | 1 | Length(62.5um) | Link length supported for 62.5/125um fiber, units of 10m |
| 18 | 1 | Length(Copper) | Link length supported for copper, units of meters |
| 19 | 1 | Reserved | - |
| 20-35 | 16 | Vendor Name | SFP vendor name |
| 36 | 1 | Reserved | - |
| 37-39 | 3 | Vendor OUI | SFP transceiver vendor OUI ID |
| 40-55 | 16 | Vendor PN | Part Number: “SFP+ -10G-LR” (ASCII) |
| 56-59 | 4 | Vendor rev | Revision level for part number |
| 60-62 | 3 | Reserved | - |
| 63 | 1 | CCID | Least significant byte of sum of data in address 0-62 |
| Extended ID Fields | |||
| 64-65 | 2 | Option | Indicates which optical SFP signals are implemented (001Ah = LOS, TX_FAULT, TX_DISABLE all supported) |
| 66 | 1 | BR, max | Upper bit rate margin, units of % |
| 67 | 1 | BR, min | Lower bit rate margin, units of % |
| 68-83 | 16 | Vendor SN | Serial number (ASCII) |
| 84-91 | 8 | Date code | Manufacturing date code |
| 92-94 | 3 | Reserved | - |
| 95 | 1 | CCEX | Check code for the extended ID Fields (addresses 64 to 94) |
| Vendor Specific ID Fields | |||
| 96-127 | 32 | Readable | Vendor specific date, read only |
| 128-255 | 128 | Reserved | Reserved for SFF-8079 |
The SFP+ -10G-LR complies with international Electromagnetic Compatibility (EMC) and international safety requirements and standards (see details in Table following).
| Feature | Standard | Performance |
|---|---|---|
| Electrostatic Discharge (ESD) to the Electrical Pins | MIL-STD-883E Method 3015.7 | Class 1(>1000 V) |
| Electrostatic Discharge (ESD) to the Duplex LC Receptacle | IEC 61000-4-2 GR-1089-CORE | Compatible with standards |
| Electromagnetic Interference (EMI) | FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B | Compatible with standards |
| Laser Eye Safety | FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC) 60825-1,2 | Compatible with Class 1 laser product. |
Note: The above parameter is for splitter with connector.

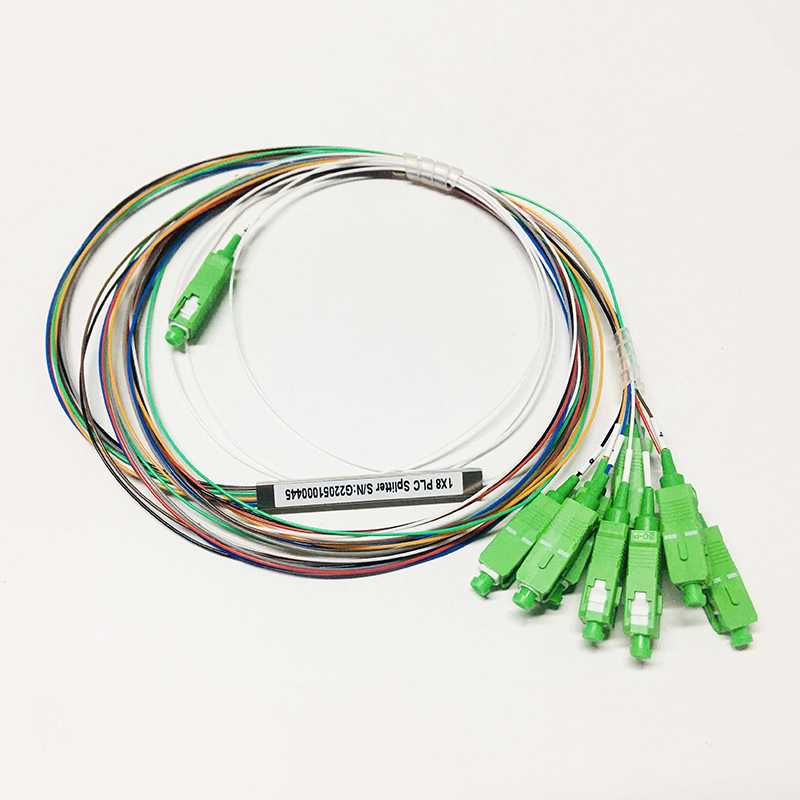

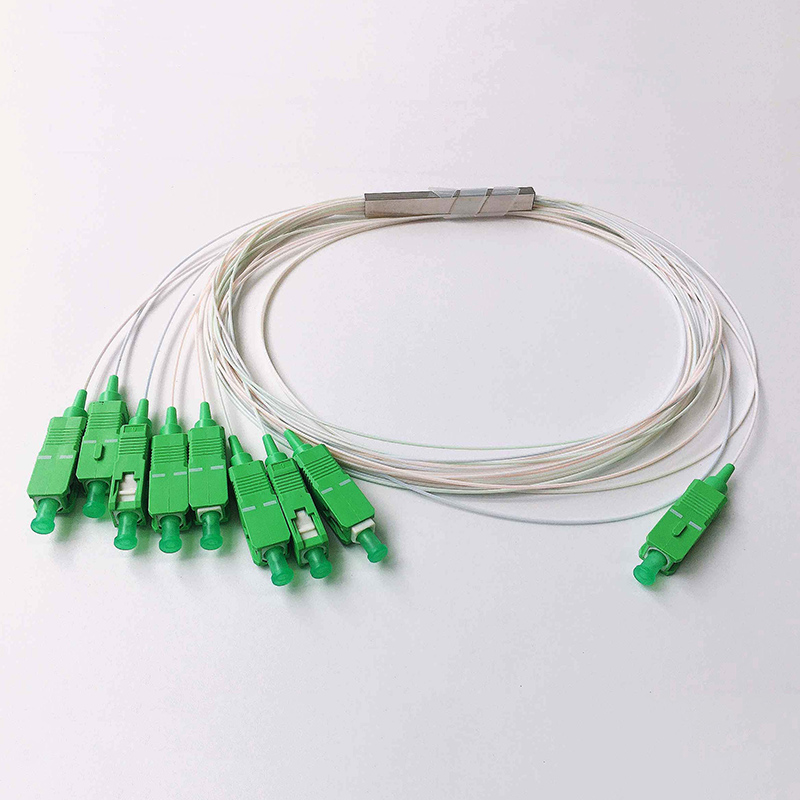

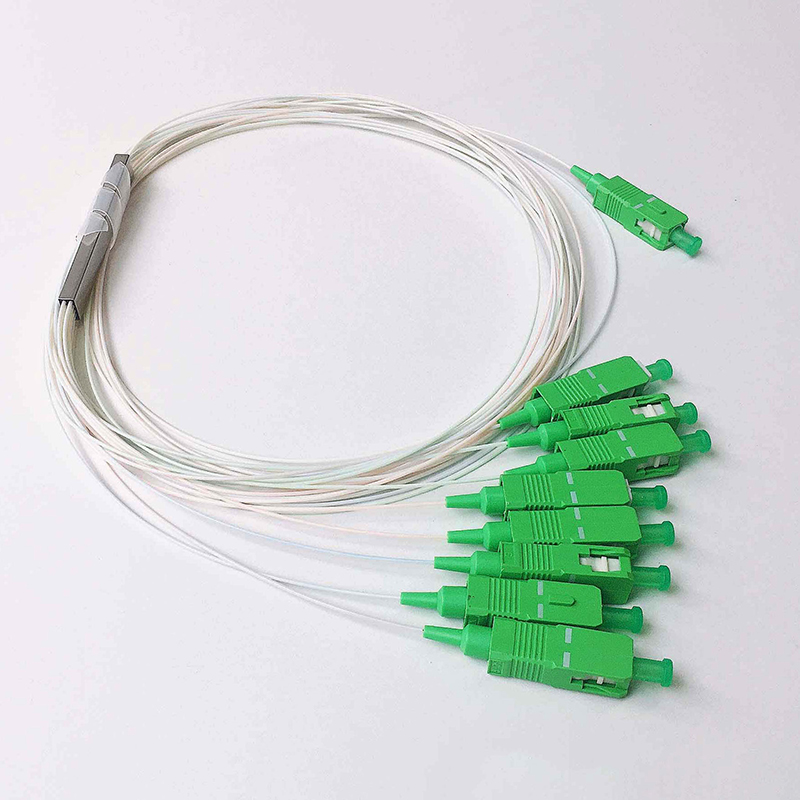

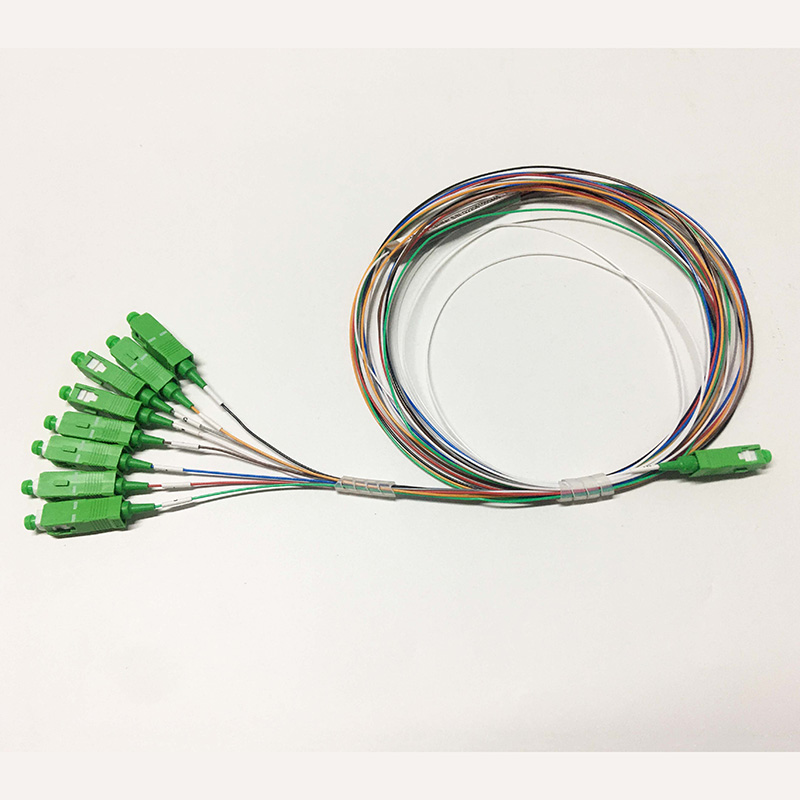

| Port Configuration | 1*8 Value |
|---|---|
| Insertion Loss (dB) Max | 10.8 |
| Loss Uniformity (dB) | 1.0 |
| PDL(dB) | 0.2 |
| Wavelength Dependent Loss (dB) | 0.3 |
| Temp. Dependent Loss (-40~85°C ) (dB) | 0.4 |
Note: The above parameter is for splitter without connector.
| Parameter | Specification / Value |
|---|---|
| Fiber length | 1.0m or Customized |
| Connector Type | SC, LC, FC or Customized |
| Optical Fiber Type | G652D, G657A1 or Customized |
| Directivity (dB) Min * | 55 |
| Return Loss (dB) Min * | 55 (50) |
| Power Handling (mW) | 300 |
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Operating Temperature(°C) | -40 ~ +85 |
| Storage Temperature(°C) | -40 ~ +85 |
