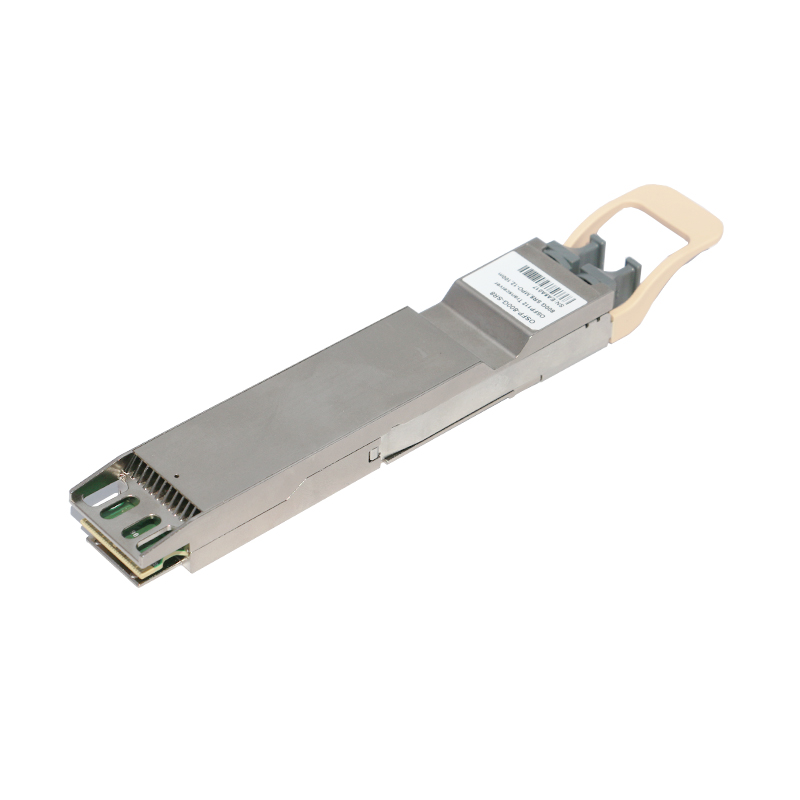

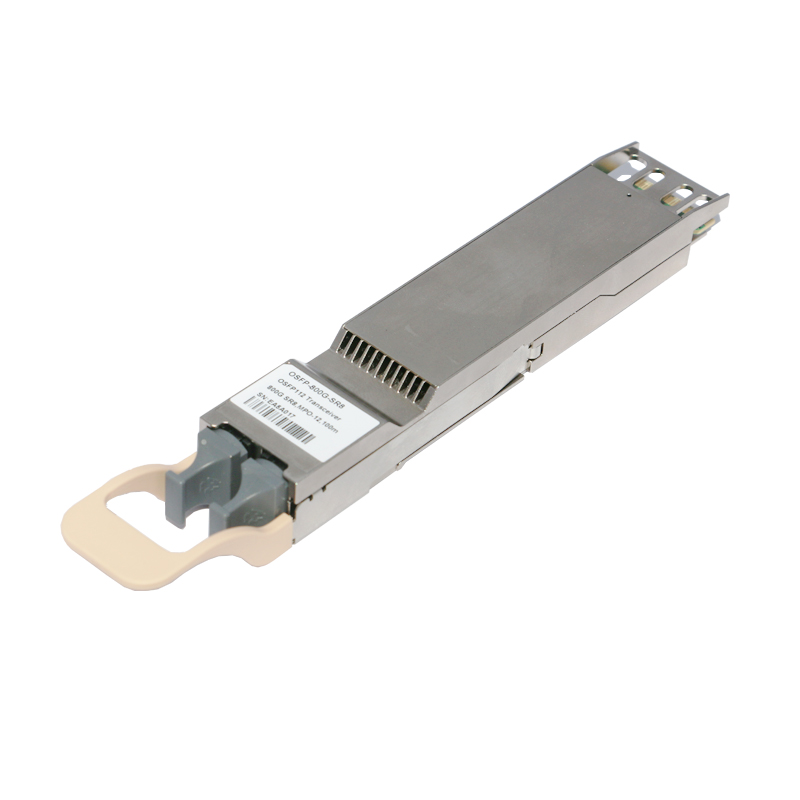

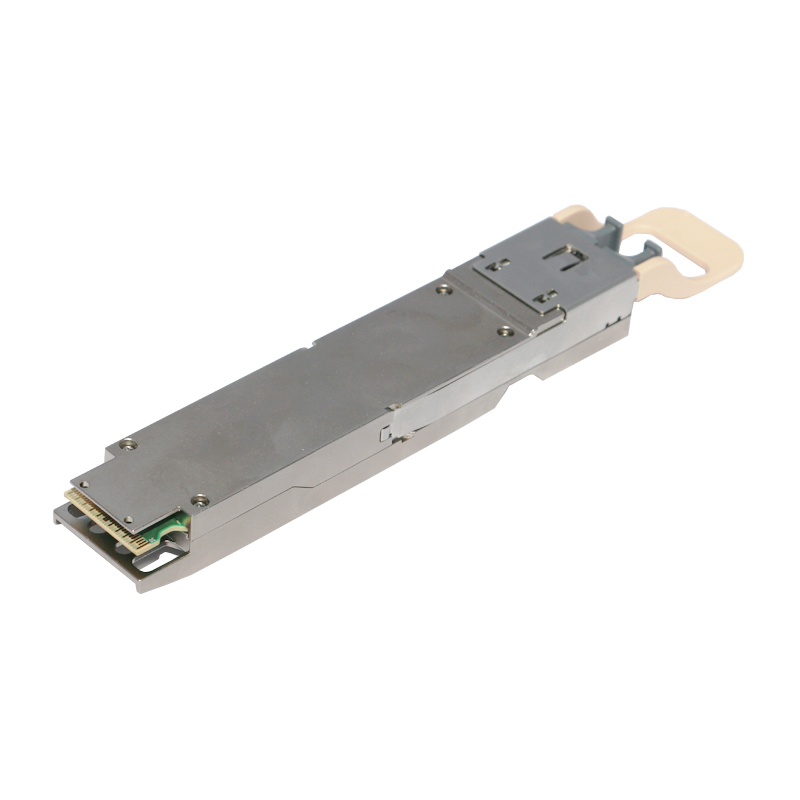

The 800Gbase high speed fiber optic module is a high-bandwidth transceiver for short-reach (up to 100m) multimode fiber applications, primarily used in data centers, high-performance computing (HPC), and Artificial Intelligence (AI) environments for applications requiring low-latency connections. It enables switch-to-switch, switch-to-server, and network adapter connections within a 51.2T network architecture, supporting both Ethernet and InfiniBand protocols.

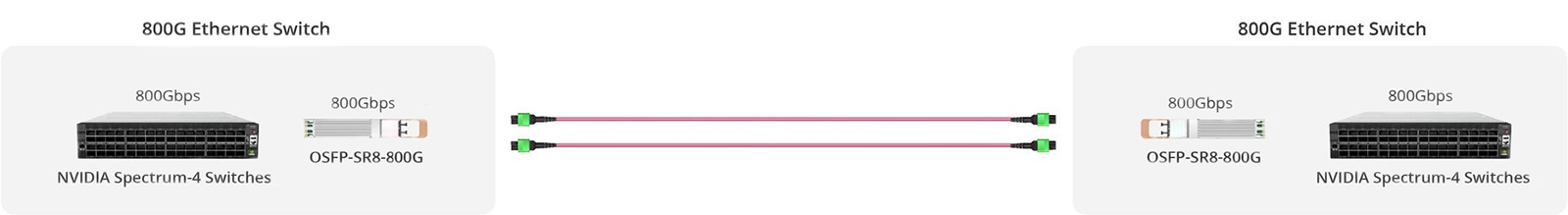

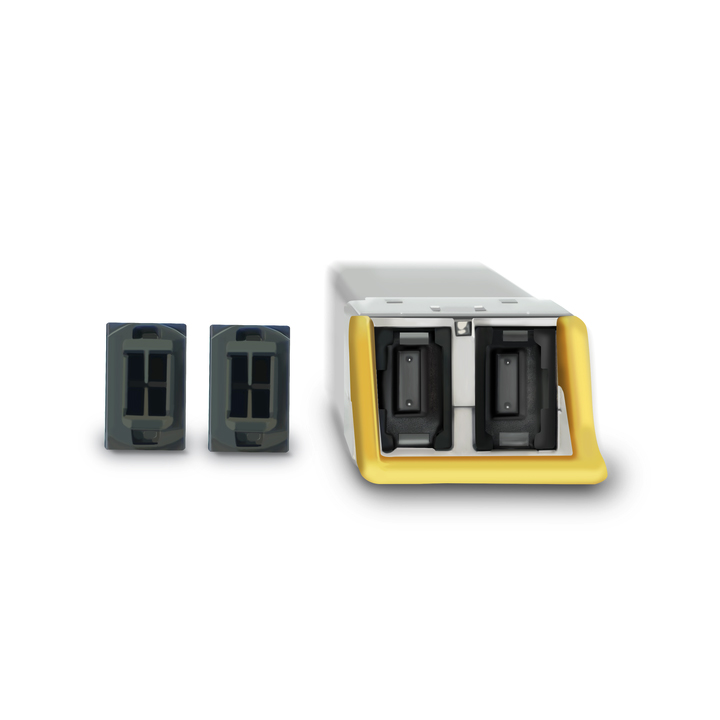

Designed for 800GBASE Ethernet throughput up to 50m link lengths over OM4 multimode fiber (MMF) using a wavelength of 850nm via dual MTP/MPO-12 APC connectors, this transceiver is compliant with IEEE P802.3ck and OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. The twin-port OSFP finned-top transceiver is utilized in Ethernet air-cooled switches. Featured with low latency, low power, and reliability, it can link upward in spine-leaf architectures for switch-to-switch applications, downward for top-of-rack switch links to Ethernet network adapters, and/or to BlueField-3 DPUs in compute servers and storage subsystems. It is the ideal solution for HPC computing, AI, and cloud data centers.
