The OSFP-800G-DR8 fiber optic transceiver application for the OSFP transceiver is to provide ultra-high-speed, low-latency connectivity in data centers and High-Performance Computing (HPC) environments, enabling 800 Gigabit Ethernet (800GE) and InfiniBand NDR (Next-gen Data Rate) connections up to 500 meters on single-mode fiber.
The OSFP-800G-DR8 fiber optic transceivers support breakout connections for 2x400G, 4x200G, or 8x100G links and are compatible with devices like switches, ConnectX-7 adapters, and BlueField-3 DPUs. Designed for 800GBASE Ethernet throughput up to 500m link lengths over OS2 single-mode fiber (SMF) using a wavelength of 1310nm via dual MTP/MPO-12 APC connectors.
This OSFP-800G-DR8 fiber optic transceiver is compliant with IEEE 802.3ck, IEEE 802.3cu and OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.
This twin-port OSFP-800G-DR8 OSFP finned-top transceiver is used in Ethernet air-cooled switches. Featured with low latency, low power, and reliability, it can link upward in spine-leaf architectures for switch-to-switch applications, downward for top-of-rack switch links to Ethernet network adapters, and/or to BlueField-3 DPUs in compute servers and storage subsystems. It is the ideal solution for HPC computing, AI, and cloud data centers.

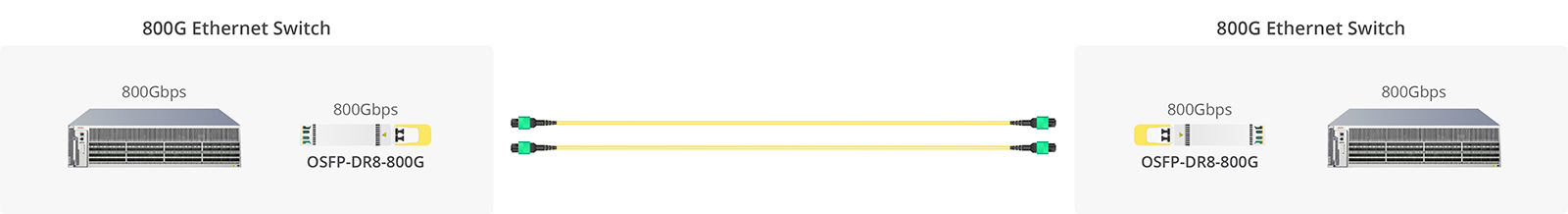

Provides the necessary bandwidth for interconnecting switches, servers, and other network infrastructure within large-scale data centers to support cloud computing and large-scale data transmission.
HPC clusters require massive data transmission speeds for large-scale computations. This transceiver facilitates these connections for supercomputers and other HPC systems.
Supports both Ethernet and InfiniBand protocols, offering versatility for different networking needs within the data center.

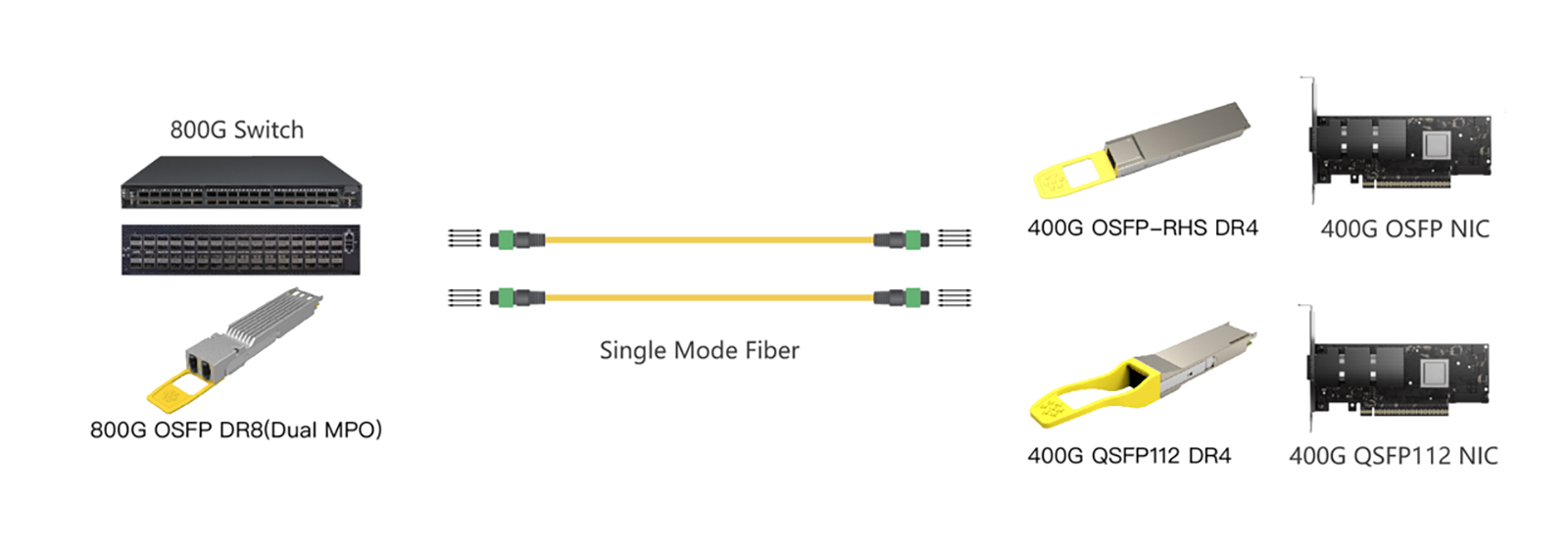

The DR8 standard allows for the module to function as a single 800G link or to be "broken out" into multiple lower-speed links (2x400G, 4x200G, or 8x100G), connecting to various devices like NICs or DPUs.
Utilizing single-mode fiber, the DR8 standard supports connections up to 500 meters, providing robust connectivity over substantial distances within a facility.
| P/N | OSFP-800G-DR8-SM1310 |
| Form Factor | Twin-port OSFP Finned Top |
| Max Data Rate | 850Gbps (8x 106.25Gbps) |
| Wavelength | 1310nm |
| Max Cable Distance | 500m |
| Connector type | Dual MTP/MPO-12 APC |
| Fiber type | SMF |
| Transmitter Type | EML |
| Receiver Type | PIN |
| TX Power | -2.9~4.0dBm |
| Minimum Receiver Power | -5.9dBm |
| Power Budget | 3dB |
| Receiver Overload | 4dBm |
| Max Power Consumption | 16.5W |
| Extinction Ratio | >3.5dB |
| Modulation (Electrical) | 8x100G-PAM4 |
| Modulation (Optical) | Dual 4x100G-PAM4 |
| Packaging Technology | COB (Chip on Board) Packaging |
| Modulation Format | PAM4 |
| CDR (Clock and Data Recovery) | TX & RX Built-in DSP |
| Inbuilt FEC | No |
| Protocols | OSFP MSA HW Rev 4.1, CMIS Rev 5.0, IEEE 802.3cu-2021, IEEE P802.3ck D2.2 |
| Warranty | 5 Years |
The transceiver supports link lengths up to 500 meters over OS2 single-mode fiber (SMF) using a 1310nm wavelength.

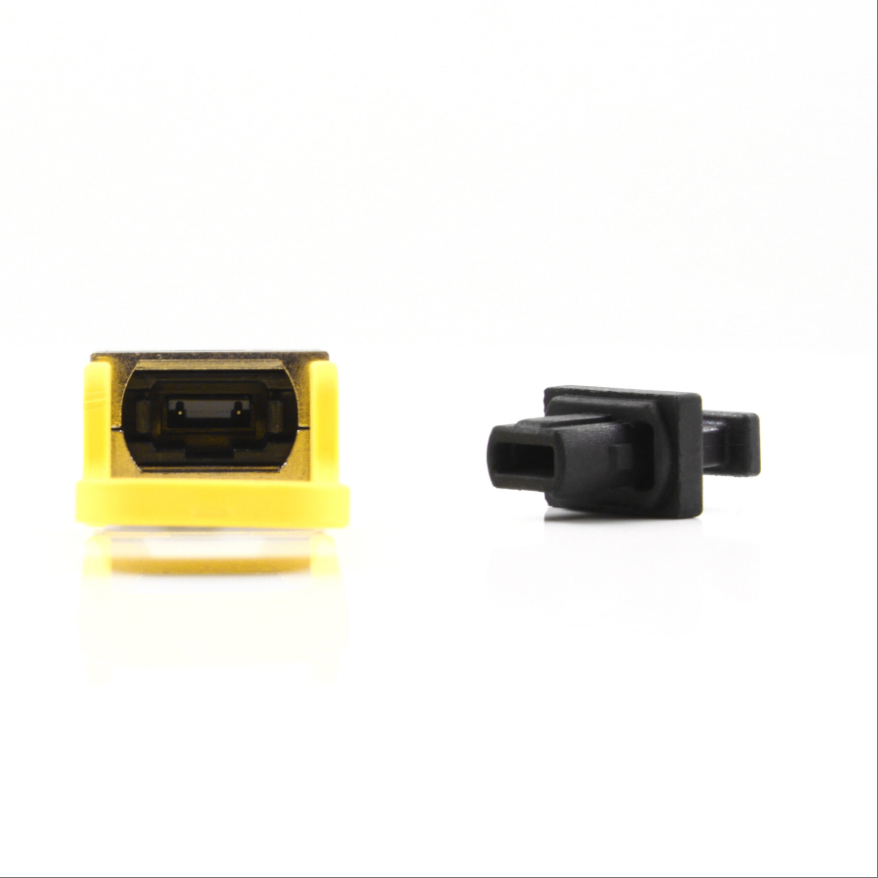

It features dual MTP/MPO-12 APC connectors for secure and high-density fiber connections.
Yes, it supports breakout configurations of 2x400G, 4x200G, or 8x100G links, enabling connectivity to a variety of network interface cards (NICs) and DPUs.
It is fully compliant with IEEE 802.3ck, IEEE 802.3cu, OSFP MSA HW Rev 4.1, and CMIS Rev 5.0 standards.
It is ideal for high-performance data centers, AI computing infrastructures, and High-Performance Computing (HPC) environments using air-cooled switches.
The maximum power consumption of the OSFP-800G-DR8 module is rated at 16.5W.
