Key Features & Performance
⚙
Steel-wire parallel member, filler protect tube fiber steel tape armored.
⚡
Excellent mechanical and environmental performance.
📦
Compact structure, light weight can be installed conveniently and operated simply.
✓
Other fiber are available option: Single mode (G652D, G657A, G657B) and Multimode (OM1, Om2, Om3, OM4, OM5)
🔢
Fiber count: 2fo ~ 12fo
📐
Diameter option: 6.0mm, 7.0mm (ex-work), 8.0mm
Cable Structure Details
⚙

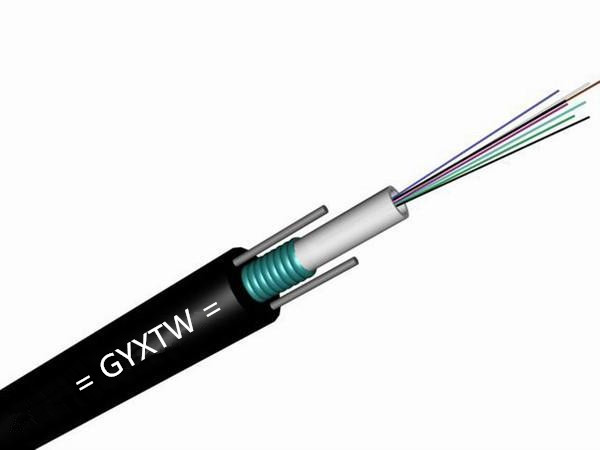

GYXTW fiber optic cable, the fibers 250μm, are positioned in a loose tube made of a high modulus plastic.
⚙
The tubes are filled with a water-resistant filling compound.
⚙
The tube is wrapped with a layer of PSP longitudinally.
⚙
Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.
⚙
Two parallel steel wires are placed at the two sides of the steel tape.
⚙
The cable is completed with a polyethylene (PE) sheath, black color, to protect the fiber from UV.
Frequently Asked Questions
What are the primary installation methods for GYXTW fiber optic cable?

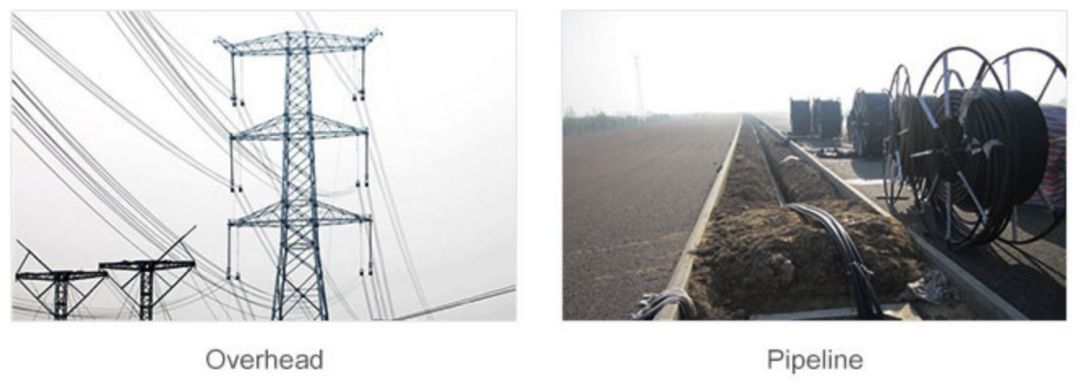

GYXTW fiber optic cable is highly versatile and suitable for both aerial installation and pipeline (duct) laying methods in outdoor distribution networks.
What is the operating temperature range for the GYXTW cable?
The cable can safely operate within a wide temperature range of -40°C to +70°C. Its installation temperature ranges from -20°C to +60°C.
How does GYXTW protect against moisture and water ingress?
It employs a dual protection design: the central loose tubes are filled with a water-resistant filling compound, and additional water-blocking material is applied between the PSP (Plastic-coated Steel Tape) armor and the loose tube.
What types of fiber cores are available in GYXTW cable?
The GYXTW cable offers single-mode options (G652D, G657A, G657B) and multimode options (OM1, OM2, OM3, OM4, OM5) with fiber counts ranging from 2 to 24 fibers.
What is the minimum bending radius of the GYXTW cable?
For long-term conditions, the minimum bending radius is 10D (where D is the cable diameter), and for short-term conditions, it is 20D.
How does the PSP armor and parallel steel wire construct help the cable?
The PSP (Plastic-coated Steel Tape) longitudinal wrap acts as a robust moisture barrier and provides crush resistance. The two parallel steel wires placed on both sides of the steel tape offer excellent tensile strength (up to 1500N short term).
