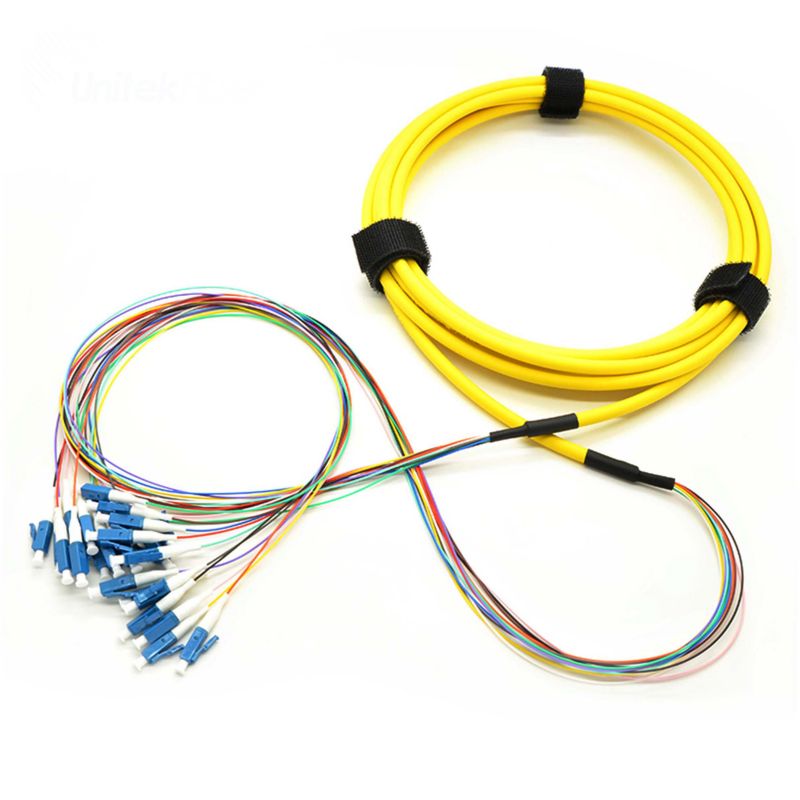

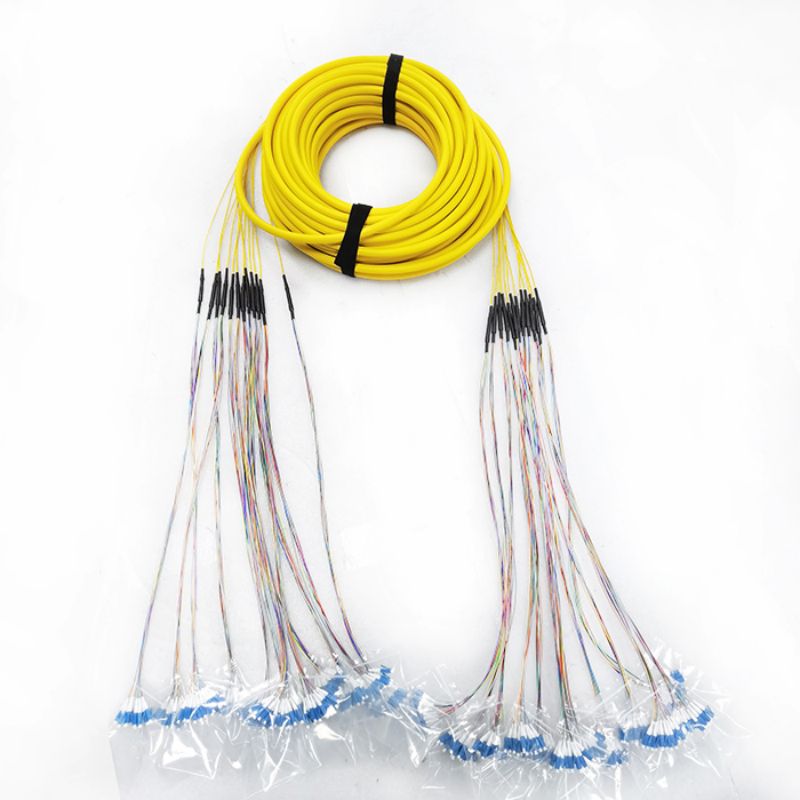

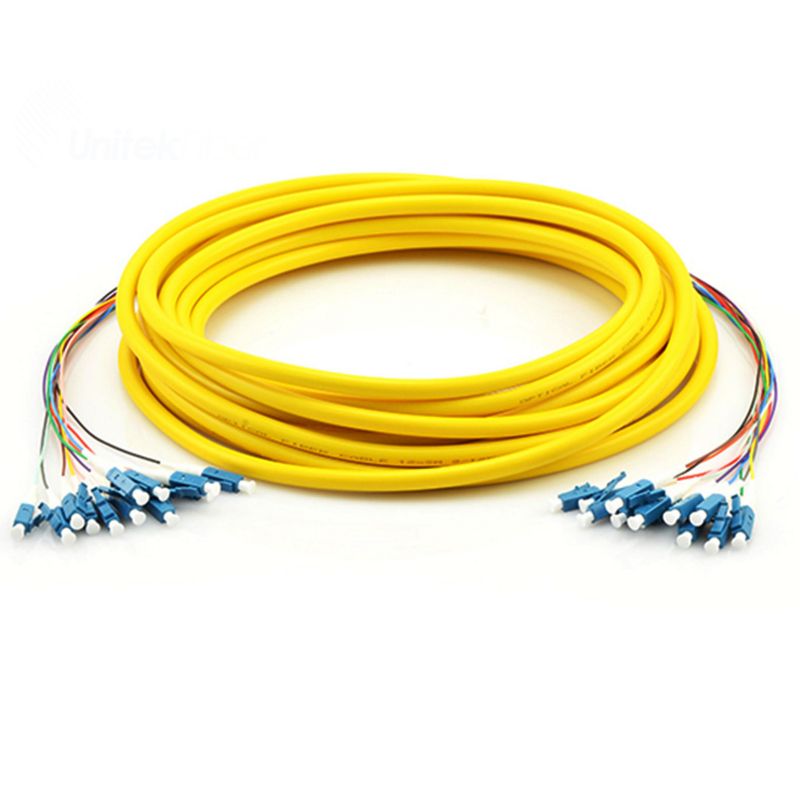

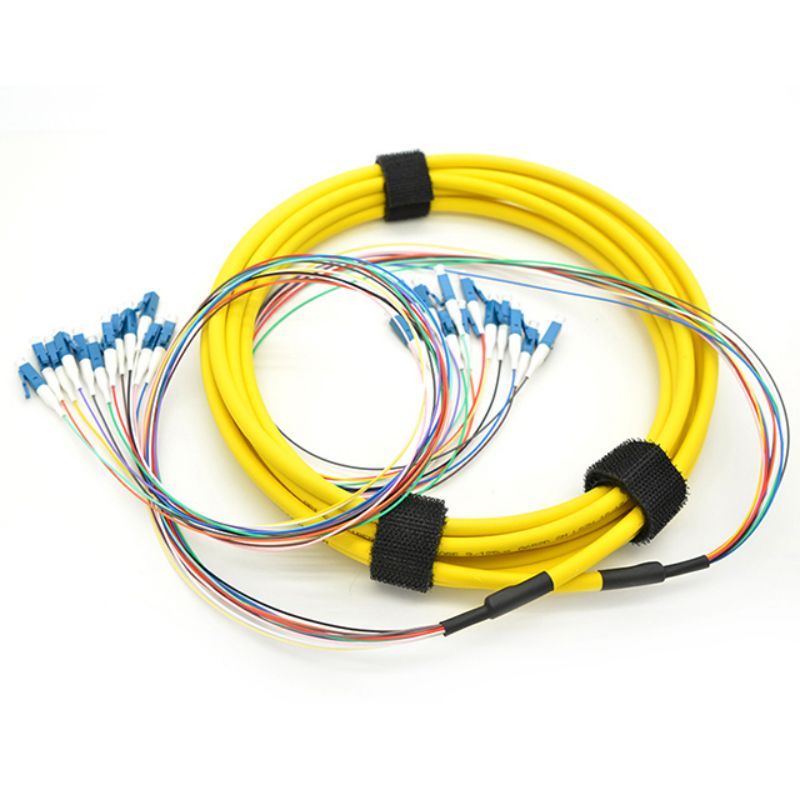

• Come with LC/UPC connector • Low insertion loss • High return loss • 100% pre-terminated and tested in factory to ensure transfer performance • Rapid configuration and networking, reduce installation time • Supports 40G and 100G network applications Jacket material: PVC, LSZH, OFNR, OFNP • Available in OM1, OM2, OM3, OM4, G652D, G657 fiber glass • Supports up to 4F, 8F, 12F, 24F, 48F, 72F, 96F, 144F, or more • OEM service is avaibable • Easy installation • Environmentally stable • Rohs compliant.
Send Inquiry

Product Description

Product Overview
  • The Fiber Optical Pigtails are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration.
  • The Fiber optic pigtail is a fiber optic cable terminated with a factory-installed connector on one end, leaving the other end terminated. Hence the connector side can be linked to equipment and the other side melted with optical fiber cables.
  • The fiber optic pigtail are utilized to terminate fiber optic cables via fusion or mechanical splicing. High-quality pigtail cables, coupled with correct fusion splicing practices offer the best performance possible for fiber optic cable terminations.
  • The fiber optic pigtails are usually found in fiber optic management equipment like ODF, fiber terminal box and distribution box.
  • A fiber pigtail is a single, short, usually tight-buffered fiber optic cable with a factory-installed connector on one end, and un-terminated fiber on the other end.
  • The SC/APC connector is a fiber-optic connector with a threaded body, which was designed for use in high-vibration environments. It is commonly used with both single-mode optical fiber and polarization-maintaining optical fiber.
  • SC/APC fiber optic pigtail is one of common type fiber optic pigtail, it come with one side of SC/APC connector only.
  • The termination connector can be Single mode UPC, APC or Mutlimode PC.
  • Normally, the cable use single mode G652D, and also have other choose use single mode G657A1, G657A2, G657B3 or Multimode OM1, OM2, OM3, OM4, OM5.
Technical Specifications
Type Standard
Connector type SC/APC
Fiber Type 9/125 Single mode: G652D, G657A1, G657A2, G657B3
Cable Type Simplex, Mutli-fibers, ...
Cable Diameter Φ0.9mm, Φ0.6mm, Customized
Cable outsheath PVC, LSZH, OFNR
Polishing Manner APC
Insertion Loss ≤ 0.3dB
Return Loss APC ≥ 55dB
Repeatability ±0.1dB
Operating temperature -40°C to 85°C
Key Features
  • Come with LC/UPC connector
  • Low insertion loss
  • High return loss
  • 100% pre-terminated and tested in factory to ensure transfer performance
  • Rapid configuration and networking, reduce installation time
  • Supports 40G and 100G network applications Jacket material: PVC, LSZH, OFNR, OFNP
  • Available in OM1, OM2, OM3, OM4, G652D, G657 fiber glass
  • Supports up to 4F, 8F, 12F, 24F, 48F, 72F, 96F, 144F, or more
  • OEM service is available
  • Easy installation
  • Environmentally stable
  • Rohs compliant.
Applications
  • Fiber optic patch panel and fiber optic distribution frame
  • Passive fiber optic systems
  • Fiber Optic Telecommunications
  • LAN (Local Area Network)
  • FTTH (Fiber To The Home)
  • CATV & CCTV
  • High speed transmission systems
  • Fiber optic sensing
  • Fiber optic testing
  • Metro
  • Data Centers, ..
Product Gallery

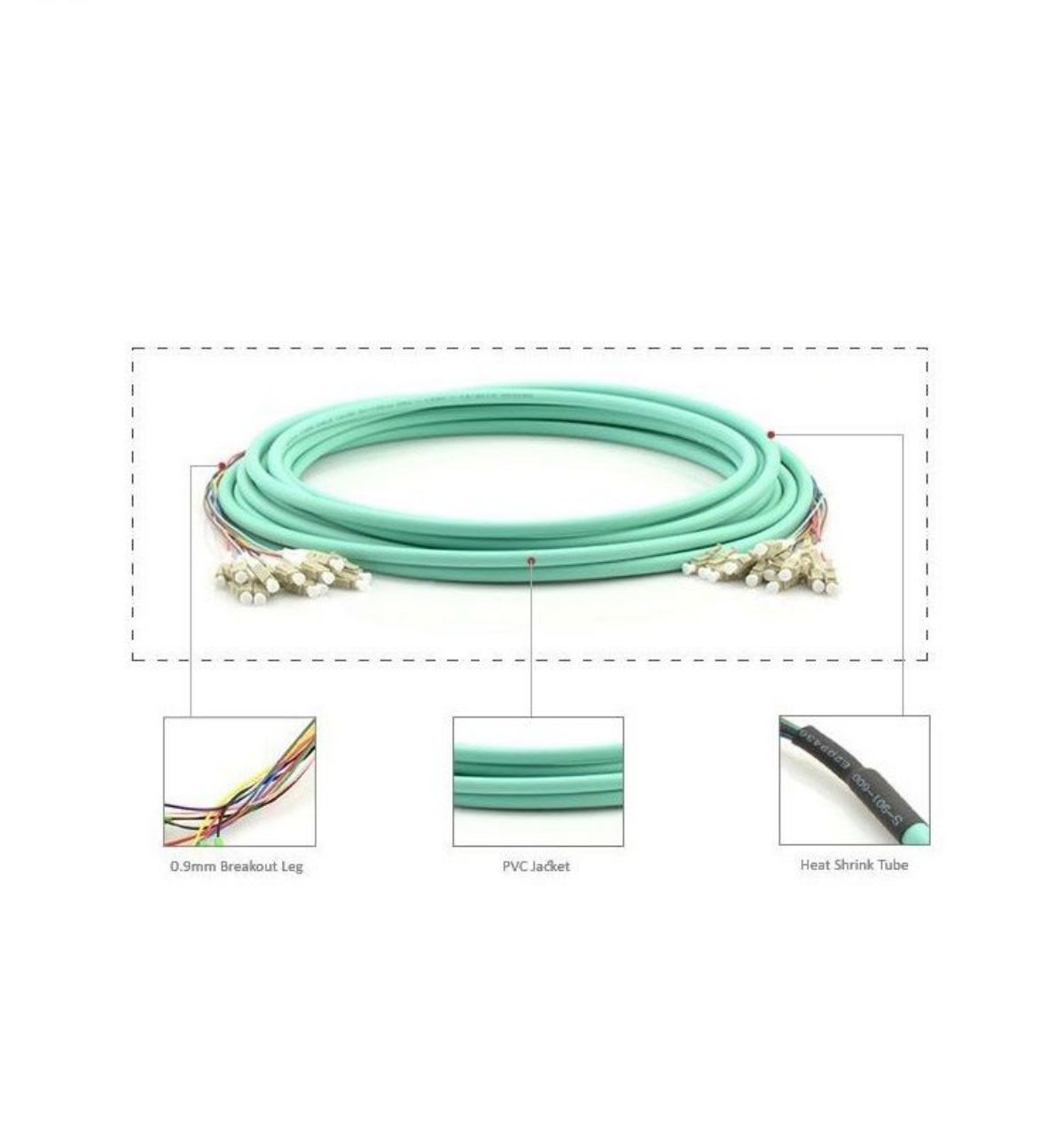

Fiber Optical Pigtail 1

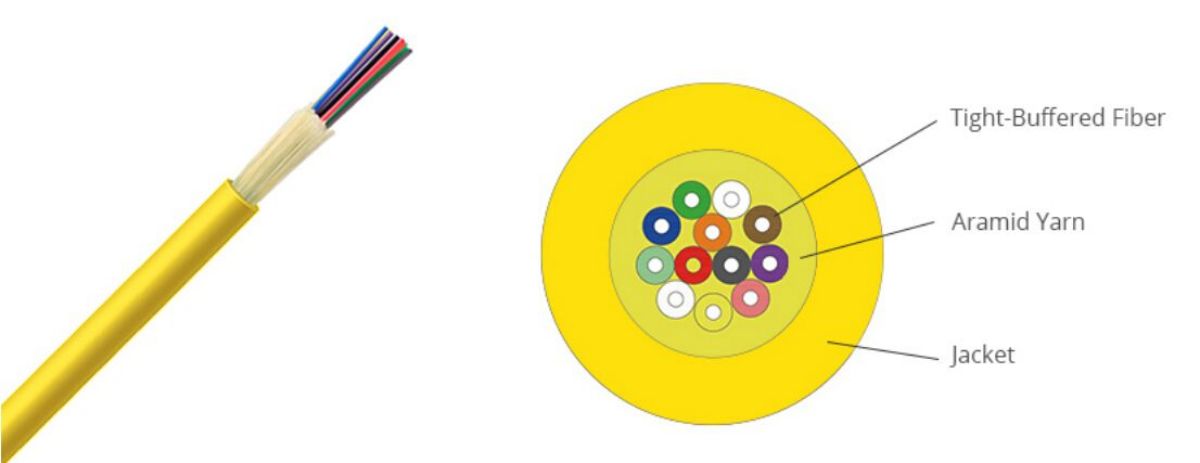

Fiber Optical Pigtail 2

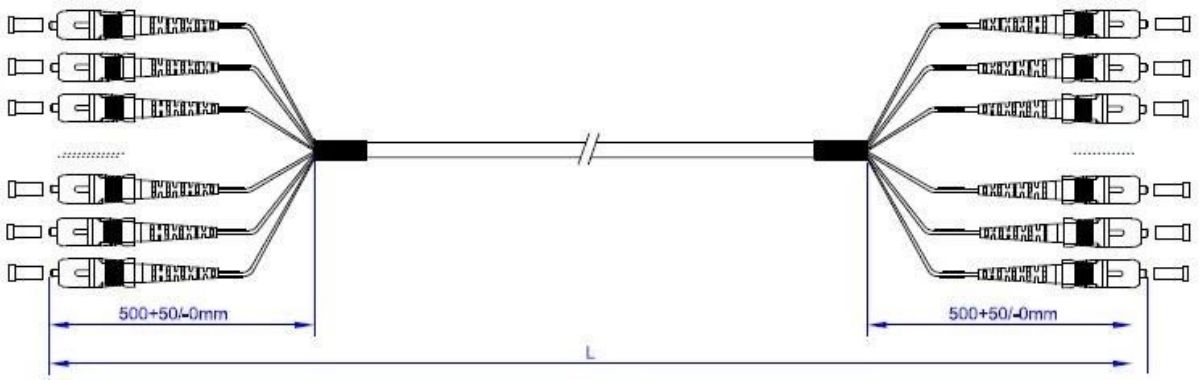

Fiber Optical Pigtail 3
Frequently Asked Questions (FAQ)
What is a fiber optic pigtail and how is it used?
A fiber optic pigtail is a single, short, tight-buffered optical cable with a factory-installed connector on one end and un-terminated fiber on the other. It is used to terminate fiber optic cables via fusion or mechanical splicing to connect them to distribution equipment.
What types of fiber and connectors are available for these pigtails?
They support Single Mode G652D, G657A1, G657A2, G657B3, and Multimode OM1, OM2, OM3, OM4, OM5 fiber types. Connectors are available in SC/APC, LC/UPC, or other customizable UPC, APC, and PC configurations.
What are the typical insertion loss and return loss values?
The fiber optic pigtails feature a low insertion loss of ≤ 0.3dB and a high return loss of ≥ 55dB for APC configurations, ensuring stable and reliable signal transmission.
What outer jacket options are available for the cables?
The outer jackets are available in various materials including PVC, LSZH, OFNR, and OFNP, allowing you to choose the appropriate type depending on your installation environment requirements.
Where are fiber optic pigtails typically applied?
They are commonly used in fiber management equipment like ODF (Optical Distribution Frames), terminal boxes, distribution boxes, LAN, FTTH systems, CATV/CCTV networks, and high-speed data centers.
