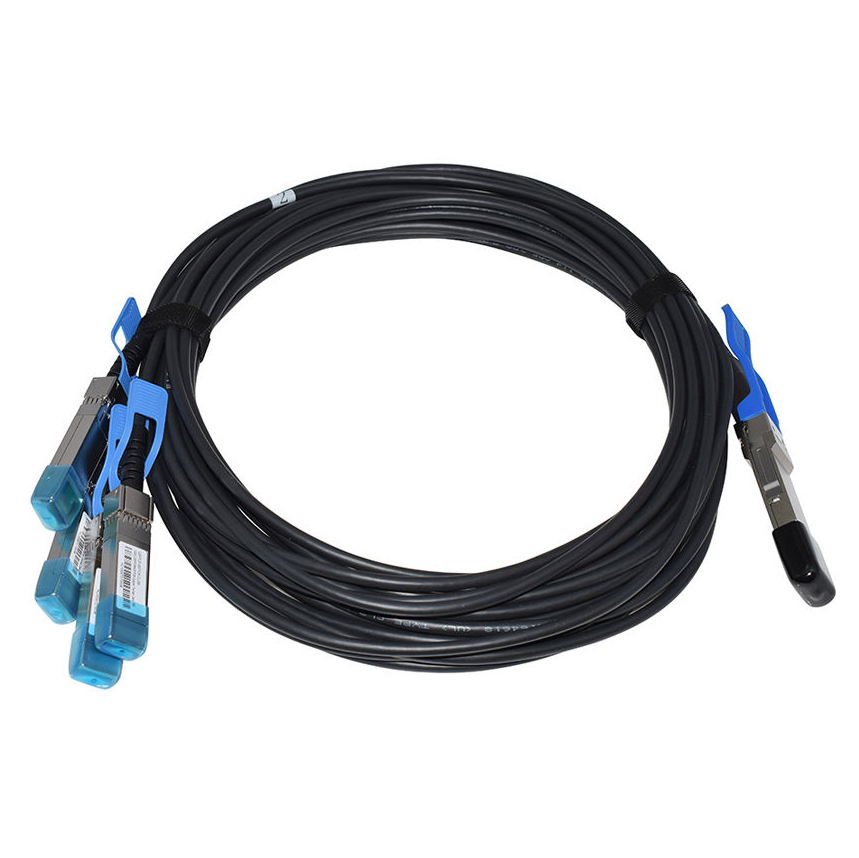

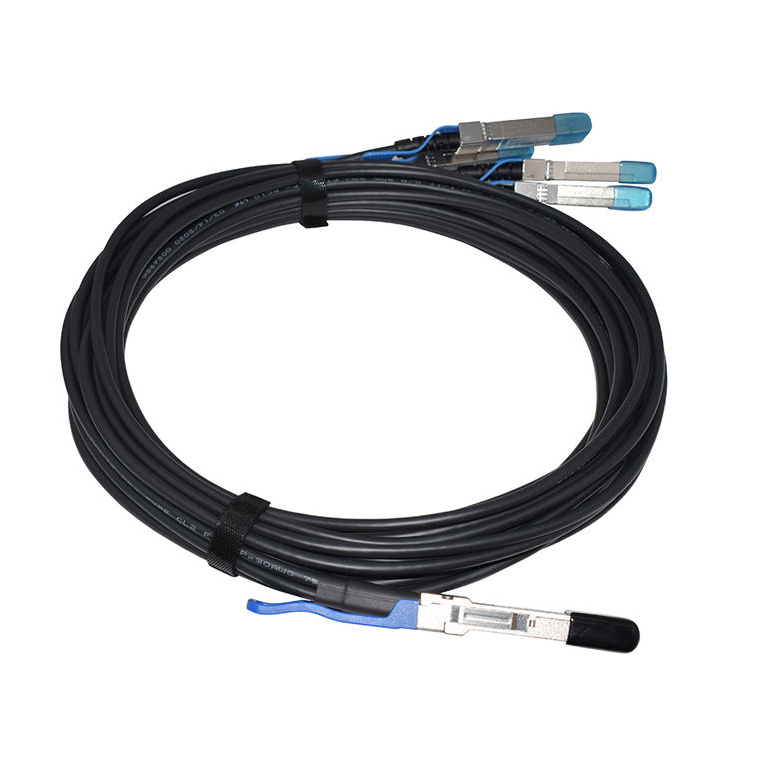

The KCO-100QSFP-4SFP25-DAC-xM Cisco QSFP-4SFP25G-CU1M Compatible QSFP28 to 4x 25G SFP28 Direct Attach Cable utilizes passive copper technology, ensuring reliable connectivity without the need for additional power. This cable provides a cost-effective solution for interconnecting equipment within a close range, such as telecom operator equipment rooms or data centers.
It offers a seamless connection between a 100G QSFP28 port and four 25G SFP28 ports, meeting the requirements of industry standards IEEE 802.3bj, SFF-8402, and SFF-8665. These breakout cables connect to a 100G QSFP port of a Cisco switch on one end and to four 25G SFP ports of a Cisco switch/server on the other end.
The Cisco compatible QSFP-100G to four SFP-25G copper direct-attach breakout cables are suitable for very short links and offer a cost-effective way to connect within racks. The QSFP28 Direct Attach Cables are compliant with the SFF-8665 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 5m).
| P/N | KCO-100QSFP-4SFP25-DAC-xM |
| Form Factor | QSFP28 to SFP28 |
| Max Data Rate | 100Gbps |
| Minimum Bend Radius | 60mm |
| Wire AWG | 30AWG |
| Cable Length | Customized (up to 5m) |
| Jacket Material | PVC (OFNR), LSZH |
| Cable Type | Passive Twinax |
| MTBF | ≥ 50 Million Hours |
| Power Consumption | ≤ 0.125W |
| Power Supply | 3.3V |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Media | Copper |
