Product Overview

The optic fiber pigtails are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration.
The optic fiber pigtail is a fiber optic cable terminated with a factory-installed connector on one end, leaving the other end terminated. Hence the connector side can be linked to equipment and the other side melted with optical fiber cables.
The optic fiber pigtails are utilized to terminate fiber optic cables via fusion or mechanical splicing. High-quality pigtail cables, coupled with correct fusion splicing practices offer the best performance possible for fiber optic cable terminations.

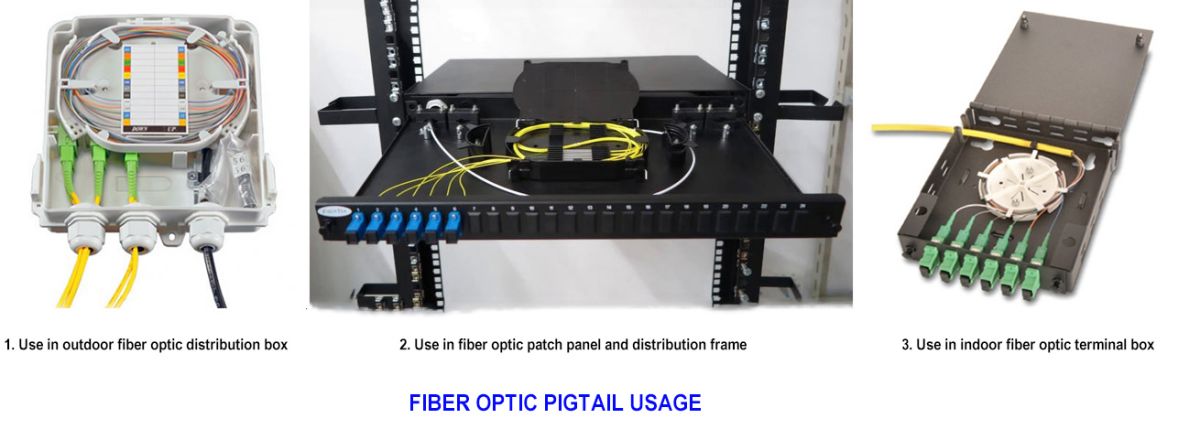

The optic fiber pigtails are usually found in fiber optic management equipment like ODF, fiber terminal box and distribution box.
A optic fiber pigtail is a single, short, usually tight-buffered fiber optic cable with a factory-installed connector on one end, and un-terminated fiber on the other end.

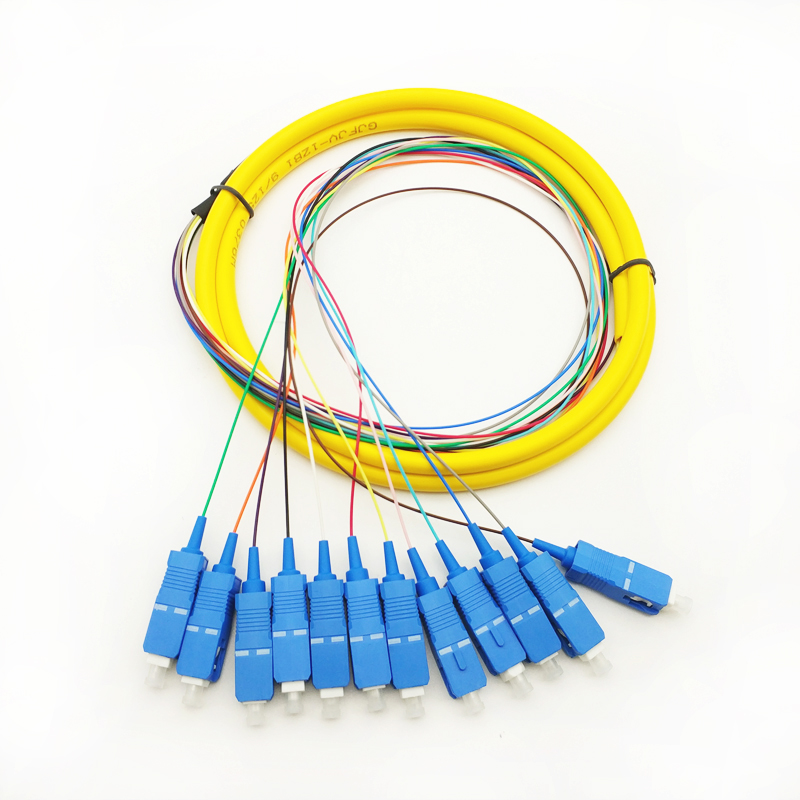

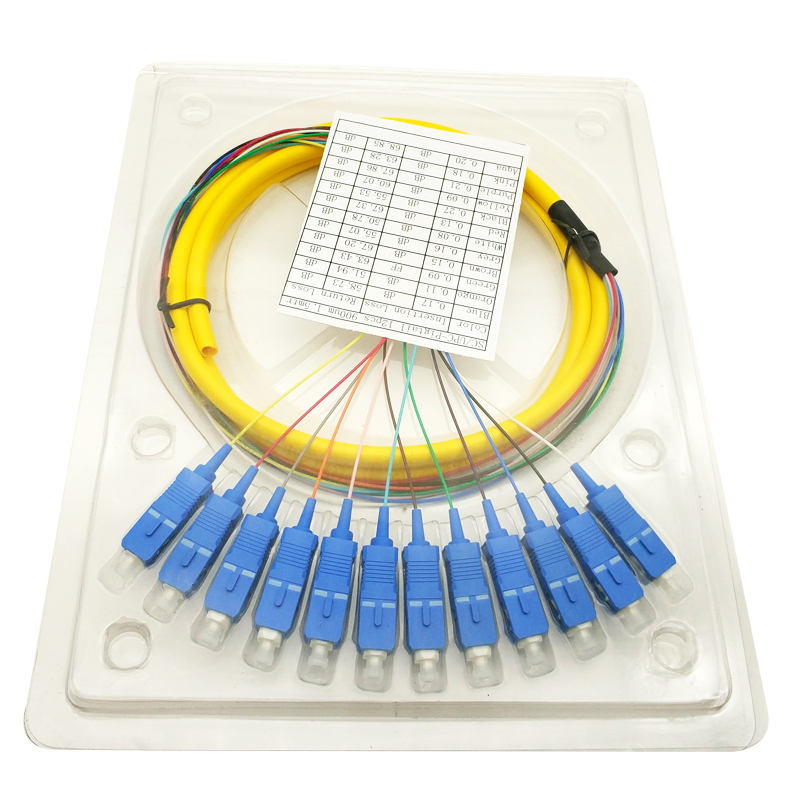

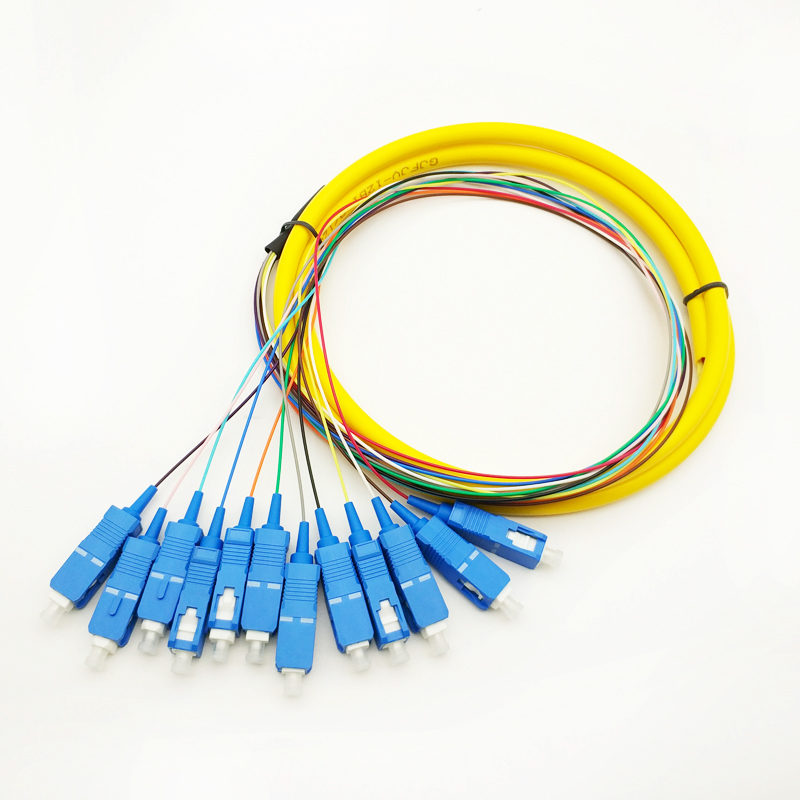

The SC/UPC fanout optic fiber pigtail's terminal connetor use SC/UPC connector. It is one of most popular fiber optic connector and wide use in all of telecom project. It is commonly used with both single-mode optical fiber and polarization-maintaining optical fiber.
SC/UPC fanout optic fiber pigtail is one of common type fiber optic pigtail, it come with one side of SC/UPC connector only.
Normally, the cable use single mode G652D, and also have other choose use single mode G657A1, G657A2, G657B3 or Multimode OM1, OM2, OM3, OM4, OM5. The cable outsheath can do PVC, LSZH or as customer request.

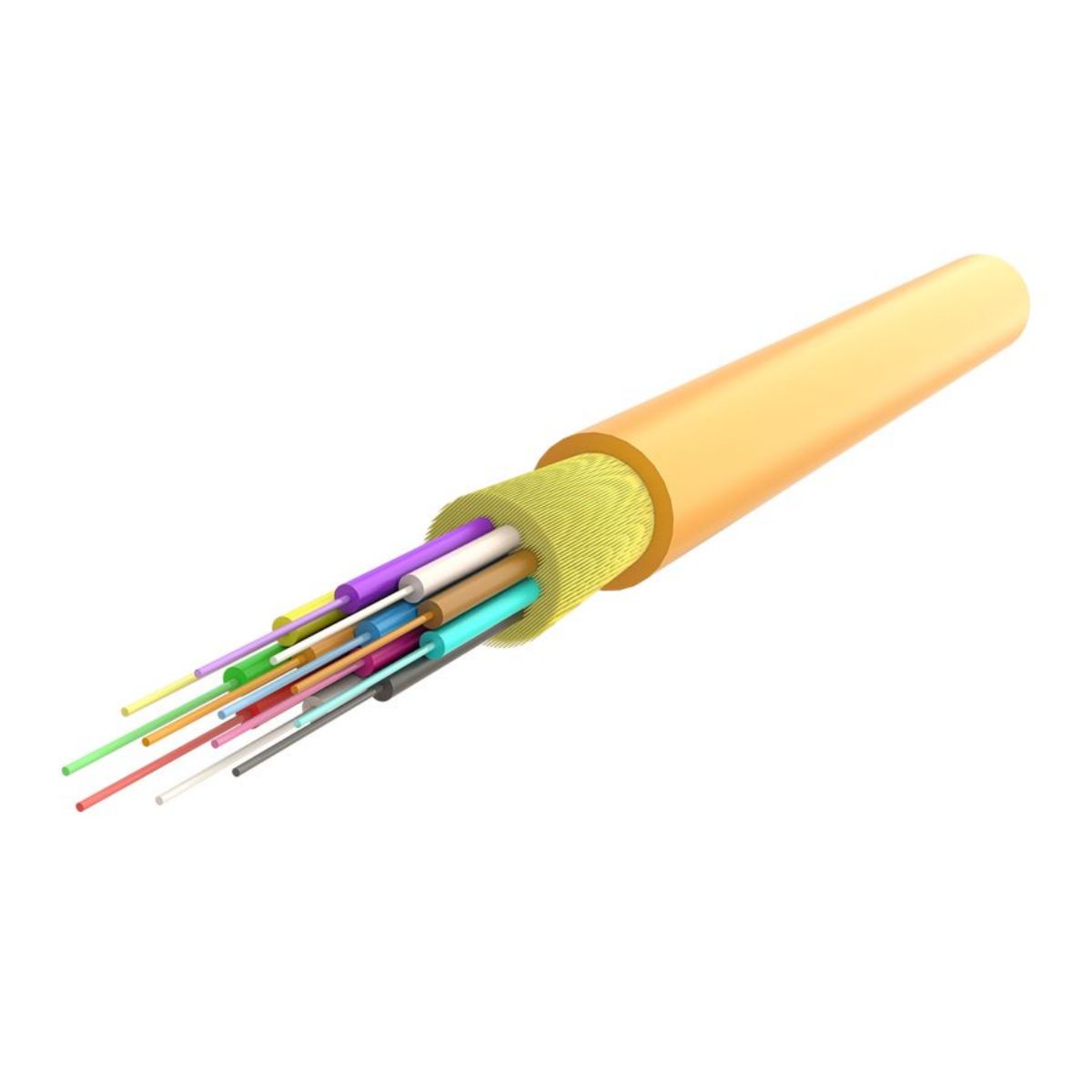

The SC/UPC fanout optic fiber pigtail use multi-fiber of fanout cable with sub-cable is tight buffer 0.6mm or 0.9mm cable.
Normally, the SC/UPC fanout optic fiber pigtails use 2fo, 4fo, 8fo and 12fo of cable. Sometimes also use 16fo, 24fo, 48fo or more.
The SC/UPC fanout optic fiber pigtails is using for indoor ODF box and indoor fiber optic distribution frame.

Specifications

Parameter	Standard Value
Connector type	SC/UPC
Fiber Type	9/125 Single mode: G652D, G657A1, G657A2, G657B3
Cable Type	2 cores, 4 cores, 8 cores, 12 cores, 24 cores, 48 cores, ...
Sub-cable Diameter	Φ0.9mm, Φ0.6mm, Customized
Cable outsheath	PVC, LSZH, OFNR
Cable length	1.0m, 1.5m, Customized
Polishing Manner	UPC
Insertion Loss	≤ 0.3dB
Return Loss	≥ 50dB
Repeatability	±0.1dB
Operating temperature	-40°C to 85°C

Key Features

Low insertion loss
High return loss
Various connector types available
Easy installation
Environmentally stable

Applications

Fiber optic patch panel and fiber optic distribution frame
Passive fiber optic systems
Fiber Optic Telecommunications
LAN (Local Area Network)
FTTH (Fiber To The Home)
CATV & CCTV
High speed transmission systems
Fiber optic sensing
Fiber optic testing
Metro
Data Centers

Product Gallery

Frequently Asked Questions

What is the main function of an optic fiber pigtail?

An optic fiber pigtail has a factory-installed connector on one end and un-terminated fiber on the other. It is used to terminate fiber optic cables via fusion or mechanical splicing, linking the connector side to equipment.

Which fiber types and core counts are available?

We offer single-mode options including G652D, G657A1, G657A2, and G657B3, as well as multimode options (OM1, OM2, OM3, OM4, OM5). Common core options include 2, 4, 8, 12, 16, 24, and 48 cores.

Where are these SC/UPC fanout pigtails typically applied?

They are commonly used inside ODF boxes, fiber terminal boxes, indoor fiber optic distribution frames, local area networks (LAN), FTTH setups, CATV/CCTV networks, and data centers.

What are the insertion and return loss standards of your pigtails?

Our SC/UPC fiber optic pigtails provide high reliability with an insertion loss of ≤ 0.3dB and a return loss of ≥ 50dB.

What sheath materials and sub-cable options do you offer?

The sub-cables are available in tight buffer sizes of 0.6mm or 0.9mm. The outer sheath material can be customized with PVC, LSZH, or OFNR depending on the application environment.
