Experience efficient data transmission speeds with up to 25.78 Gbps, supported by silver-plated copper conductors and Infiniband support, ensuring efficient and reliable connectivity for demanding network environments.
Crafted with a bending radius of 30 mm and encased in a robust PVC jacket, this cable is designed to withstand rigorous usage while maintaining its integrity, making it an ideal choice for both industrial and commercial applications.

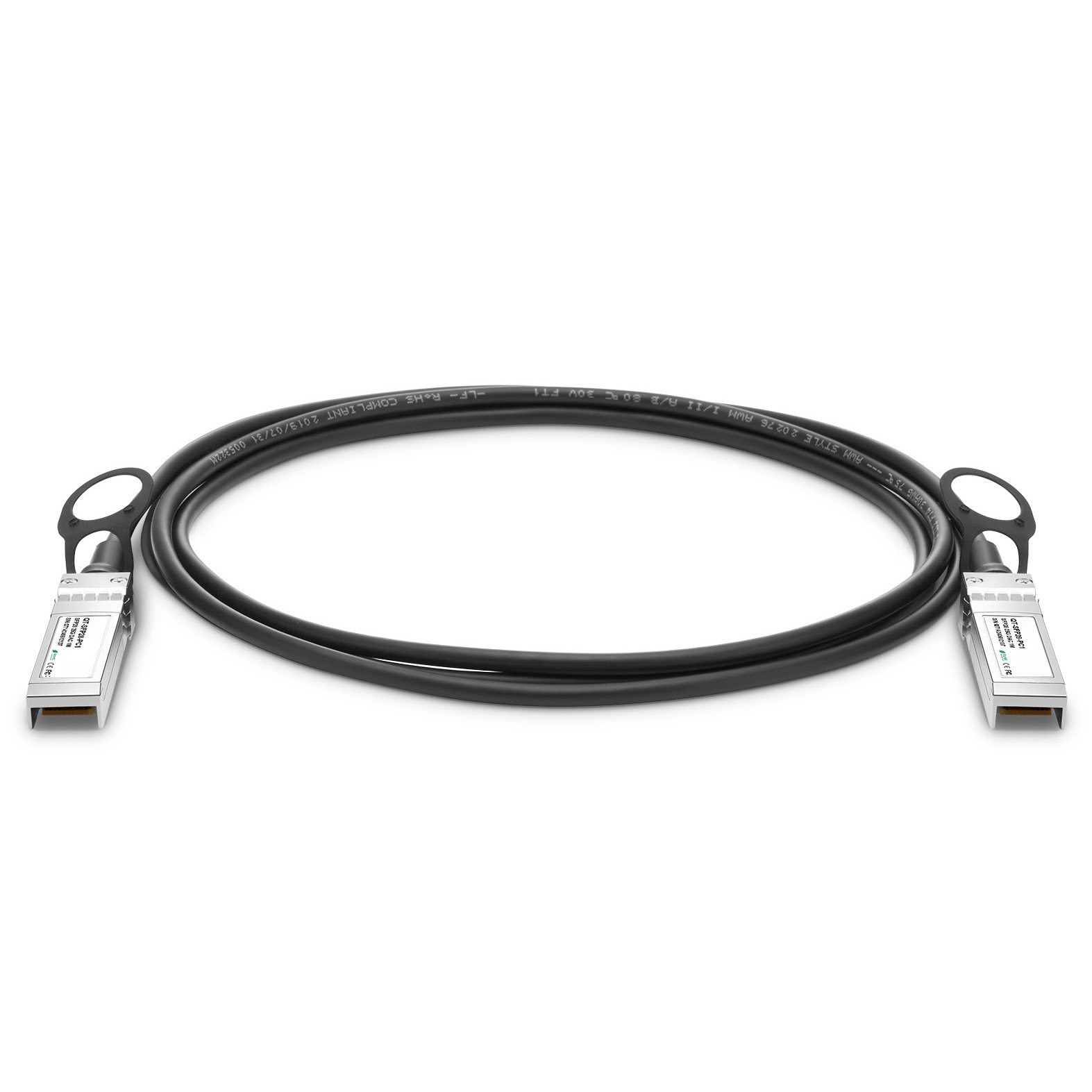

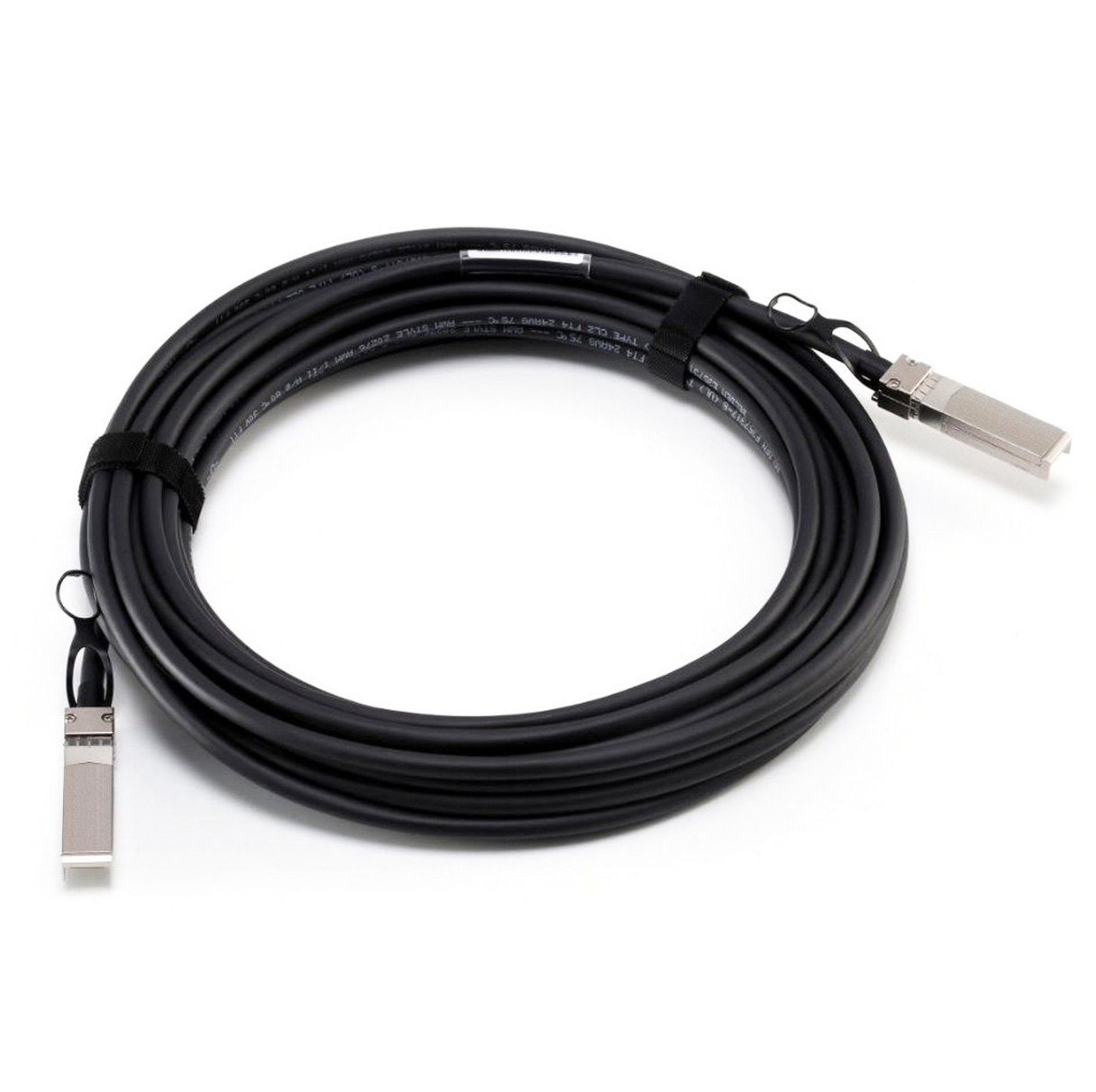

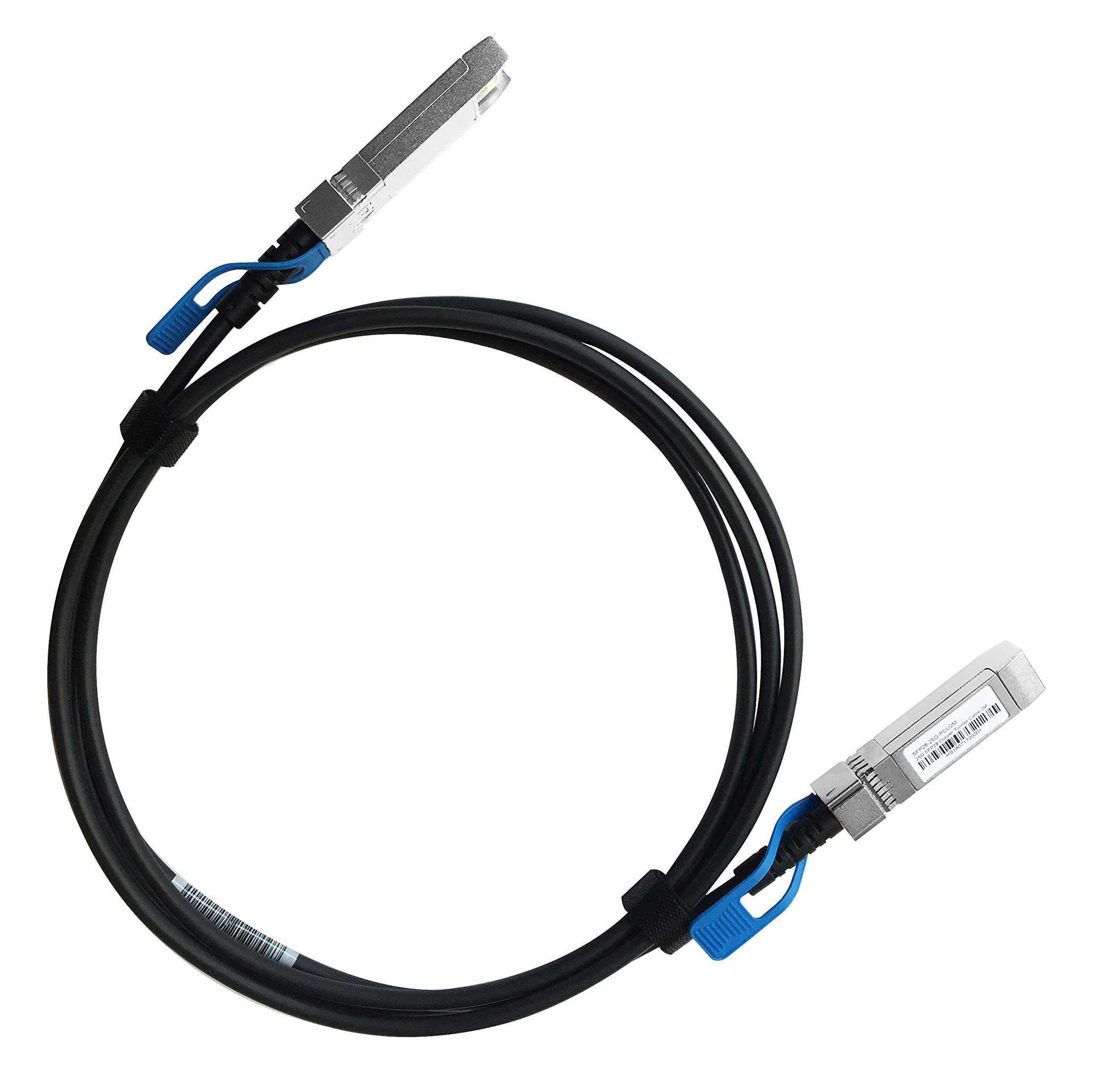

Featuring SFP28 connectors on both ends, this 25GBase-CR direct attach cable is compliant with a wide range of standards including IEEE P802.3by/SFF-8402/SFF-8419/SFF-8432, ensuring broad compatibility with existing network equipment.
With a Bit Error Rate (BER) of 1E-15, this cable ensures a reliable connection with minimal data loss, making it suitable for critical network applications where data integrity is important.
| Connector Type | SFP28 to SFP28 |
|---|---|
| Max Data Rate | 25Gbps |
| Minimum Bend Radius | 22mm |
| Wire AWG | 30AWG |
| Cable Length | Customized |
| Jacket Material | PVC (OFNR), LSZH |
| Typical Power Consumption | ≤0.5W |
| Power Supply | 3.3V |
| Temperature | 0 to 70°C (32 to 158°F) |
| Application | 25G Ethernet, Data Center, 5G Wireless |
This cable is compliant with the IEEE P802.3by Ethernet standard, SFP28 MSA, and compatibility specifications including SFF-8402, SFF-8419, and SFF-8432.
The cable operates on a 3.3V power supply and has a highly efficient typical power consumption of ≤0.5W.
It supports transmission speeds of up to 25.78 Gbps with silver-plated copper conductors and has Infiniband support, achieving a low Bit Error Rate (BER) of 1E-15.
The cable has a minimum bend radius of 22 mm for installation adjustments, and it features a durable operational design with a bending radius of 30 mm.
It is ideal for short-distance connectivity within a rack or between adjacent racks in data centers, 25G Ethernet, and 5G wireless networking.
