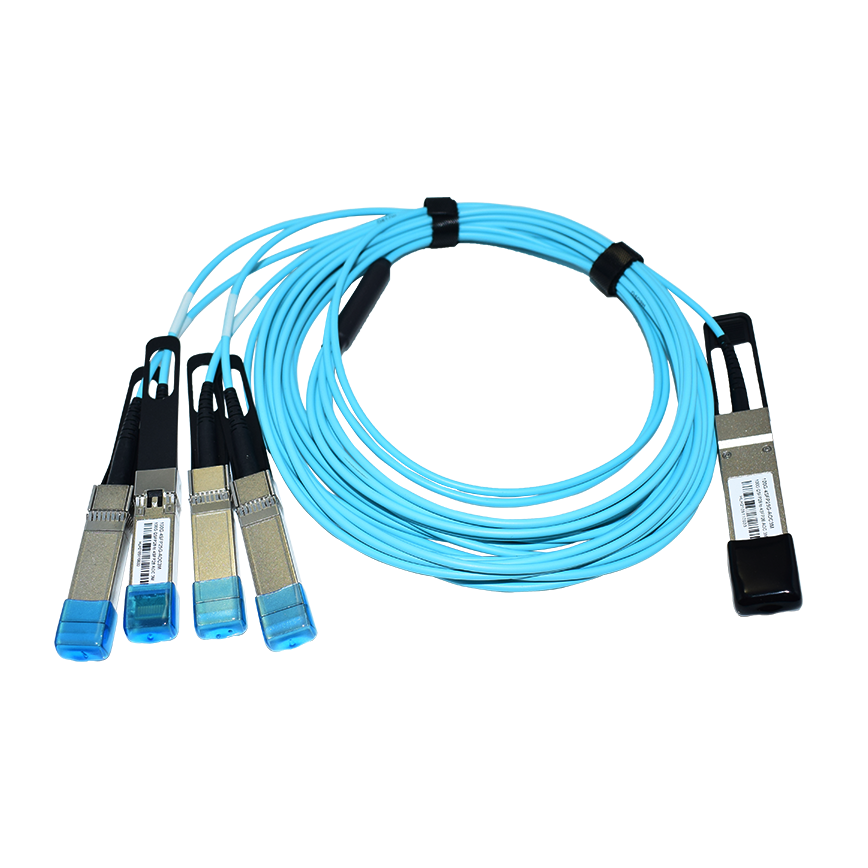

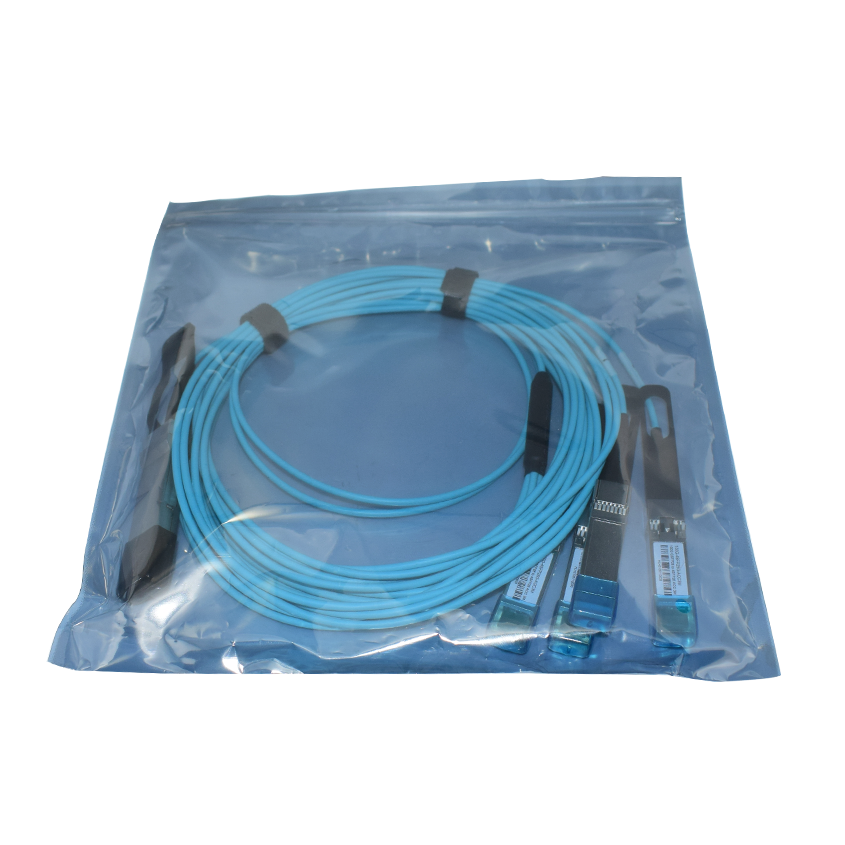

- The KCO-40QSFP-4SFP10-AOC-xM Cisco QSFP-4X10G-AOC1M Compatible 40G QSFP+ to 4 SFP+ Breakout Active Optical Cable operates over Multi-Mode Fiber (MMF). - This breakout cable is compliant with SFF-8436, SFF-8431 and SFP+ & QSFP MSA standards. - It provides a connection of a 40G QSFP+ port on one end and to four 10G SFP+ ports on the other end and is suitable for quick and simple connections within racks and across adjacent racks.
Send Inquiry

Product Description

  • Compliant to the 40GBASE-SR4 and XLPPI Specification per IEEE 802.3ba-2010 and supporting 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
  • Compliant to the industry standard SFF-8436
Product Specifications
P/N KCO-40QSFP-4SFP10-AOC-xM
Connector Type QSFP+ to 4 SFP+
Max Data Rate 40Gbps
Minimum Bend Radius 30mm
Cable Length Customized
Jacket Material PVC (OFNP), LSZH
Temperature 0 to 70°C (32 to 158°F)
Performance & Power
  • Power Level 1: Max Power < 1.5 W
  • Operate at 10.3125 Gbps per channel with 64b/66b encoded data for 40GbE application and at 10 Gbps with 8b/10b compatible encoded data for 40G-IB-QDR application
  • Maximum power dissipation 0.35W per end
  • 0 to 70°C case temperature operating range
Standard Compliance
  • Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module
  • Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor "IPF"
  • Proven High Reliability 850 nm technology: VCSEL transmitter and PIN receiver
  • Hot pluggable for ease of servicing and installation
  • Two Wire Serial interface
  • Utilizes optical fiber for high density and thin, lightweight cable management
Key Applications
  • 40GbE and 10GbE break-out applications for Datacom switch and router connections
  • 40G to 4×10G density applications for Datacom and Proprietary protocol
  • Data center, High Speed transmission
Frequently Asked Questions
What standard specifications does this AOC cable comply with?

This active optical cable complies with the 40GBASE-SR4 and XLPPI specifications per IEEE 802.3ba-2010, the industry standard SFF-8436, the electrical specifications per SFF-8431, and the mechanical specifications per SFF Committee SFF-8432 (IPF).

What is the maximum data rate and channel speed supported?

It supports a maximum data rate of 40Gbps. It can operate at 10.3125 Gbps per channel with 64b/66b encoded data for 40GbE applications, and at 10 Gbps with 8b/10b compatible encoded data for 40G-IB-QDR applications.

What are the power dissipation and power level parameters?

This cable operates under Power Level 1 with a maximum power of less than 1.5W, and features a maximum power dissipation of only 0.35W per end.

What is the recommended operating temperature range?

The cable operates reliably within a case temperature range of 0 to 70°C (32 to 158°F).

What is the minimum bend radius and cable jacket options?

The minimum bend radius is 30mm. The jacket materials are available in PVC (OFNP) and LSZH options, with customized lengths to suit high-density installations.
