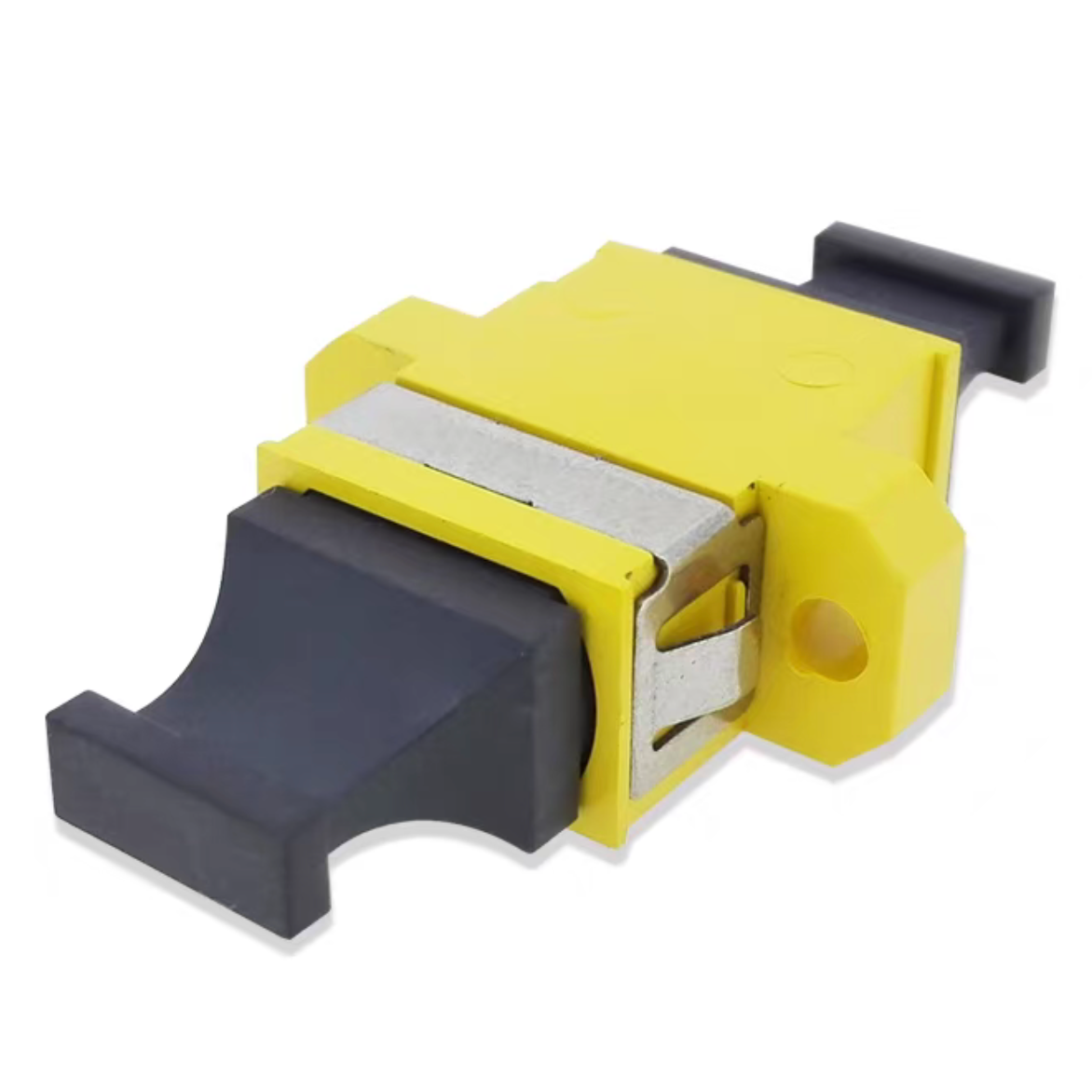

High-Quality Elite Loss Single Mode MPO optical adapter / Yellow Color SM ULL MTP fiber optic coupler Factory, Factories

1 / 3

High-Quality Elite Loss Single Mode MPO optical adapter / Yellow Color SM ULL MTP fiber optic coupler Factory, Factories

+ Name: MPO fiber optic adapter MTP optical fiber coupler + P/N: KCO-MPO-ADT-ULL-Y-F + Color: Yellow + IL: Ultra Low Loss (Elite Loss) + Fiber count: 8F, 12F, 16F, 24F, 32F, 48F + Adapter port: SC simplex port + MOQ: 1pc + Stock status: available

Send Inquiry

Product Description

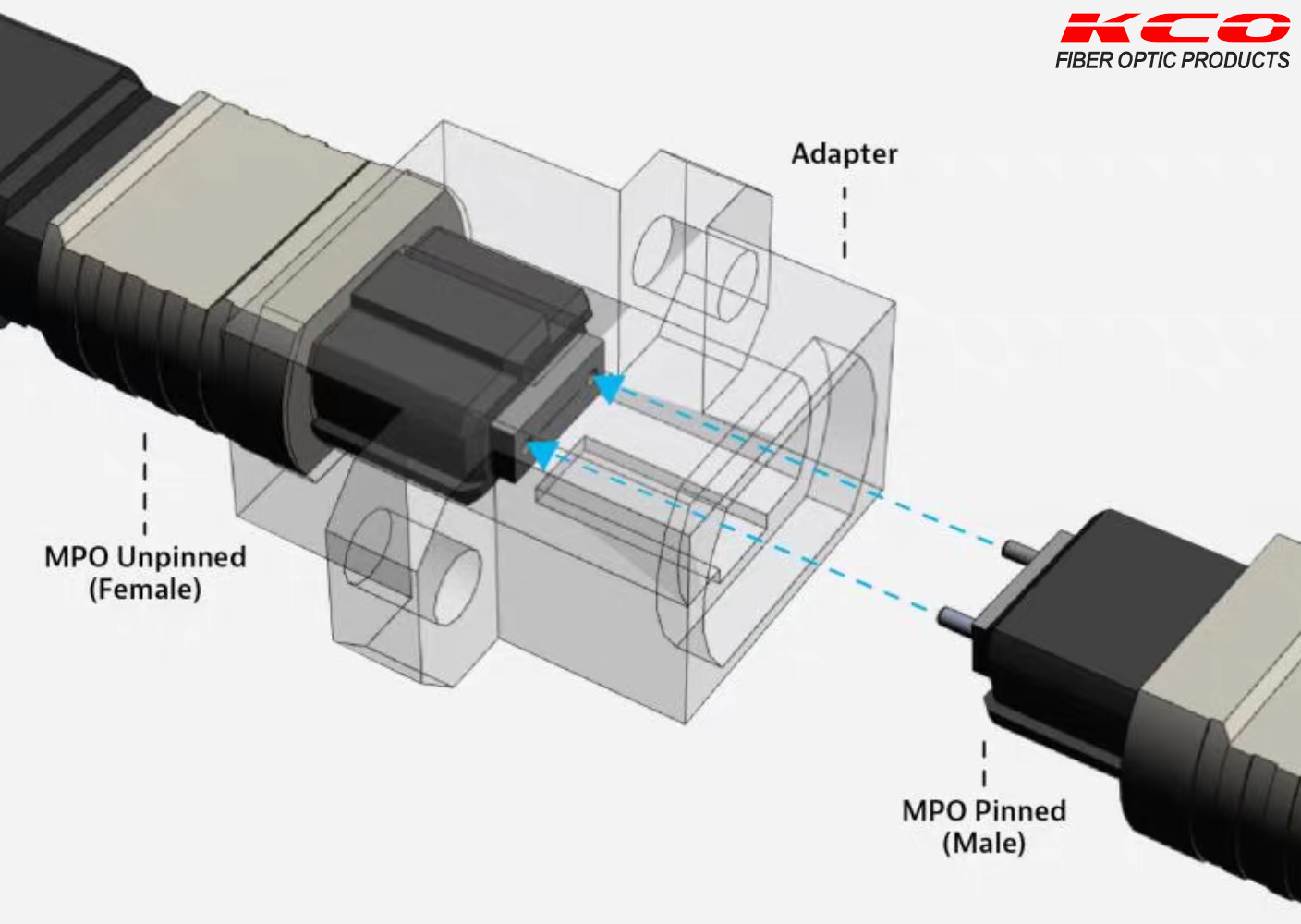

MPO optical adapter / MTP fiber optic coupler is the adapter (also call coupler) that use to connect the MPO/MTP female trunk cable and MPO/MTP male trunk cable or the MPO/MTP female trunk cable and MPO/MTP male module (MPO/MTP male to LC module).

Key Design Characteristics

It is use for MPO-8, MPO-12, MPO-16, MPO-24, MPO-32, MPO-48 connector.
MPO optical adapter / MTP fiber optic coupler use in MPO/MTP high density patch panel and FTTA multi-function box.
MPO optical adapter / MTP fiber optic coupler is a adapter, and it is female only. The MPO/ MTP trunk cable use on MPO/MTP adapter need come with one side female (without pin) and one side male (with pin).

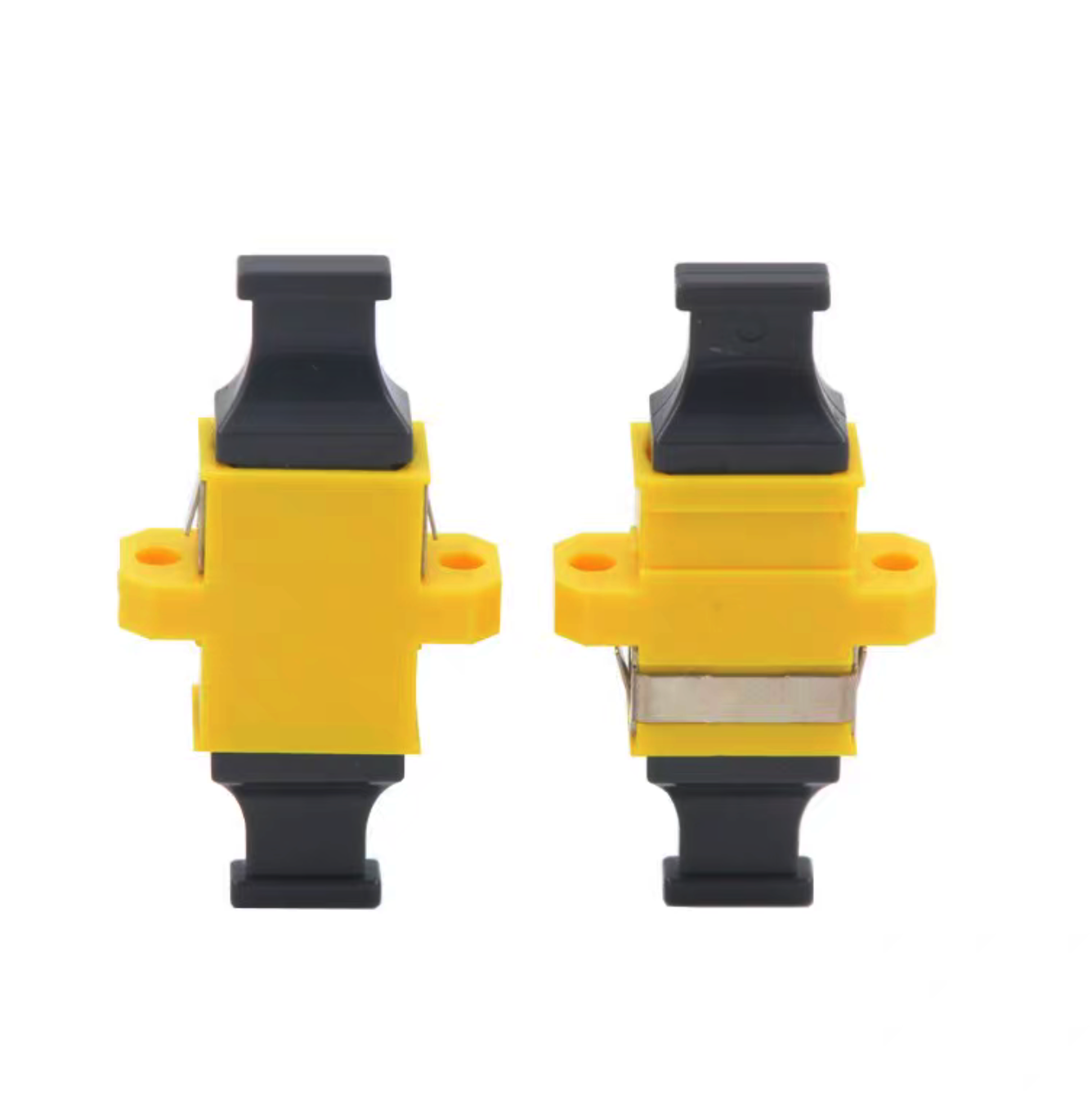

The MPO optical adapter / MTP fiber optic coupler is with flange, can better fix the adapter into patch panel plate.

Alignment Type Configurations

Opposed type (Key Up to Key Down)

Used for standard Type A trunk cable.

Aligned type (Key Up to Key Up)

Used for standard Type B trunk cable.

MPO/MTP Adapter Usage

Performance Benefits

Supports speeds up to 40 GbE/100 GbE.
Push/pull tab connector installs/removes with one hand.
8, 12, 16, 24, 32, 48-fibers MTP/MPO connectors.
Single mode and Multimode are available.
High size precision.
Fast and easy connection.

Housing Features

Lightweight and durable plastic housings.
One-piece coupler design maximizes coupling strength while minimizing debris generation.
Aqua, Violet color to choose.
High wearable.
Good repeatability.

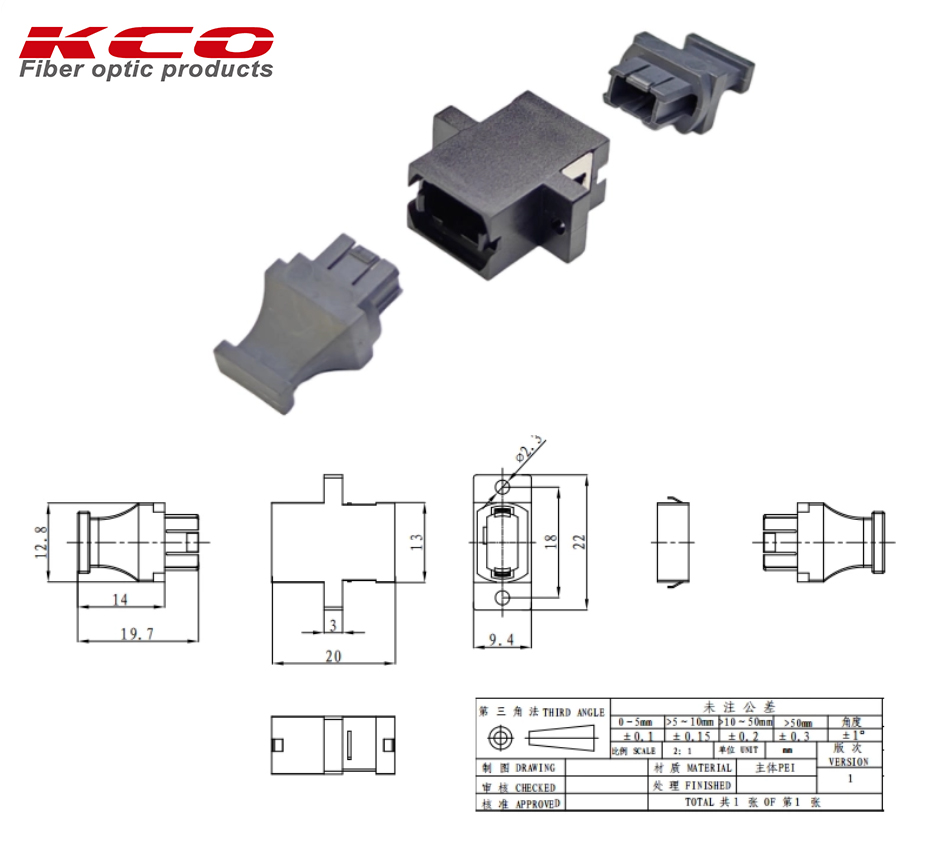

Technical Specifications

Connector Type	MPO/MTP	Body Style	SC type Simplex
Fiber Mode	Multimode / Singlemode	Body Color	Single mode UPC: black Single mode APC: green Single mode ULL: yellow Multimode: black OM3: aqua OM4: violet
Insertion Loss	≤0.15dB	Mating Durability	500 times
Flange	With flange / Without flange	Key Orientation	Key Up – Key Up Key Up- Key Down

Key Applications

MPO Breakout & Fan-Out Solutions
Passive fiber optic telecommunication
Enterprise network system

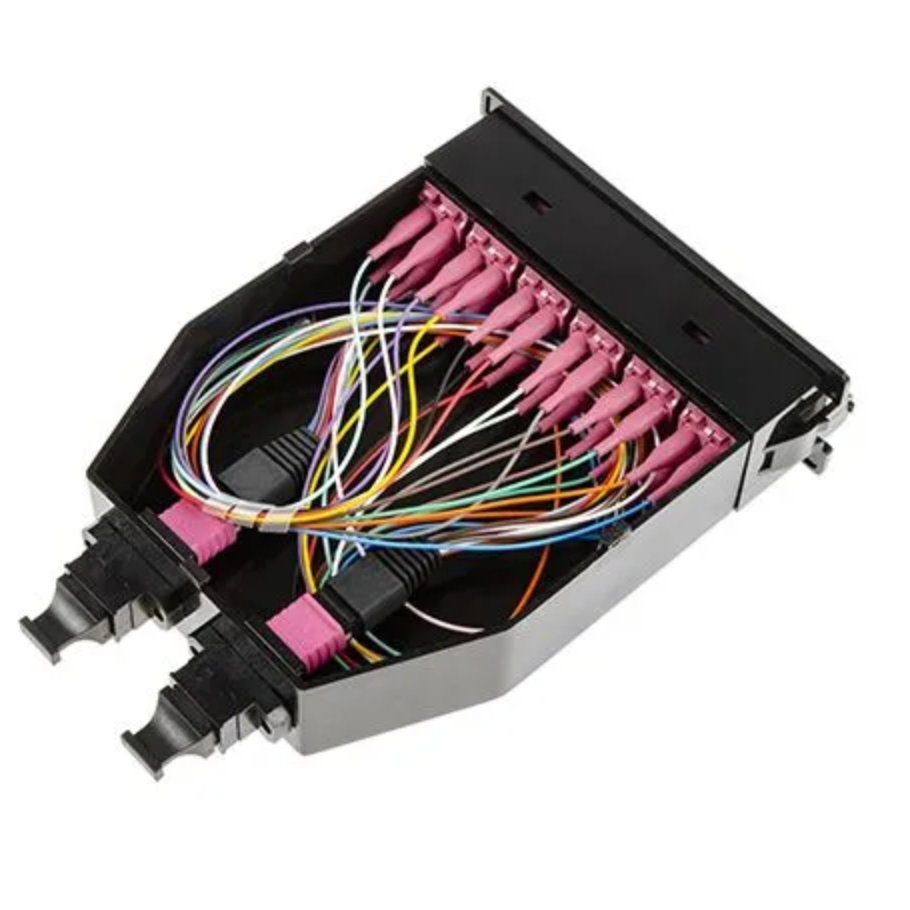

MPO module / MTP module
MPO high density patch panel / MTP density patch panel
Test Equipment
High-speed data transmission device
I-cloud data center
AI & High-Performance Computing (HPC)
Telecommunication data center
FTTA outdoor multi-function box
Data Center Backbone Cabling

Environmental Specifications

Operating temperature	-20°C to 70°C
Storage temperature	-40°C to 85°C
Humidity	95%RH

Product Gallery

Frequently Asked Questions

Q What is the main function of an MPO/MTP optical adapter?

The MPO optical adapter (or MTP coupler) is designed to connect a female MPO/MTP trunk cable to a male trunk cable, or connect a female trunk cable directly to a male module (such as an MPO/MTP male to LC module).

Q What fiber counts are compatible with this adapter?

These adapters are fully compatible with MPO-8, MPO-12, MPO-16, MPO-24, MPO-32, and MPO-48 fiber connectors.

Q What is the difference between Opposed and Aligned key orientations?

The Opposed configuration (Key Up to Key Down) is typically used for standard Type A trunk cables. The Aligned configuration (Key Up to Key Up) is utilized for standard Type B trunk cables.

Q Does the adapter feature a flange for mounting?

Yes, adapters are available in configurations both with and without flanges. The flanged option helps to securely fix the adapter into patch panel plates.

Q What are the operating and storage temperature ranges?

The operational temperature range is -20°C to 70°C, and the storage temperature range is -40°C to 85°C, with a maximum operating humidity level of 95%RH.
