• Water-proof design with IP-65 Protection level. • Integrated with splice cassette and cable management rods. • Manage fibers in a reasonable fiber radius condition. • Easy to maintain and extend the capacity. • Fiber bend radius control more than 40mm. • Suitable for the fusion splice or mechanical splice. • 1*8 and 1*16 Splitter can be installed as an option. • Efficient cable management. • 8/16 ports cable entrance for drop cable.
Send Inquiry

Product Description

  • FDB-08A Outdoor Fiber Optic Distribution Box fiber access termination box is able to hold up to 8/16 subscribers.
  • It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.
  • It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
  • Widely used in the end termination of residential buildings and villas, to fix and splice with pigtails;
  • Can be installed on the wall;
  • May adapt variety of optical connection styles;
  • Optical fiber can be managed effectively.
  • Available for 1:2, 1:4, 1:8 fiber optic splitter.
Specifications
Item Material Size (mm) Weight (kg) Capacity Color Packing
FDB-08A ABS 240*200*50 0.60 8 white 20pcs/ carton/ 52*42*32cm/12.5kg
Key Application Details
  • Suitable for the fusion splice or mechanical splice.
  • 1*8 and 1*16 Splitter can be installed as an option.
  • Efficient cable management.
  • 8/16 ports cable entrance for drop cable.
Widely used in FTTH access network
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks

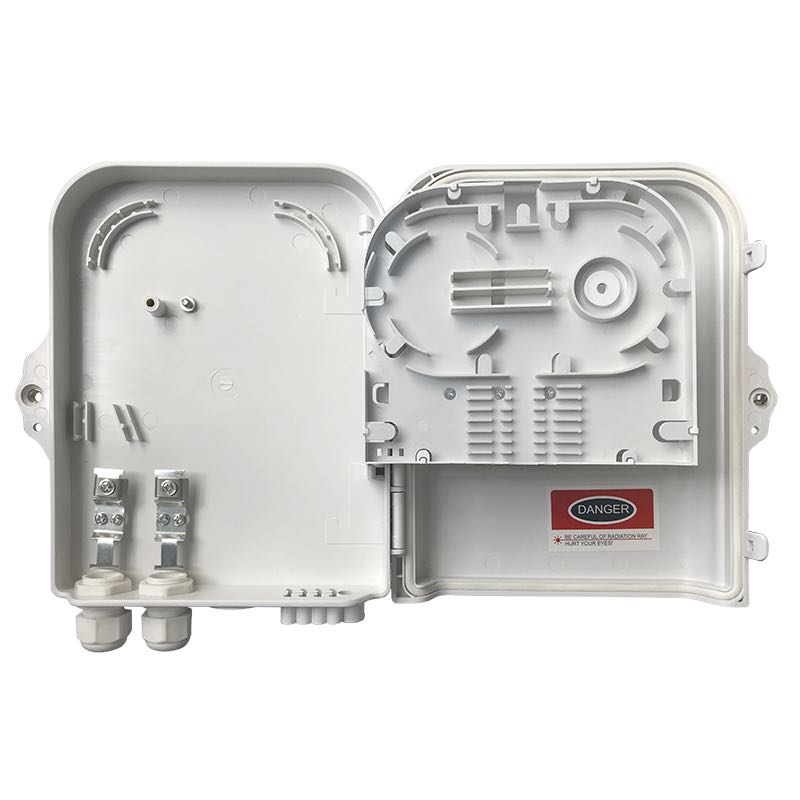

Fiber Optic Distribution Box Internal View
Installation Steps
  1. 1 Insert small diameter cable and fix it.
  2. 2 Connect small diameter cable with splitter input cable by fusion splicing or mechanical splicing.
  3. 3 Fix the PLC splitter.
  4. 4 Connect splitter ribbon fibers with output pigtails that coated loose tube as below.
  5. 5 Fix the arranged output pigtails with loose tube to tray.
  6. 6 Lead output pigtail to the other side of the tray, and insert adapter.
  7. 7 Pre-insert optical drop cables to outlet holes in order, then seal it by soft block.
  8. 8 Pre-installed field assembly connector of drop cable, then insert connector to optical adapter in order and tie it by cable tie.
  9. 9 Close the cover, the installation is finished.
Design Features
  • Water-proof design with IP-65 Protection level.
  • Integrated with splice cassette and cable management rods.
  • Manage fibers in a reasonable fiber radius condition.
  • Easy to maintain and extend the capacity.
  • Fiber bend radius control more than 40mm.
Standard Accessories Included
  • Empty box cover: 1 set
  • Lock: 1/2pcs
  • Heat shrink tube: 8/16pcs
  • Ribbon tie: 4pcs
  • Screw: 4pcs
  • Expansion tube for screw: 4pcs

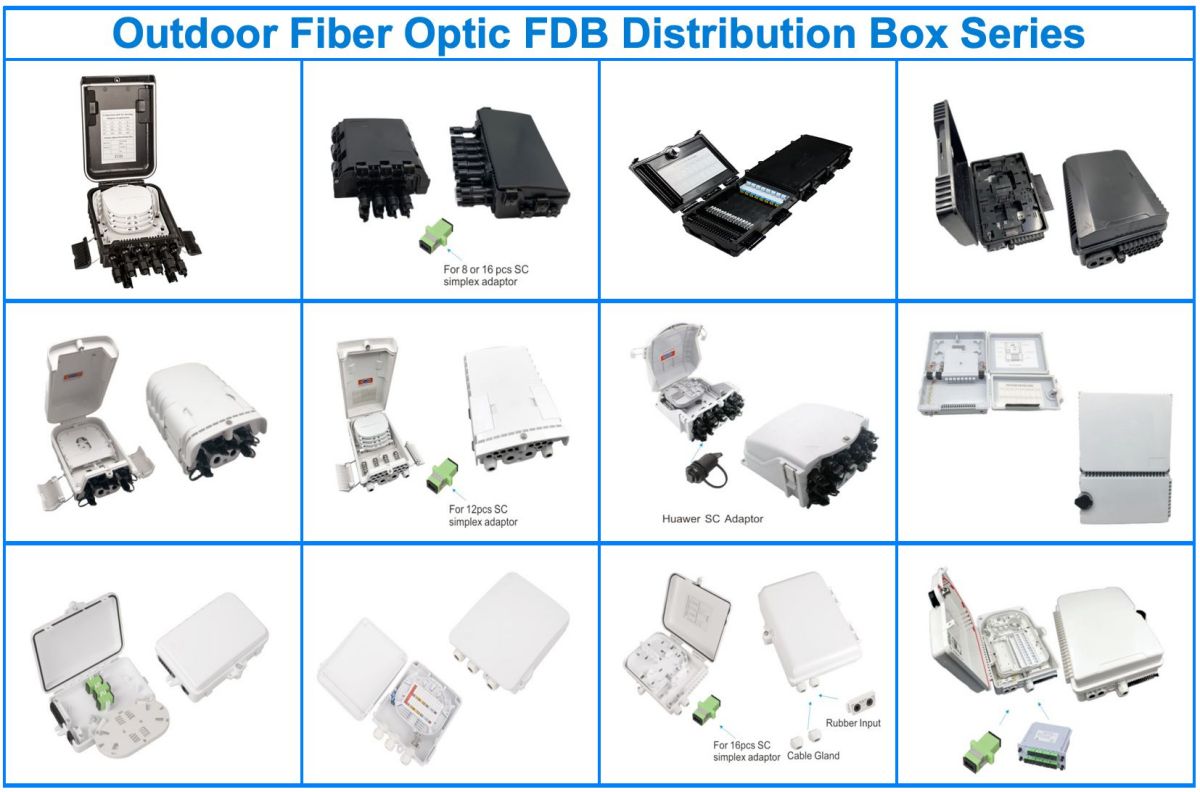

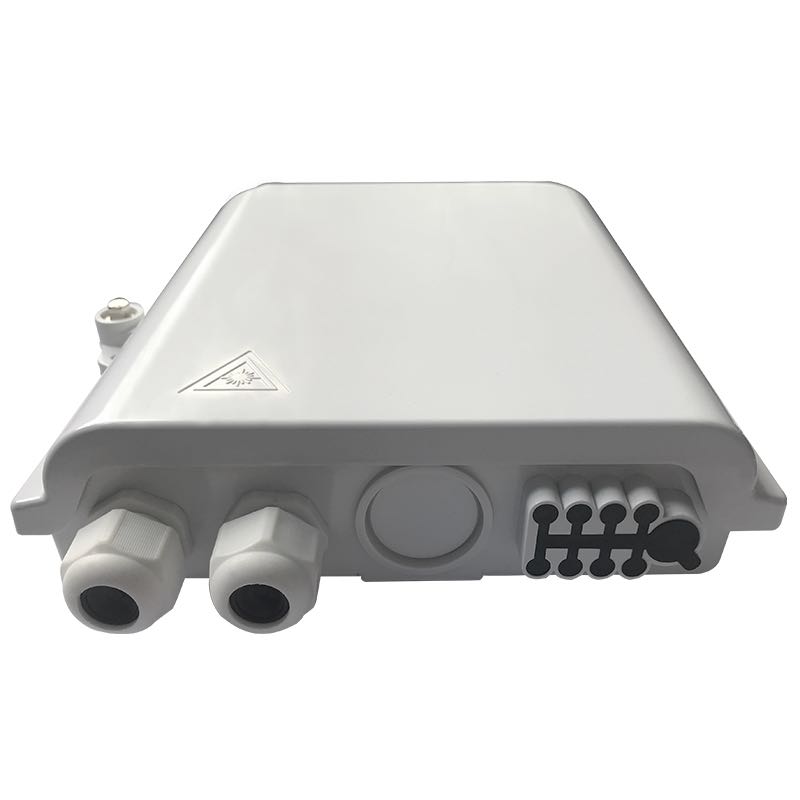

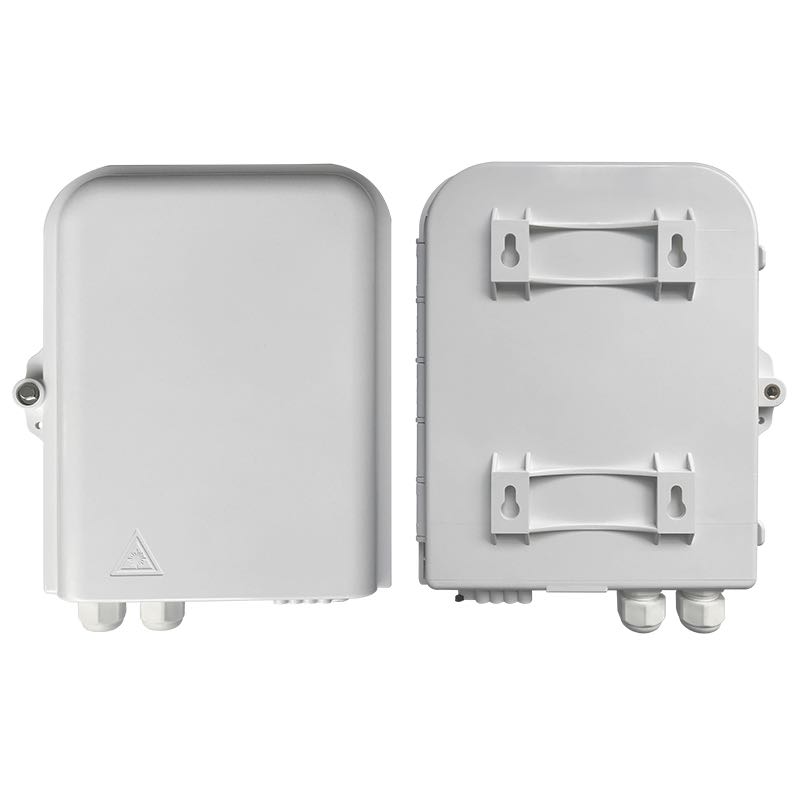

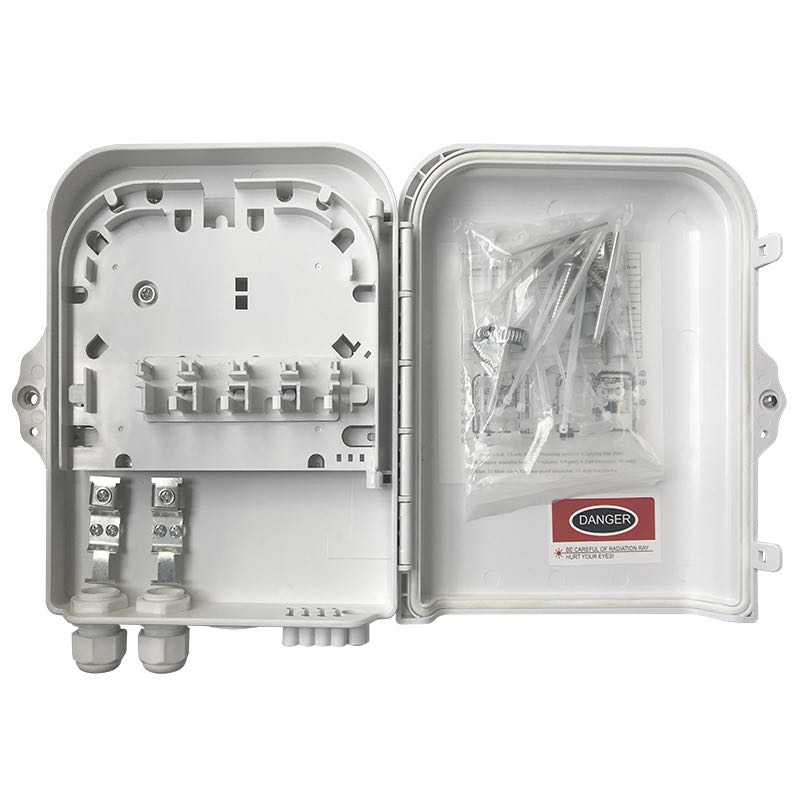

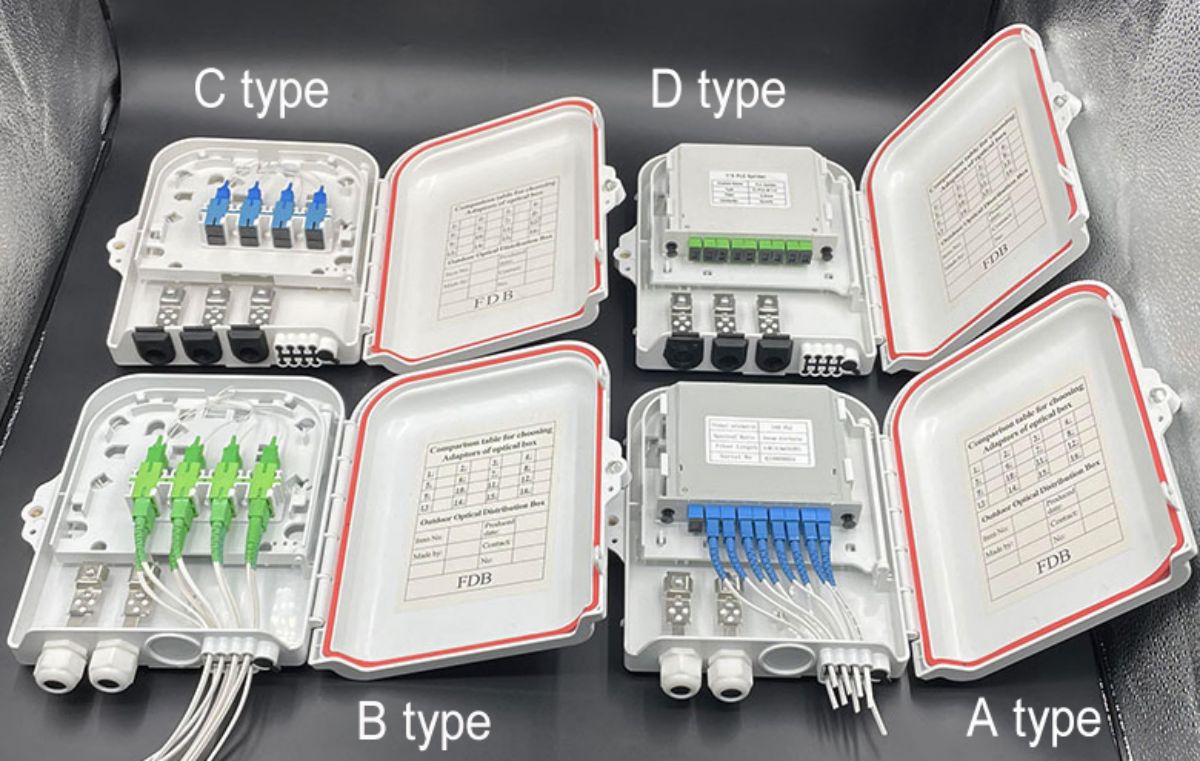

Distribution Box Exterior Close-up Open Fiber Optic Distribution Box Cable Routing Detail Distribution Box Installation View
Frequently Asked Questions (FAQ)
Q1: What is the protection rating of the FDB-08A distribution box?

A1: It features a water-proof design with an IP-65 protection level, making it highly suitable for outdoor fiber termination environments.

Q2: How many subscribers can this box support?

A2: The FDB-08A Outdoor Fiber Optic Distribution Box is capable of holding and managing connections for up to 8/16 subscribers.

Q3: Which types of splitters can be installed inside?

A3: It is compatible with 1:2, 1:4, and 1:8 splitters. Additionally, a 1*8 or 1*16 PLC splitter can be installed as an option.

Q4: What material is the FDB-08A made of and what are its dimensions?

A4: The box is made of highly durable ABS material. Its dimensions are 240mm * 200mm * 50mm, and it weighs approximately 0.60 kg.

Q5: How is the fiber bend radius controlled in this box?

A5: The interior layout integrates splice cassettes and cable management rods designed to manage fibers and maintain a bend radius control of more than 40mm.

Q6: What splice methods does this termination box support?

A6: It is designed to be highly versatile, making it suitable for both fusion splice and mechanical splice applications.
