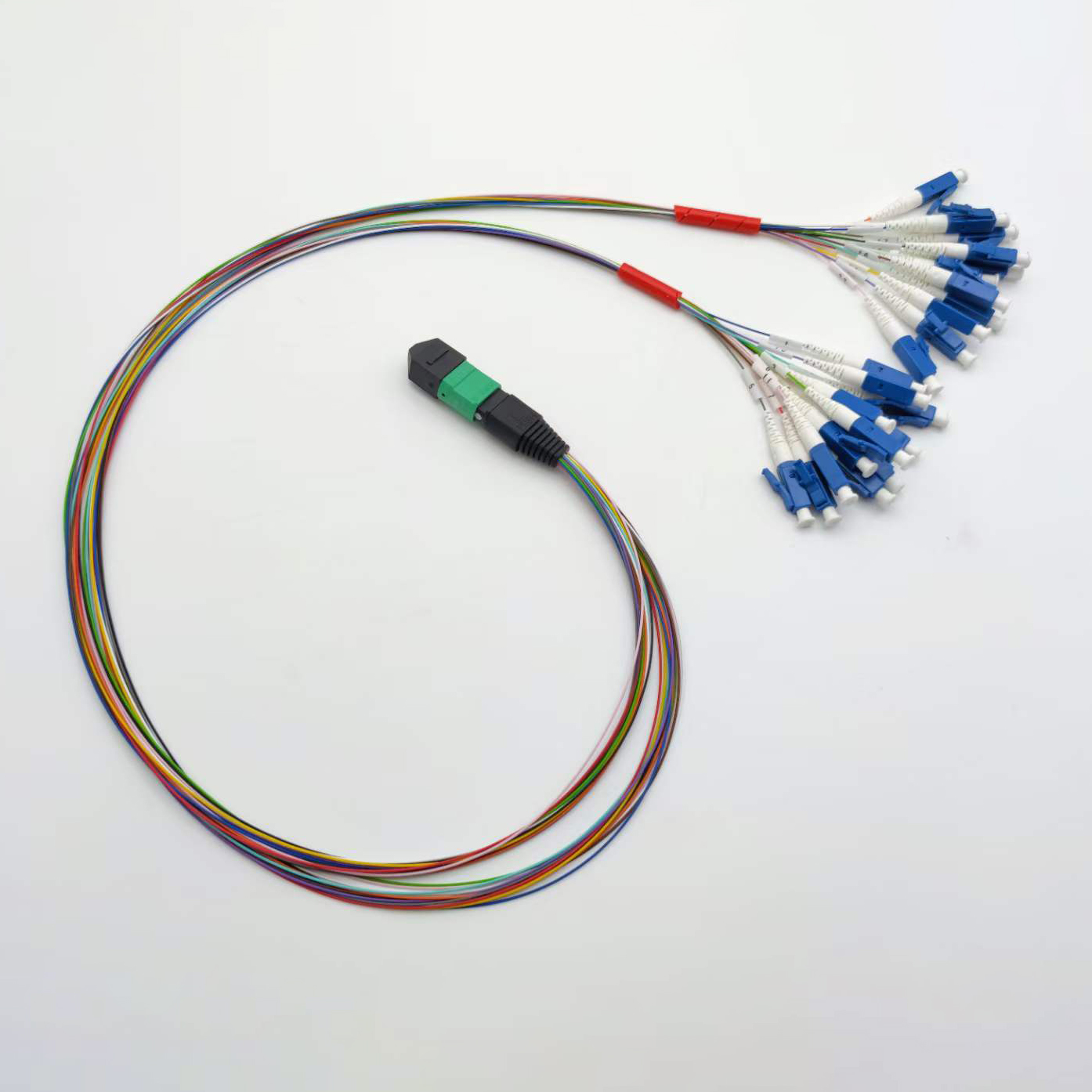

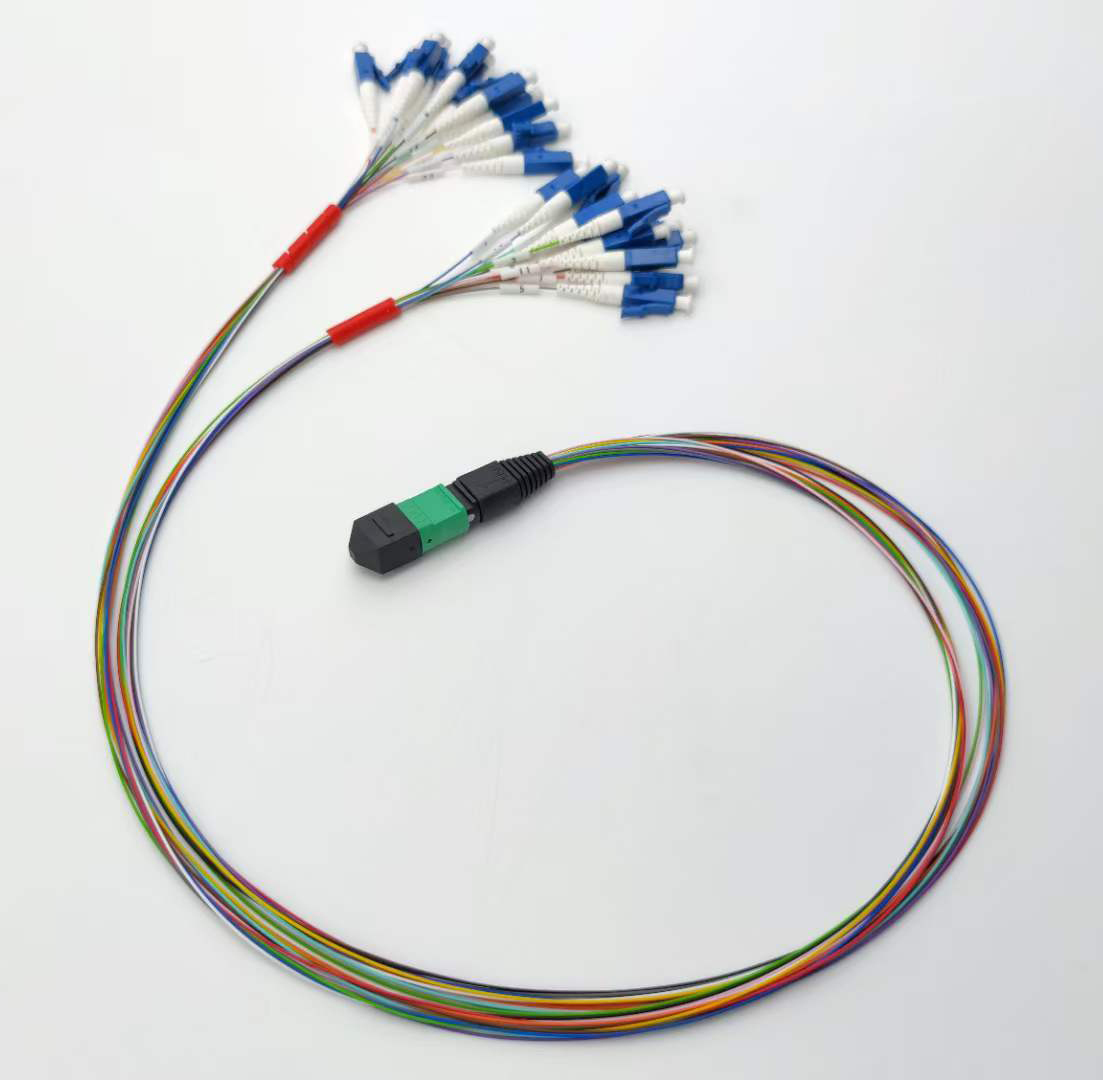

- Connector A: MPO/APC-24 Male MTP/APC-24 Male - Connector A housing color: Standard IL: Green Ultra Low Loss IL: Yellow - Connector B: 24 connectors LC Single mode - Connector B housing color: LC/UPC: Blue color LC/APC: Green color - Fiber type: (12 color code) Single mode G657A1 Single mode G657A2 Other: customized - Cable out-sheath material: LSZH - Polarity: Type B Other optional: Type A, Type C - Fanout length: 0.3m (30cm) - IL: Standard: 0.65dB Ultra Low Loss: 0.35dB - RL: 65dB
Send Inquiry

Product Description

Product Overview
  • Designed for 40G/100G/400G/800G QSFP+ or OSFP+ high-speed transmission connectivity data centers.
  • Optimized for high-speed transmission environments such as banking, AI, and star-link connectivity data centers.
  • 24-fiber harness cable used to connect (12) QSFP+ into a MPO adapter panel and MPO trunk cable.
Technical Features
  • Connectors: Side A MPO/APC-24 or MTP/APC-24 (Male with pin); Side B LC Single Mode (LC/UPC or LC/APC).
  • Fiber Configurations: 24 single mode fibers (G657A1 or G657A2).
  • Polarity & Build: Type B (Type A/C optional), 30cm (0.3m) total length, LSZH out-sheath.
  • Optical Performance: Ultra Low Loss (Elite) 0.35dB, Standard 0.65dB; Return Loss (RL) 65dB.
Applications
  • Bank Data Centers
  • AI Data Centers
  • Star-Link Connectivity Data Centers
  • Metro Control Data Centers
  • High-Speed Train Data Centers
  • Direct Device-to-Switch Connectivity
  • Backbone-to-Device Routing
  • High-Density Patching

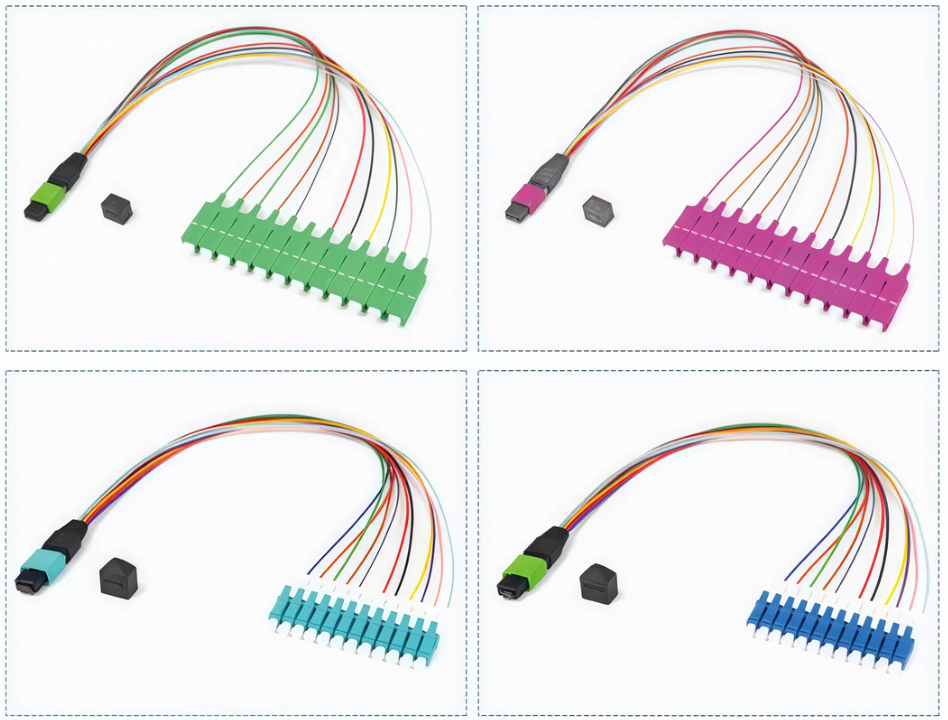

MPO/APC Male to LC Fanout Patch Cord Layout
Specification Reference
Parameter Single Mode (APC Polish) Single Mode (UPC Polish) Multi Mode (PC Polish)
Fiber Count 8, 12, 24 etc. 8, 12, 24 etc. 8, 12, 24 etc.
Fiber Type G652D, G657A1 etc. G652D, G657A1 etc. OM1, OM2, OM3, OM4, etc.
Max. Insertion Loss Elite (Low Loss) Standard Elite (Low Loss) Standard Elite (Low Loss) Standard
IL Value ≤0.35 dB ≤0.75 dB ≤0.35 dB ≤0.75 dB ≤0.35 dB ≤0.60 dB
Return Loss ≥60 dB ≥60 dB N/A
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40°C ~ +80°C -40°C ~ +80°C -40°C ~ +80°C
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull test 1000 times < 0.5 dB
Interchange < 0.5 dB
Anti-tensile force 15kgf
Frequently Asked Questions (FAQ)
What applications are these MPO/APC to LC Fanout Patch Cords designed for?
They are optimized for high-speed transmission connectivity in data centers supporting 10G/40G/100G/400G/800G speeds, including AI data centers, bank data centers, star-link connectivity, metro control, and high-density patching environments.
What is the optical performance regarding Insertion Loss (IL) and Return Loss (RL)?
For Single Mode APC connectors, the Ultra Low Loss (Elite) model features a Max Insertion Loss of ≤0.35 dB, and the Standard version has a Max IL of ≤0.75 dB. The optical Return Loss is ≥60 dB (with typical configurations reaching 65dB).
What fiber types and counts are supported?
This configuration is built with 24 single mode fibers, utilizing either Single Mode G657A1 or G657A2. Other counts such as 8 or 12 fibers and multi-mode options (OM1, OM2, OM3, OM4) are also standard configurations.
What is the polarity and physical dimensions of the patch cord?
The default polarity configuration is Type B, with Type A and Type C available upon request. The total length of the fanout patch cord is 30cm (0.3 meters), featuring a protective Low Smoke Zero Halogen (LSZH) outer sheath.
What are the durability and environmental tolerances of these patch cables?
The cables have a designated operating temperature range of -40°C to +80°C. They exhibit high mechanical durability with a rating of ≥500 mating cycles (and up to 1000 times for insert-pull testing with less than 0.5 dB loss change) and can withstand an anti-tensile force of 15kgf.
