25G SFP28 MMF is a transceiver module that supports a 25 Gigabits per second (Gbps) data rate over multi-mode fiber (MMF) using a specific SFP28 form factor. It is designed for high-speed connections, primarily for data centers, providing 25G Ethernet connectivity and serving as a building block for 100G networks.

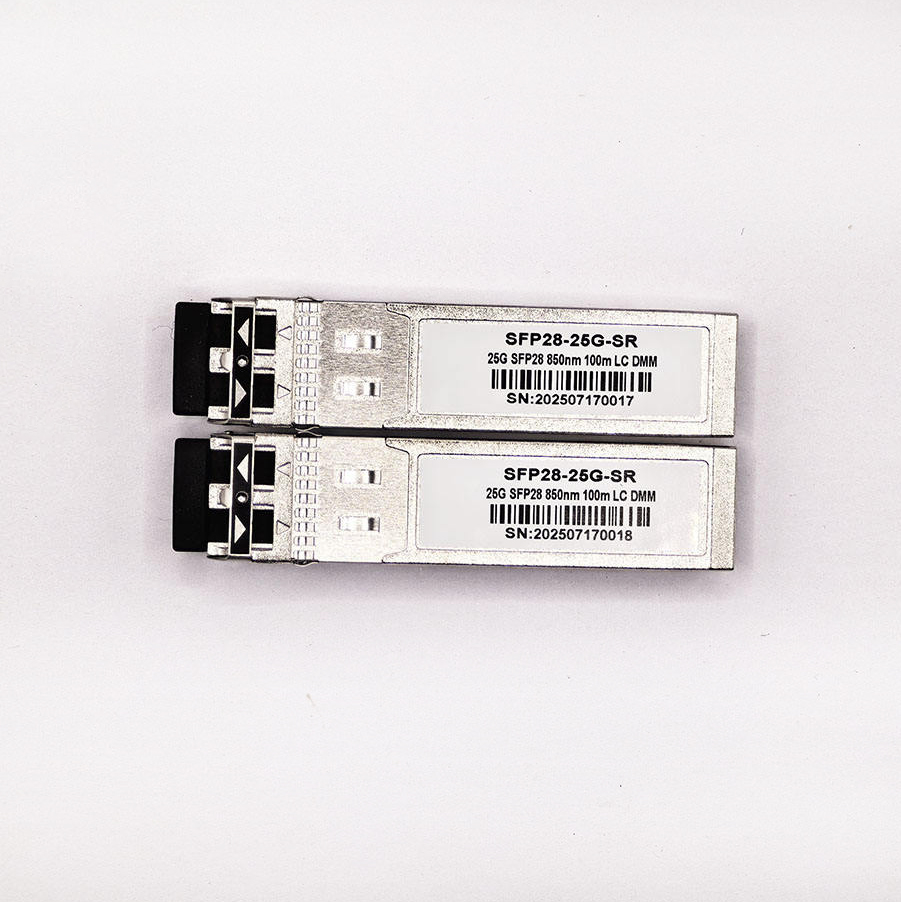

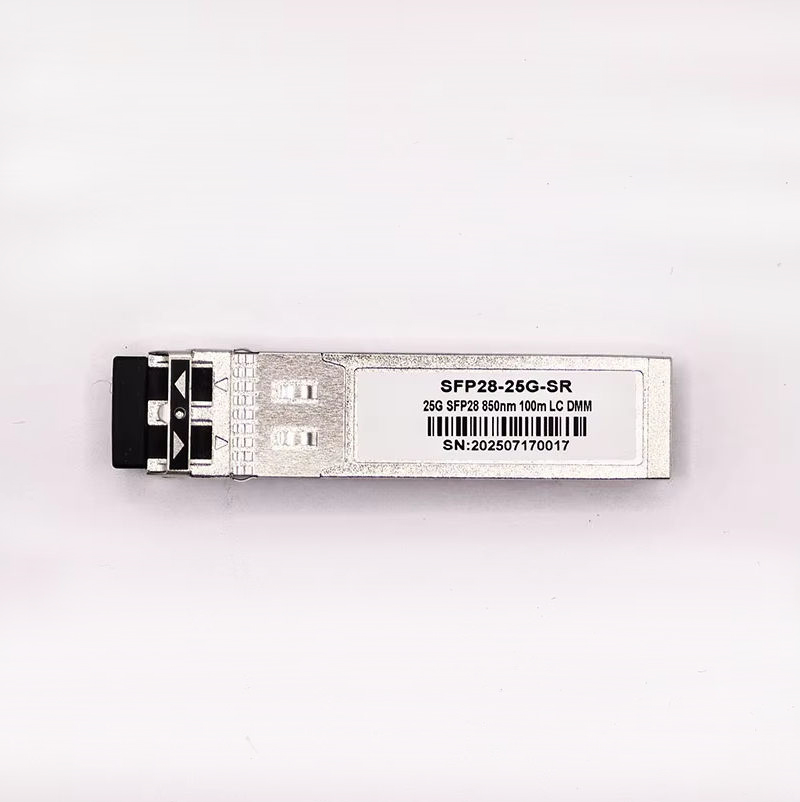

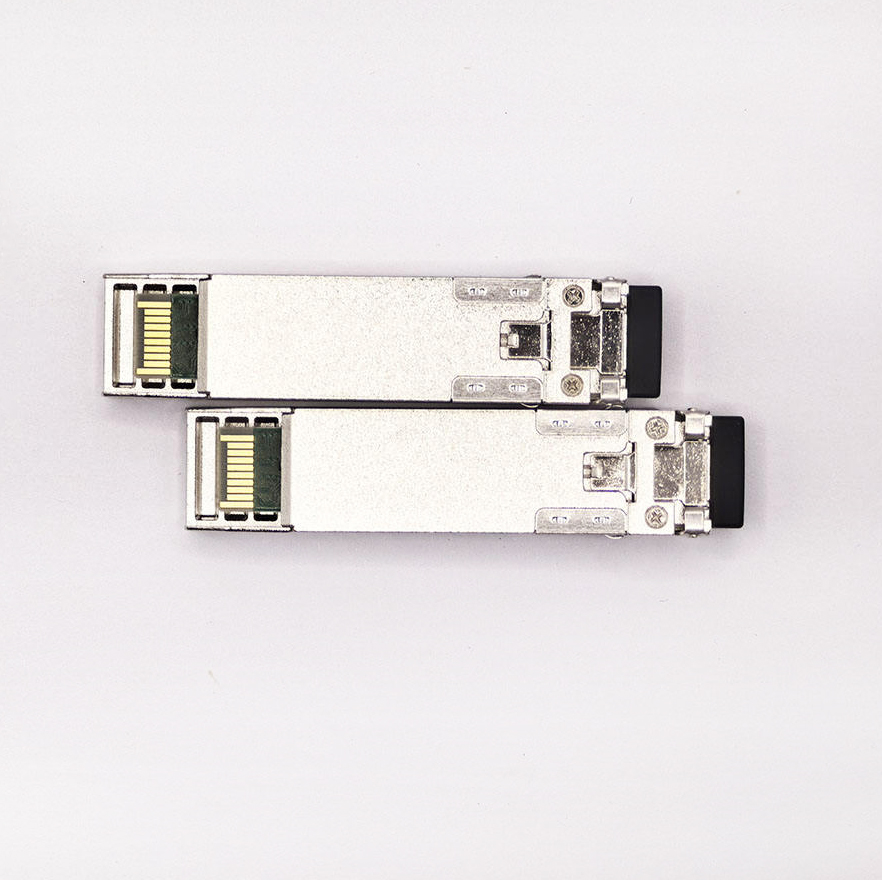

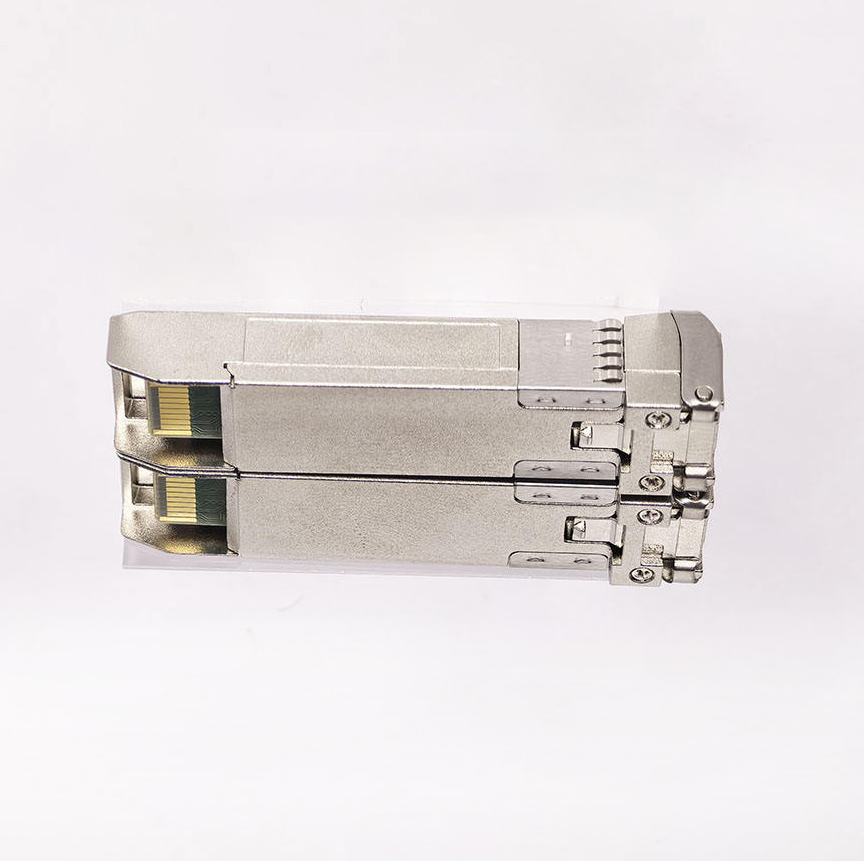

SFP-25G-SR compatible SFP28 transceiver provides 25GBase-SR throughput up to 100m over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector.
25G SFP28 (Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 25 Gigabit Ethernet connectivity options for data center and high-performance computing networks applications. The 25G Modules are based on SFP28 form factor.
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
| Storage Temperature | Ts | -40 | - | 85 | °C |
| Relative Humidity | RH | 5 | - | 95 | % |
| Power Supply Voltage | VCC | -0.3 | - | 4 | V |
| Signal Input Voltage | Vcc-0.3 | - | Vcc+0.3 | V |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
|---|---|---|---|---|---|---|
| Case Operating Temperature | Tcase | 0 | - | 70 | °C | Commercial |
| Power Supply Voltage | VCC | 3.14 | 3.3 | 3.47 | V | |
| Power Supply Current | ICC | - | 300 | mA | ||
| Data Rate | BR | 25.78 | Gbps | |||
| Transmission Distance | TD | - | 100 | m | OM4 or 70m OM3 | |
| Coupled fiber | Multi mode fiber | |||||
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
|---|---|---|---|---|---|---|
| Transmitter | ||||||
| Output Opt. Pwr | POUT | -9.1 | 2.4 | dBm | 1 | |
| Optical Wavelength | λ | 840 | 850 | 860 | nm | |
| Spectral Width (RMS) | σ | 0.6 | nm | |||
| Optical Extinction Ratio | ER | 3.0 | dB | |||
| RIN | RIN | -128 | dB/Hz | |||
| Receiver | ||||||
| Rx Sensitivity | RSENS | -11 | dBm | 2 | ||
| Input Saturation Power (Overload) | Psat | 2.4 | dBm | |||
| Wavelength Range | λC | 770 | 850 | 860 | nm | |
| LOS De -Assert | LOSD | -13 | dBm | |||
| LOS Assert | LOSA | -30 | dBm | |||
| LOS Hysteresis | 0.5 | dB | ||||
| Parameter | Symbol | Min | Typ | Max | Unit | NOTE |
|---|---|---|---|---|---|---|
| Supply Voltage | Vcc | 3.14 | 3.3 | 3.46 | V | |
| Supply Current | Icc | 300 | mA | |||
| Transmitter | ||||||
| Input differential impedance | Rin | 100 | Ω | 1 | ||
| Single ended data input swing | Vin,pp | 180 | 700 | mV | ||
| Transmit Disable Voltage | VD | Vcc - 1.3 | Vcc | V | ||
| Transmit Enable Voltage | VEN | Vee | Vee+ 0.8 | V | 2 | |
| Receiver | ||||||
| Differential data output swing | Vout,pp | 300 | 850 | mV | 3 | |
| LOS Fault | VLOS fault | Vcc - 1.3 | VccHOST | V | 4 | |
| LOS Normal | VLOS norm | Vee | Vee+0.8 | V | 4 | |
