- Special design for MPO MTP connector.
- 500+ cleaning times per unit.
- Clean the MPO MTP connector.
- Remove 99% stains.
- Mini size, save space.
- Color: blue.
- Transparent casing—aesthetically pleasing and easy to observe.

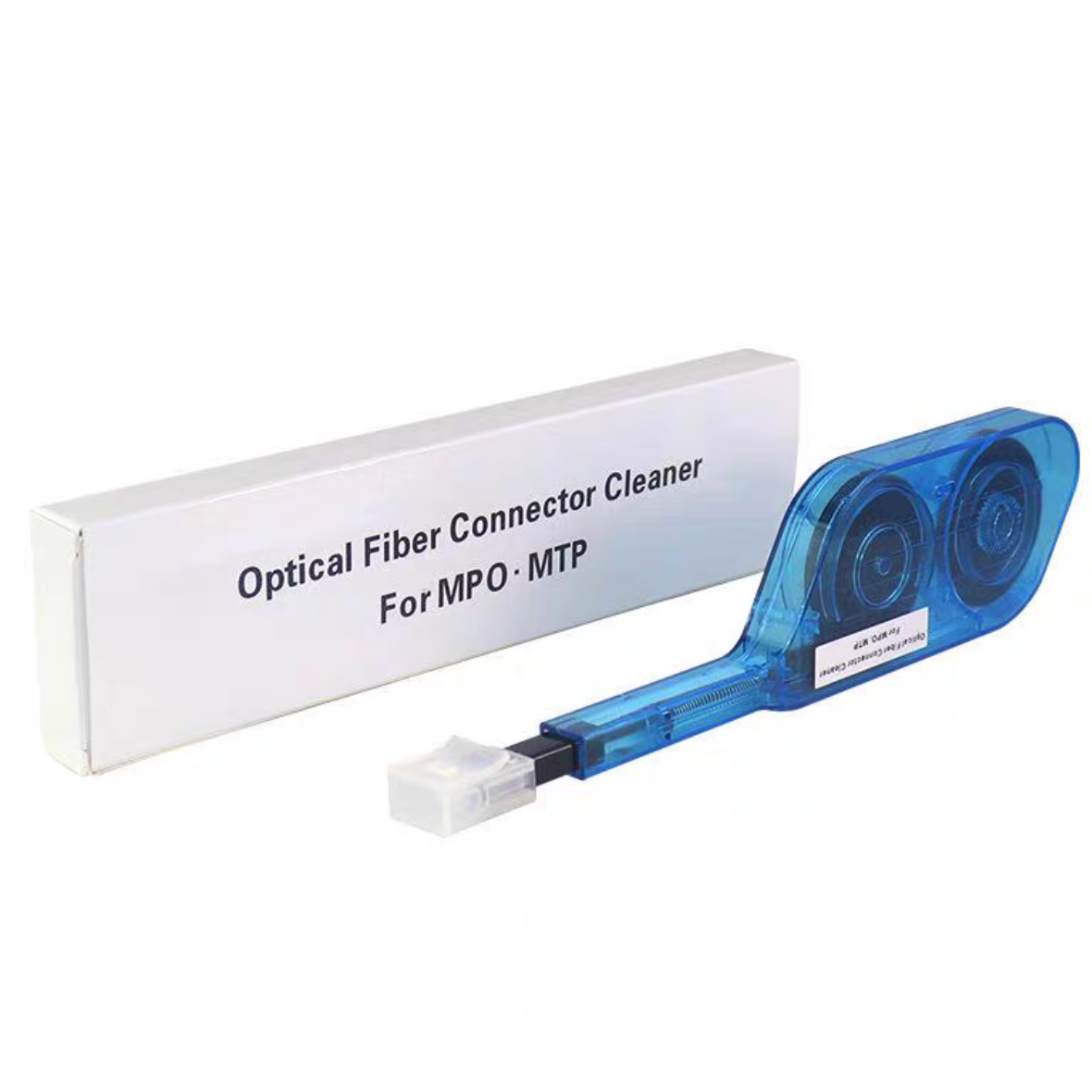

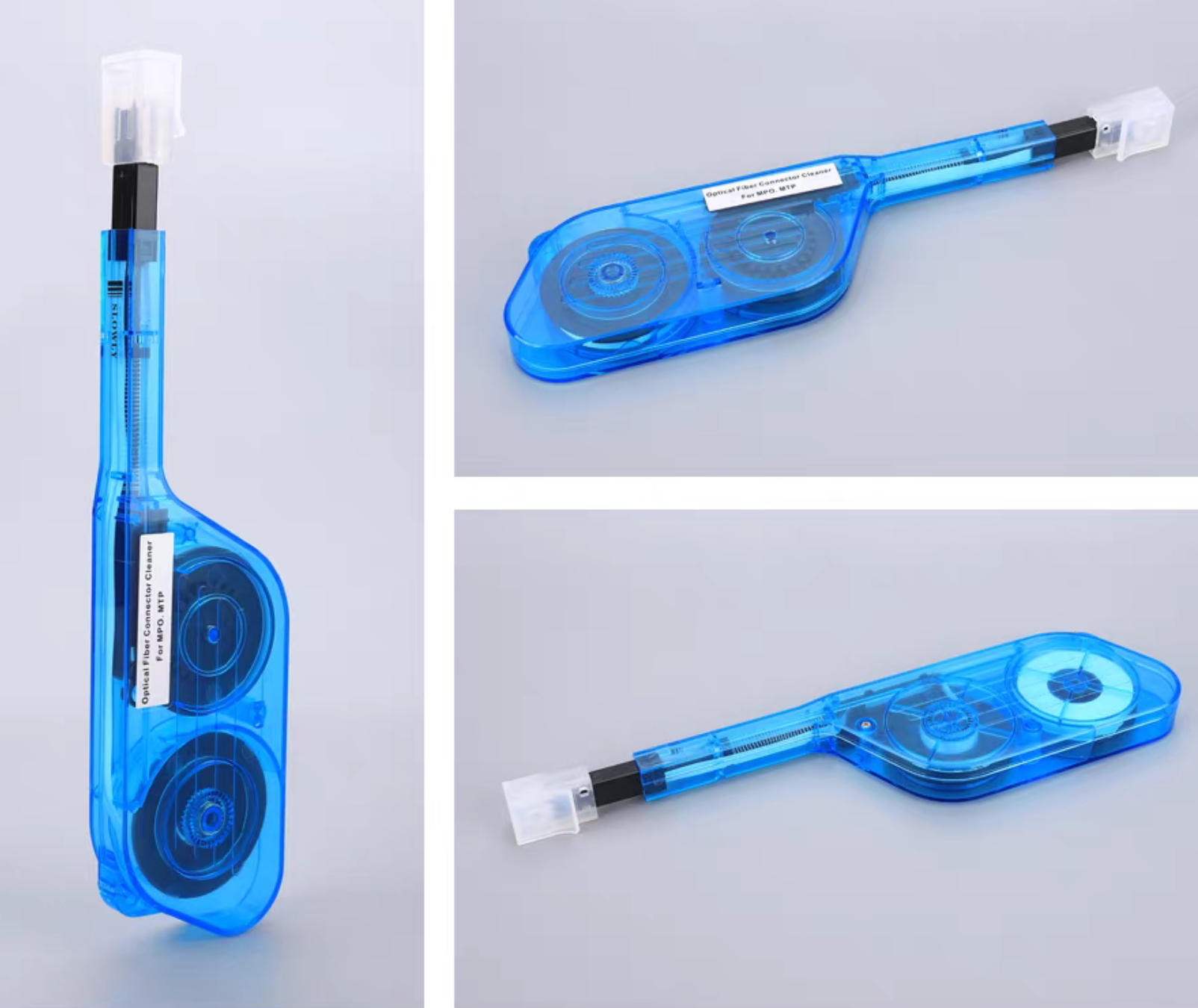

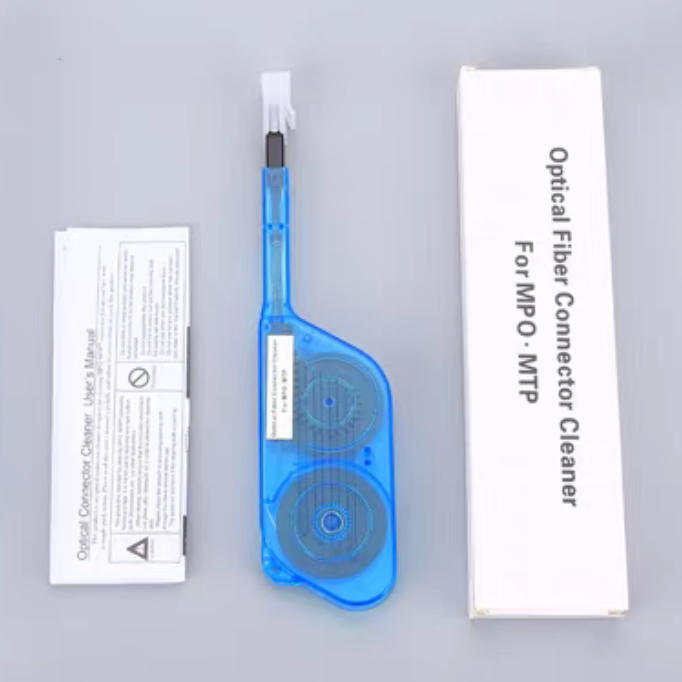

The MPO MTP fiber optic connector one-click cleaner pens are a high-performance device that special designed for cleaning the ferrule end-faces of MPO MTP fiber optic connectors.
They are cost effective tool for cleaning fiber end-faces without the use of alcohol.
They saves time by effectively cleaning all 12/24 fibers at once.
The MTP MPO fiber optic connector one-click cleaner pen is designed to clean both exposed jumper ends and connectors in Adapters.
They are dry cloth cleaners specially designed to clean single connector residing in an adapter, faceplate or bulkhead.
They are simple to use and highly effective at removing oil and dust contaminants that can negatively impact optical performance.
Small size, save space, easy to use.
Transparent casing — aesthetically pleasing, and allows for easy monitoring of the remaining tape supply.
Why Connector Cleaning is Essential
For high-speed optical transfer and WDM, there is more and more energy of over 1W output power from laser LD. Pollution and dust on the end face can lead to severe operational issues.
Fiber may fuse because of pollution and dust heating. (It is limited that the fiber connectors and adapters should suffer over 75 ℃.)
It can cause damage to the laser equipment and influence the communication system because of light reflex (OTDR is very sensitive).
Applications & Specifications
Applications
Clean multimode and single-mode MPO MTP fiber optic connectors end-face.
Clean MPO MTP connectors in adapter.
Clean exposed MPO MTP ferrules.
Great addition to cleaning kits.
Physical Parameters
Dimensions
215 * 51 * 25 mm
Weight
62 g
Color
Blue
Frequently Asked Questions (FAQ)
What is the primary function of the MPO MTP one-click cleaner pen?
The MPO MTP fiber optic connector one-click cleaner pen is a high-performance device specifically designed to clean the ferrule end-faces of both multimode and single-mode MPO MTP fiber optic connectors.
Can this tool clean MPO MTP connectors when they are inside adapters?
Yes. This cleaner pen is specially designed to clean both exposed jumper ends and connectors residing inside adapters, faceplates, or bulkheads.
Is alcohol required to clean the fiber end-faces with this device?
No, these are dry cloth cleaners designed to remove oil and dust contaminants effectively without the use of alcohol, making them a cost-effective and safe cleaning solution.
How does dust pollution affect fiber connectors under high laser power?
In systems with laser output power exceeding 1W, dust and pollution on the end-face absorb energy, causing localized heating. This can fuse the fiber since connectors and adapters are limited to temperatures under 75 ℃. It also triggers light reflections that can damage lasers and interfere with communication systems.
How many fibers can be cleaned at one time with the one-click pen?
It is highly efficient and saves time by cleaning all 12 or 24 fibers of the MPO MTP connector simultaneously with a single click.
How does the user monitor the remaining cleaning tape supply?
The MPO MTP cleaner pen features a transparent casing, which makes it easy to monitor the remaining tape level visually.
