2.5mm universal connector • Operates either in CW or Pulsed • Constant output power • Lower Battery warning • Long battery life • Crash-proof and dust-proof design for laser head • Laser case ground design prevents ESD damage • Portable and rugged, easy to use

Product Description

Product Specifications
Item VFL-08-01 VFL-08-10 VFL-08-20 VFL-08-30 VFL-08-50
Wavelength 650nm ± 20nm
Output Power > 1mW > 10mW > 20mW > 30mW > 50mW
Dynamic Distance 2~ 5 km 8~12km 12~15km 18~22km 22~30km
Mode Continuous Wave (CW) and Pulsed
Fiber Type SM
Connector 2.5mm
Packaging Size 210*73*30
Weight 150g
Power Supply AA * 2
Operating Temperature -10 -- +50 °C, < 90%RH
Storage Temperature 20 -- +60 °C, < 90%RH
Key Features & Advantages
  • Long battery life
  • Crash-proof and dust-proof design for laser head
  • Laser case ground design prevents ESD damage
  • Portable and rugged, easy to use
  • Sliding type switch design
  • Allows control of the red pen as preferred
  • Frosted body, anti-fall, and wear-resistant
  • The body is constructed from quality frosted material to prevent damage during use
  • Available in sleek black color
  • Crafted using high-quality Aluminum alloy
  • Compact, lightweight, and user-friendly
The Pen type VFL's extremely high efficiency guarantees prolonged operation with two standard AAA alkaline batteries, typically providing 50 hours of uninterrupted operation. Priced to accommodate the tightest budgets, the VFL-x Pocket Pal is a truly affordable way to locate faults in OTDR dead zones. Its effectiveness justifies purchasing one for just about every fiber technician. New technology with AL composite material makes the PEN lighter, while the imported Mitsubishi LD Laser ensures more gathered light signals and less attenuation.

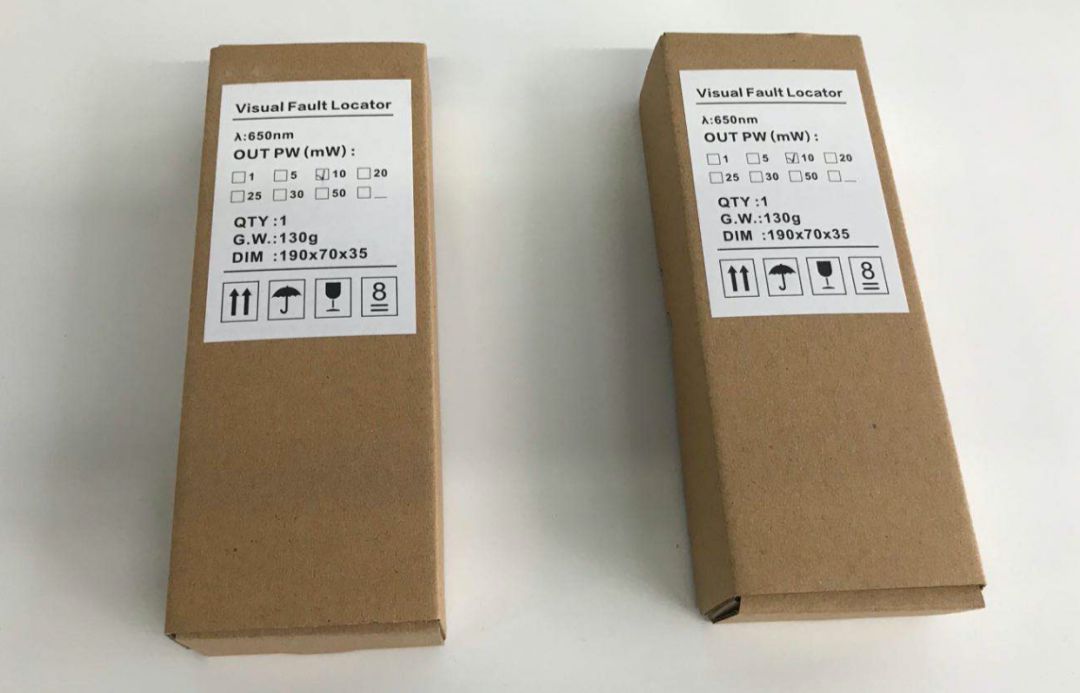

Visual Fault Locator Pen Type
  • 2.5mm universal connector
  • Operates either in CW (Continuous Wave) or Pulsed mode
  • Constant output power
  • Lower Battery warning indicator
  • Strong light source with penetrating power
  • Equipped with an imported laser head
  • Easily penetrates up to 100 thousand meters of fiber
  • Stable performance with a user-replaceable ceramic tube
Applications
  • Test Lab of optical fibers
  • Maintenance in Telecom
  • Maintenance in CATV systems
  • Other Fiber Optic Measurements
  • Direct fiber insertion through the Fiber Connector
Functions & Operations
  • Reference targeting for multi-core cables
  • End-to-end fiber path identification
  • Location of breaks and micro-bends in pigtails/fibers
  • Simplified operational setup
Product Gallery
Visual Fault Locator Detail 1

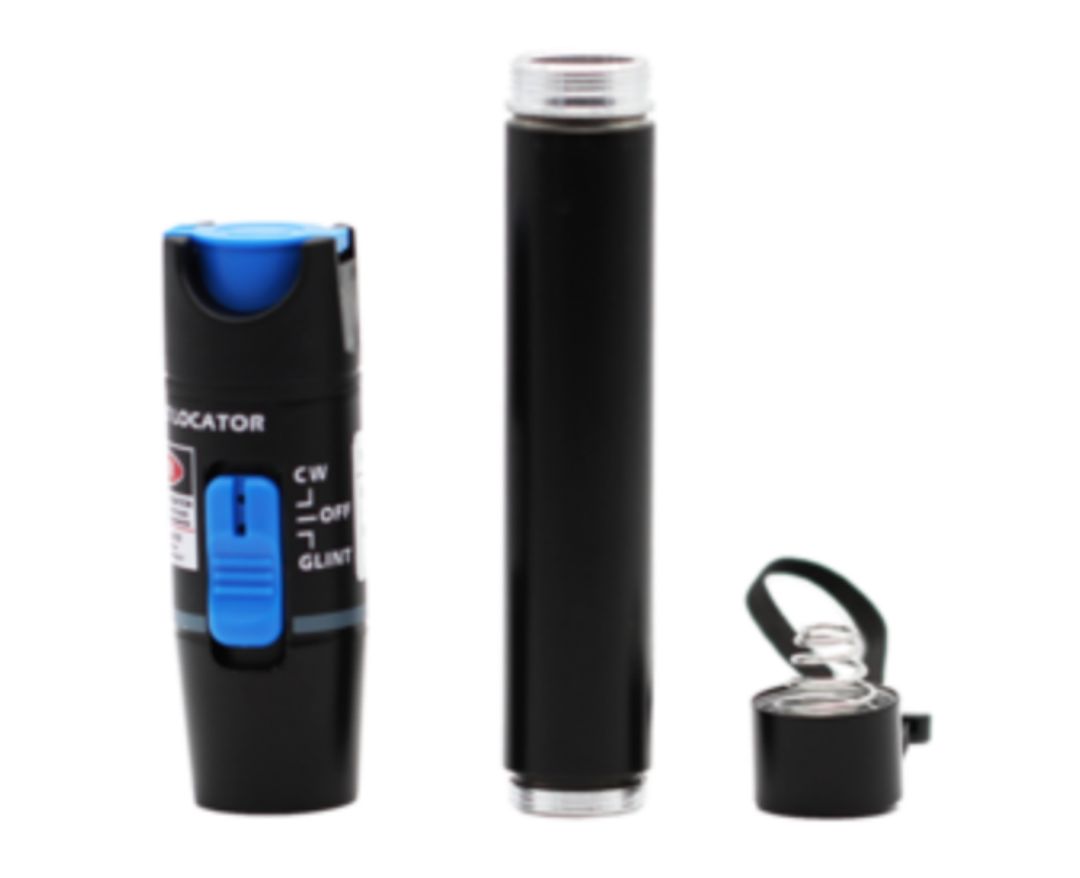

Visual Fault Locator Detail 2

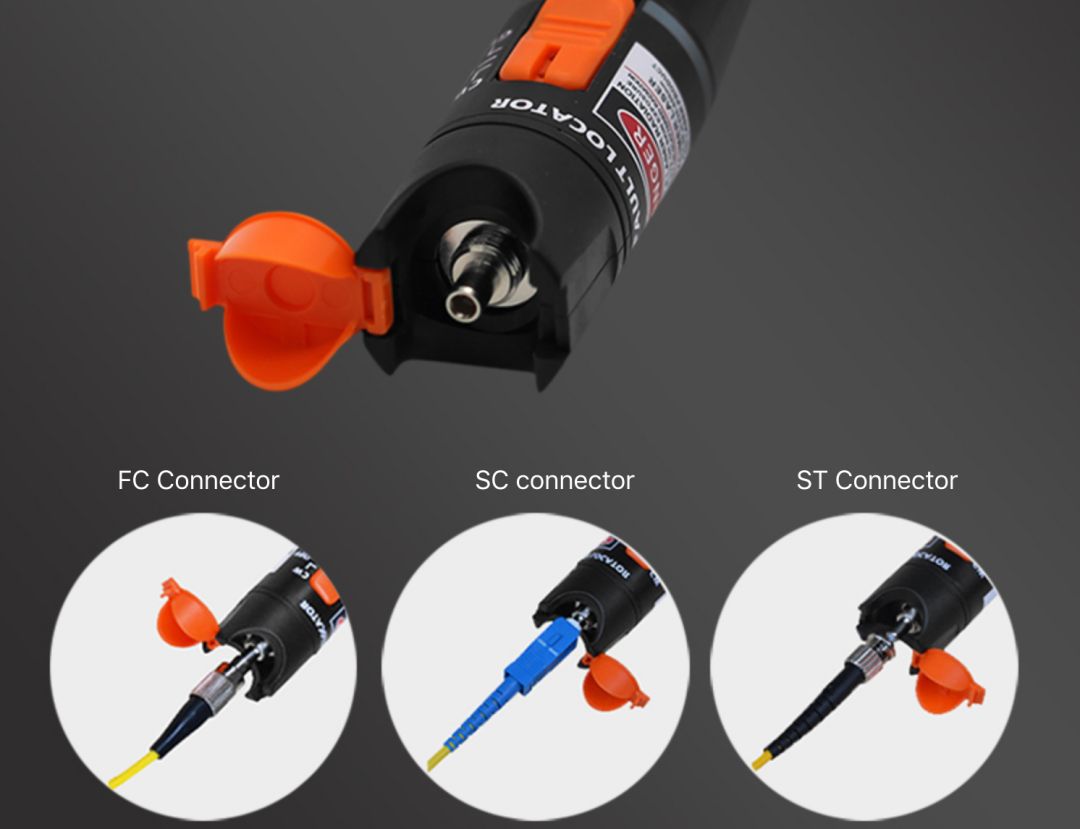

Visual Fault Locator Detail 3
Visual Fault Locator Detail 4
Visual Fault Locator Detail 5
Important Operating Notes
It is strictly prohibited to direct the laser beam towards human eyes. Please take necessary precautions to avoid static electricity release during use.
The output power is measured using multi-mode optical fiber at an ambient temperature of 23°C ± 3°C.
The detecting range of the laser may vary depending on the type and condition of the optical fibers used.
Working hours are calculated using 2*AAA batteries at 23°C ± 3°C. Actual battery life may vary slightly depending on battery brand and quality.
Frequently Asked Questions (FAQ)
What are the primary applications of the VFL-08 Series?
The VFL-08 Series Visual Fault Locator is primarily used for identifying breaks, micro-bends, and end-to-end fiber path connection in single-mode or multi-mode optical fibers, making it ideal for telecom and CATV maintenance.
What type of connector is compatible with this VFL?
This Visual Fault Locator features a 2.5mm universal connector, designed to easily interface with popular optical fiber connectors.
How long is the typical operational battery life?
Due to its highly efficient design, it guarantees prolonged operation, typically delivering up to 50 hours of uninterrupted use with standard batteries.
Can the internal ceramic tube be replaced?
Yes. The device is designed for easy maintenance, allowing users to replace the internal ceramic tube manually to extend the overall service life.
Does it support different light output modes?
Yes, it operates in both Continuous Wave (CW) mode for steady illumination and Pulsed mode to help easily distinguish the fault signal under bright ambient light.
Are there safety precautions when using this laser pen?
Yes. It is strictly prohibited to point the laser directly at the eyes of humans or animals. Standard ESD precautions should also be followed to prevent static electricity discharge.
