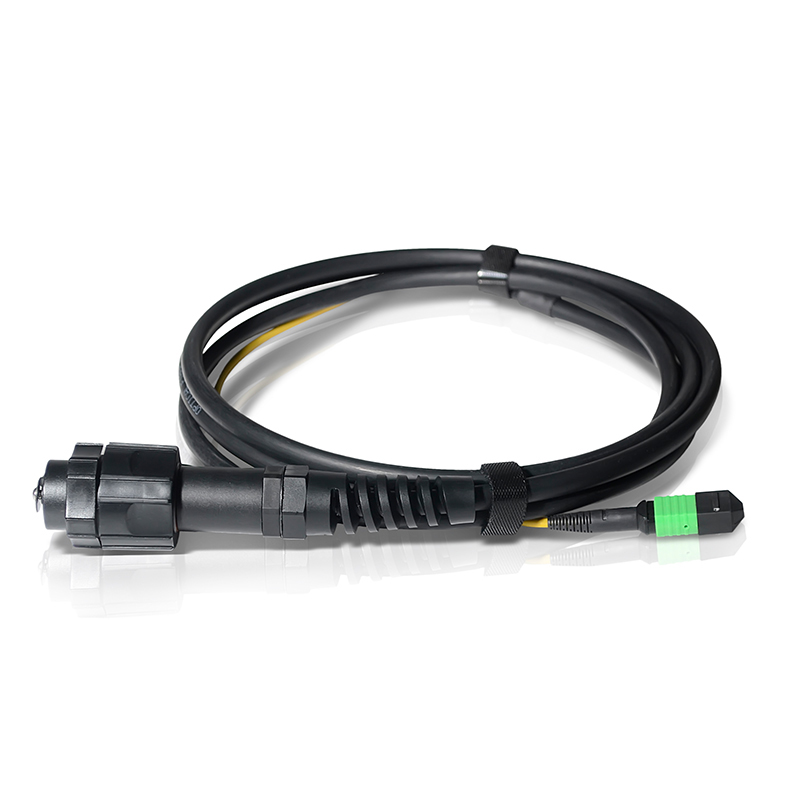

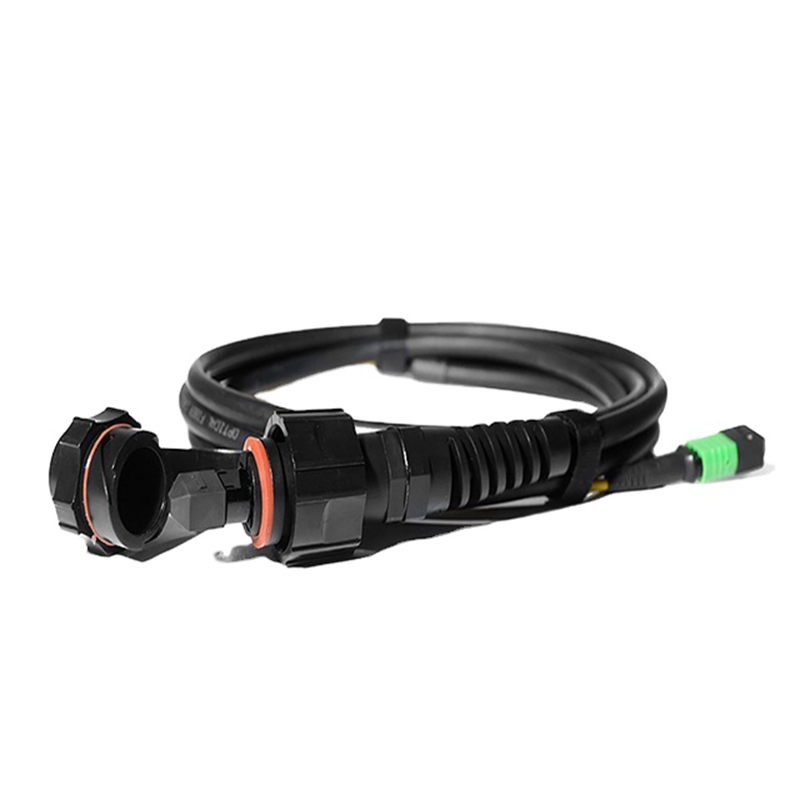

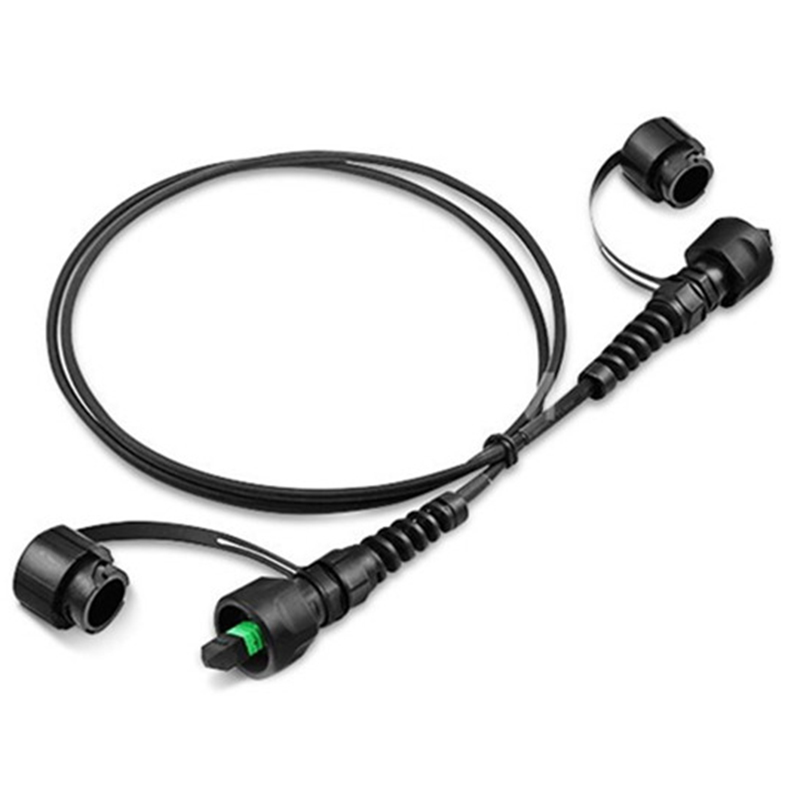

ODVA compliant connectors specifically for harsh environment applications, such as WiMax, Long Term Evolution (LTE), and Remote Radio Heads using Fiber To The Antenna (FTTA) connectivity, which require rugged connector and cable assemblies suitable for outdoor use.

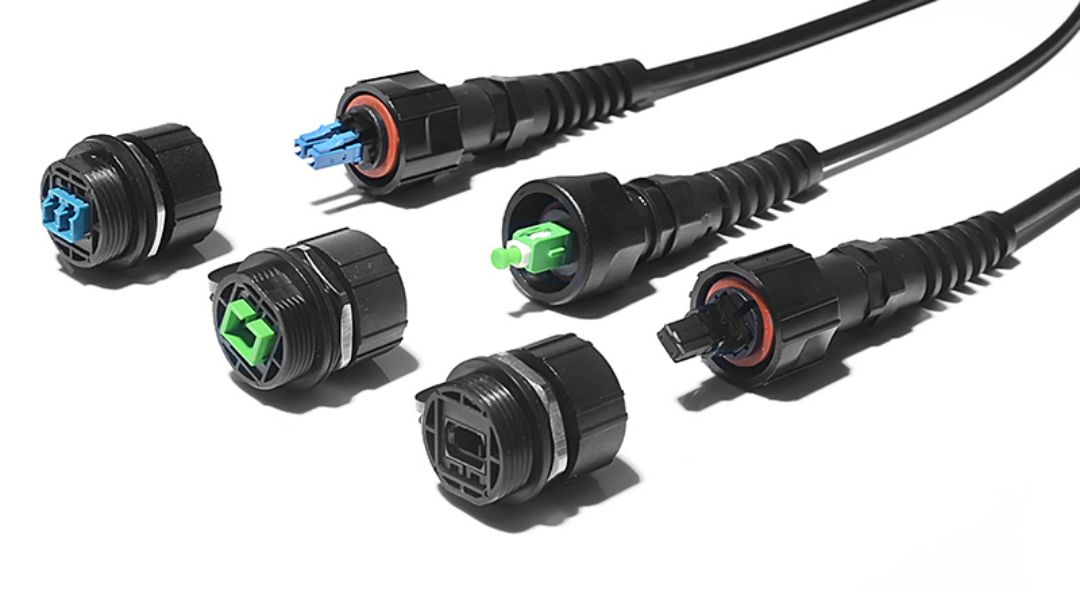

Designated the LC, SC and MPO series, we offers the broadest ODVA compliant fiber optic connector portfolio in the industry, providing both full-metal and plastic versions of the IP67-rated interconnects.

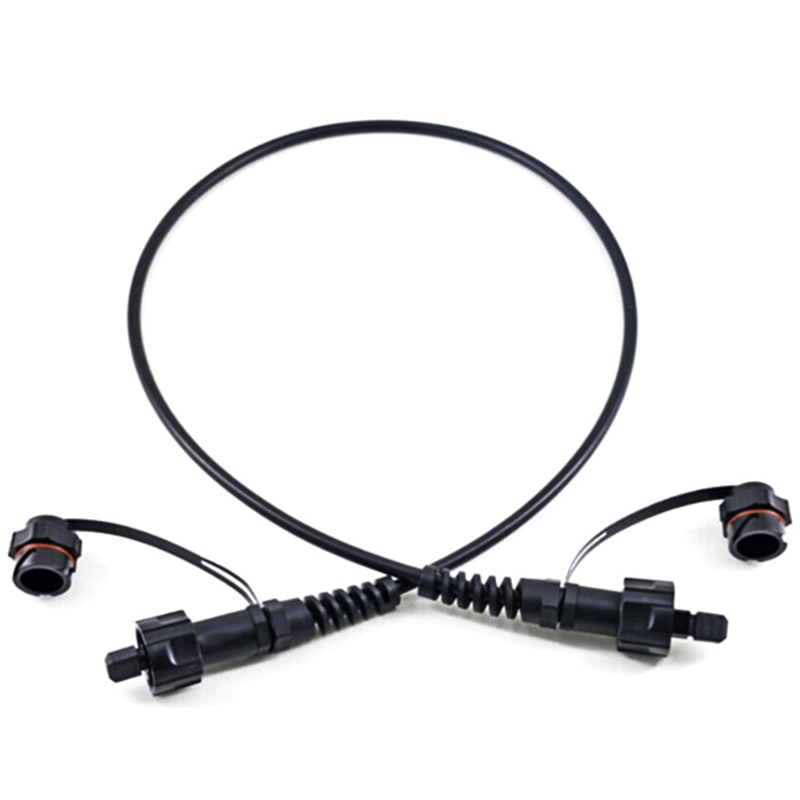

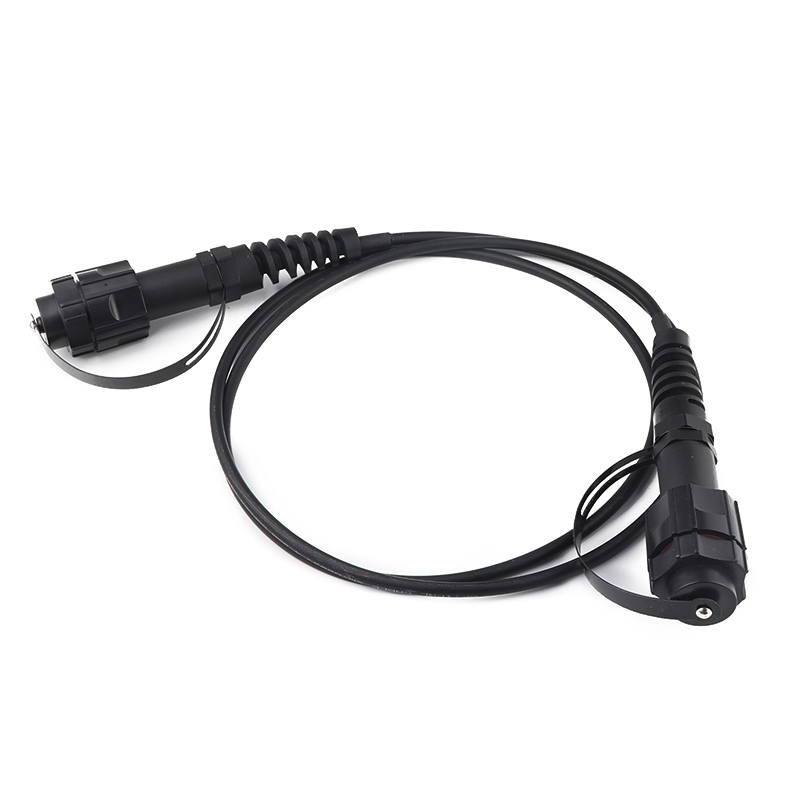

Sealed Circular IP 67 ODVA Duplex LC fiber patch cable assemblies are available in both single mode and multimode version.

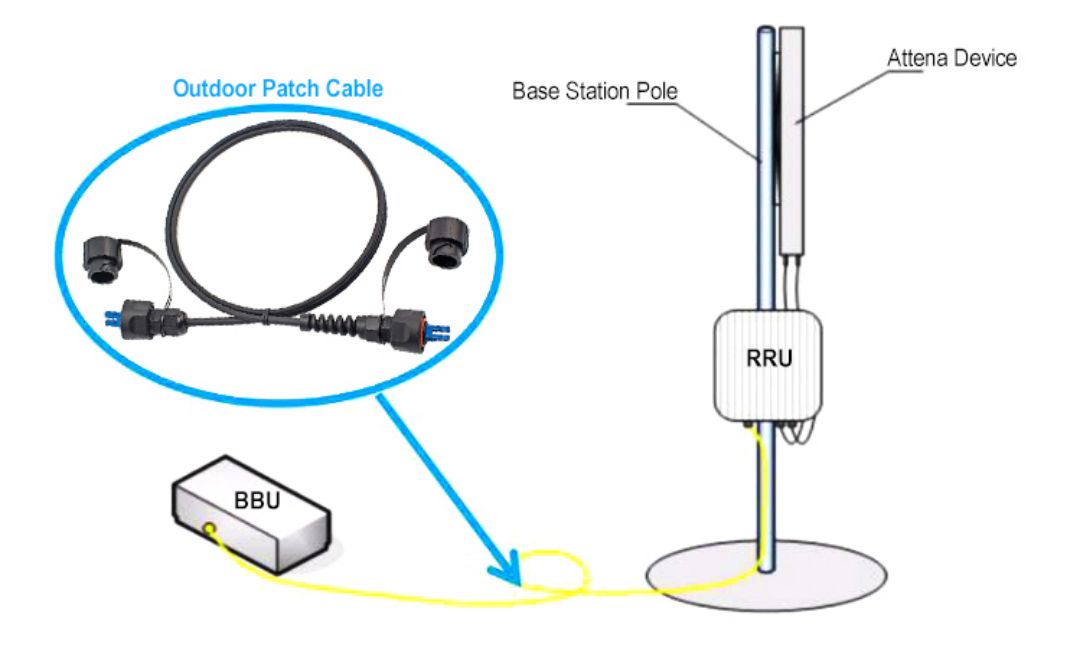

This ODVA LC is a typical outdoor use fiber cable, suitable for different temperature and weather, especially ideal for FTTA and harsh environment use.

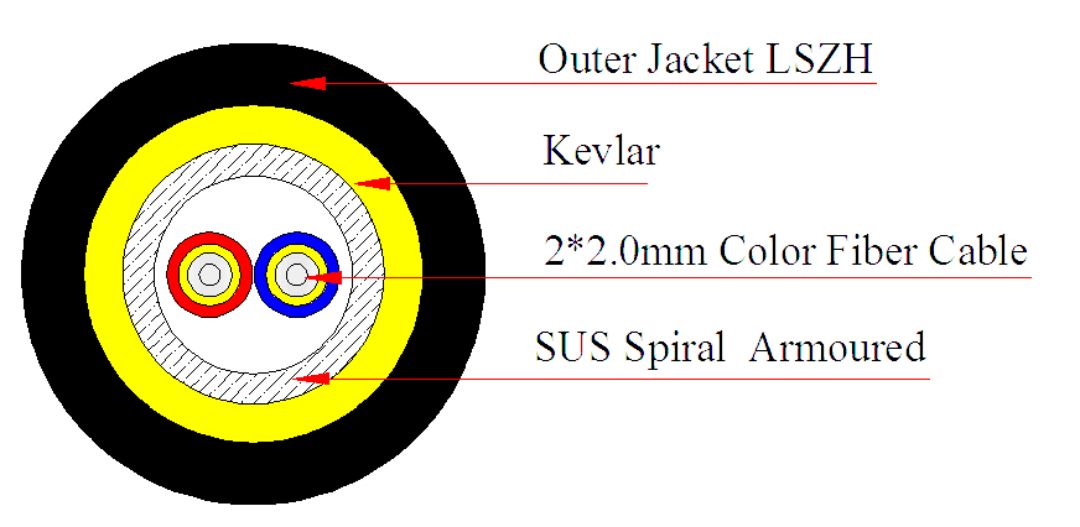

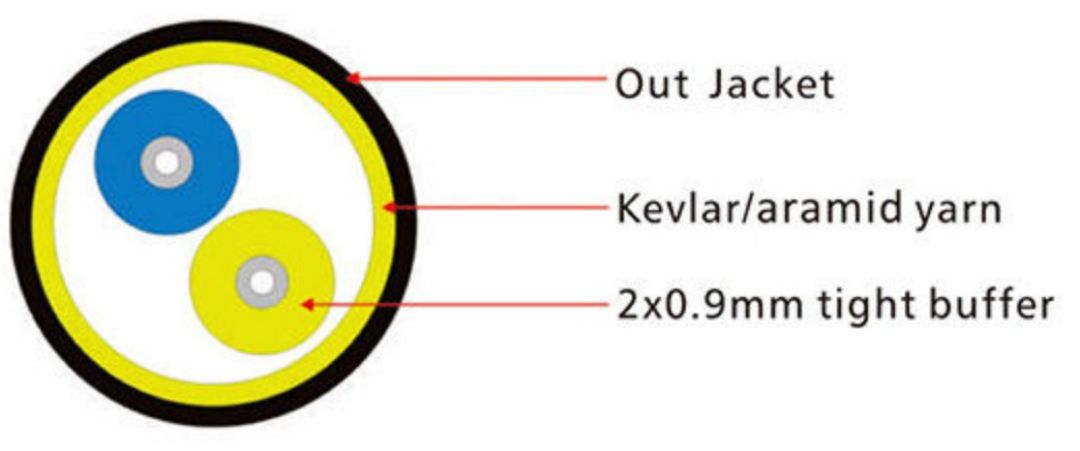

Our IP 67 ODVA LC duplex cables are designed as per IEC 61076-3-106 interfaces standard, integrated with quality LC fiber connectors with loss optical loss; and designed a rugged and armored PE jacketed optical cable body.
| Fiber Count | 1 core, 2 cores, 12 cores | |
| Fiber Type | SM G652D, SM G657A1, SM G657A2, SM G657B3, OM1 MM 62.5/125, OM2 MM 50/125, OM3 MM 50/125, OM4 MM 50/125, OM5 MM 50/125 | |
| Connectors | ODVA SC, ODVA DLC, ODVA MPO | |
| Cable Diameter | 4.8mm, 5.0mm, 7.0mm | |
| Cable Jacket | PVC, LSZH, TPU. | |
| Cable Length | 1~500m or Customized | |
| Cable Count | Out sheath Diameter (MM) | Weight (KG) | Min. allowable Tensile Strength (N) | Min. allowable Crush Load (N/100mm) | Min. Bending Radius (MM) | |||
|---|---|---|---|---|---|---|---|---|
| short term | long term | short term | long term | short term | long term | |||
| 2 | 7.0±0.2 | 68 | 1000 | 600 | 2000 | 3000 | 20D | 15D |
| Fiber counts | Cable diameter (mm) | Weight (kg/km) | Tensile strength(N) | Crush Resistance (N/100mm) | Minimum bending radius (mm) | |||
|---|---|---|---|---|---|---|---|---|
| Short-term | Long-term | Short-term | Long-term | Static | Dynamic | |||
| 1 | 4.8 | 42 | 600 | 400 | 200 | 300 | 60 | 30 |
| 2 | 4.8 | 43 | 600 | 400 | 200 | 300 | 60 | 30 |
| 12 | 4.8 | 43 | 600 | 400 | 200 | 300 | 60 | 30 |
| Item | Single mode Parameter | Multi Mode Parameter |
|---|---|---|
| Fiber type | G652D, G655, G657A1, G657A2, G657B3 | OM1, OM2, OM3, OM4, OM5 |
| IL (Insertion Loss) | Typical: ≤0.15dB Max.: ≤0.3dB |
Typical: ≤0.15dB Max.: ≤0.3dB |
| RL (Return Loss) | APC: ≥60dB UPC: ≥50dB |
PC: ≥30dB |
