• 100% compatibel with Nokia NSN waterproof fiber optic connector for FTTA Telecom tower. • Standard duplex LC uni-boot connector. • Available Single mode and Multimode. • IP65 protection, salt-mist proof, humidity proof. • Broad temperature range and wide range of indoor and outdoor Patch cables. • Easy Operation, reliable and cost-effective Installation. • The connector of side A is DLC, and side-B can be LC,FC,SC. • Used for 3G 4G 5G base station BBU, RRU, RRH, LTE.
Send Inquiry

Product Description

Overview & Key Features
⚙️
The Compatible Nokia NSN fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/ TD-SCDMA/ WIMAX/ GSM) tailored products that can be meet the FTTA (fiber to the antenna) program requirements for outdoor environment conditions and adverse weather conditions. They are well suited for Industrial and Aerospace and Defense applications.
📡
The Compatible Nokia NSN fiber connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G, 5G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications. The product however, is not limited to the above applications.
🛡️
The Compatible Nokia NSN cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP65. They are well suited for Industrial and Aerospace and Defense applications.
Applications
📶
Fiber-to-the-Antenna (FTTA)
Latest and next-generation mobile communication systems (GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE, etc.) deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.
🏭
Automation and industrial cabling
Provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of shock, strongest vibration, or accidental misuse.
📹
Surveillance systems
Security camera manufacturers choose ODC connectors for its compact size and robust design. ODC assemblies are easy to install even in areas difficult to access and provide highest installation safety.
🚢
Naval and ship building
The high corrosion resistance convinced both naval and civil ship builders to use ODC assemblies for on-board communication systems.
🎥
Broadcast
Offers a range of mobile cabling systems and ODC assemblies for temporary cable installations required for the broadcasting of sport events, car racing, etc. and for temporary connections in case of natural hazards.
Technical Highlights
✓
Standard duplex LC uni-boot connector.
✓
Available Single mode and Multimode.
✓
IP65 protection, salt-mist proof, humidity proof.
✓
Broad temperature range and wide range of indoor and outdoor Patch cables.
✓
Easy Operation, reliable and cost-effective Installation.
✓
The connector of side A is DLC, and side-B can be LC, FC, SC.
✓
Used for 3G 4G 5G base station BBU, RRU, RRH, LTE.
Compatible Nokia NSN fiber optic connector

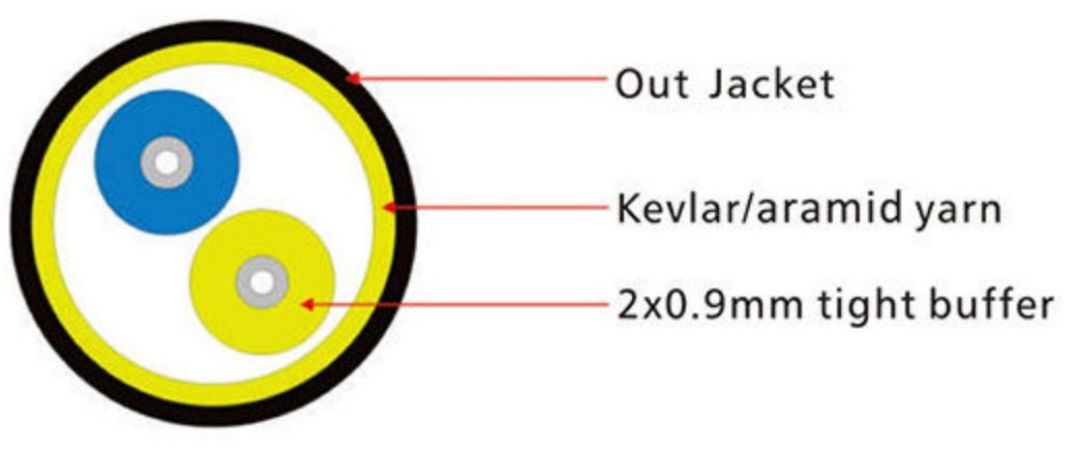

Compatible Nokia NSN cable assembly

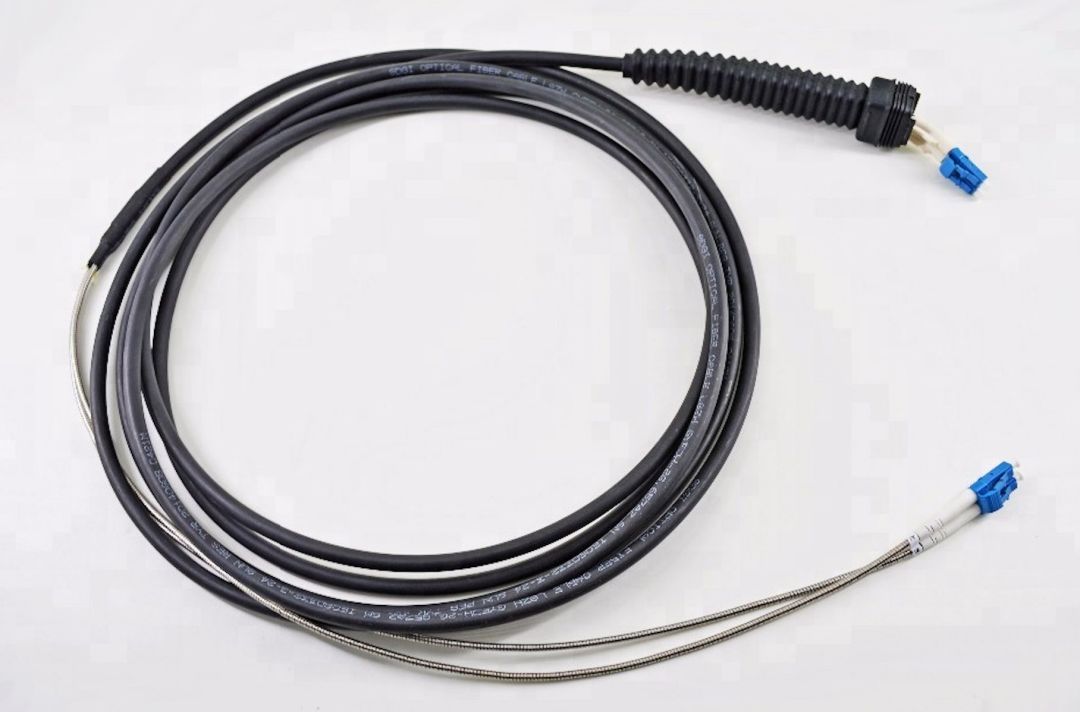

Fiber optic connector detailed view
Optical Specifications
Item Parameter (Single Mode) Parameter (Multi Mode)
Fiber type G652D, G655, G657A1, G657A2, G658B3 OM1, OM2, OM3, OM4, OM5
IL (Insertion Loss) Typical: ≤0.15dB
Max: ≤0.3dB		 Typical: ≤0.15dB
Max: ≤0.3dB
RL (Return Loss) APC: ≥60dB
UPC: ≥50dB		 PC: ≥30dB
Mechanical & Physical Properties
Items Specification Detail Cable Diameter Weight
2 cores - 5.0mm 25.00kg/km
4 cores - 5.0mm 25.00kg/km
6 cores - 5.0mm 25.00kg/km
8 cores - 5.5mm 30.00kg/km
10 cores - 5.5mm 32.00kg/km
12 cores - 6.0mm 38.00kg/km
Storage temperature (℃) -20 to +60
Min Bending Radius (Long term) 10D
Min Bending Radius (Short term) 20D
Min allowable Tensile Strength (Long term) 200 N
Min allowable Tensile Strength (Short term) 600 N
Crush Load (Long term) 200 N/100mm
Crush Load (Short term) 1000 N/100mm
Frequently Asked Questions (FAQ)
What applications are these compatible Nokia NSN fiber connectors designed for?
They are designed for FTTA (fiber to the antenna) in next-generation mobile base stations (3G/4G/5G/WiMax, LTE, WCDMA, TD-SCDMA), as well as industrial cabling, surveillance systems, naval/ship building, and broadcast setups.
What environmental protection standards do these assemblies meet?
They meet the IP65 protection class, ensuring they are dust-tight and protected against water jets, salt-mist, and humidity in adverse outdoor weather conditions.
What fiber types and modes are available?
They are available in Single Mode (G652D, G655, G657A1, G657A2, G658B3) and Multimode (OM1, OM2, OM3, OM4, OM5).
What are the insertion loss (IL) and return loss (RL) specifications?
The insertion loss has a typical value of ≤0.15dB and a max value of ≤0.3dB for both single and multimode. The return loss is APC ≥60dB / UPC ≥50dB for single mode, and PC ≥30dB for multimode.
What connector interfaces can be used on Side B?
While Side A is a DLC (Duplex LC) connector, Side B can be customized with LC, FC, or SC connectors depending on your requirements.
How robust are these cable assemblies for mechanical stress?
They are highly robust, offering a short-term tensile strength of up to 600N, a short-term crush load resistance of 1000N/100mm, and have passed rigorous tests for vibration, shock, and salt mist.
