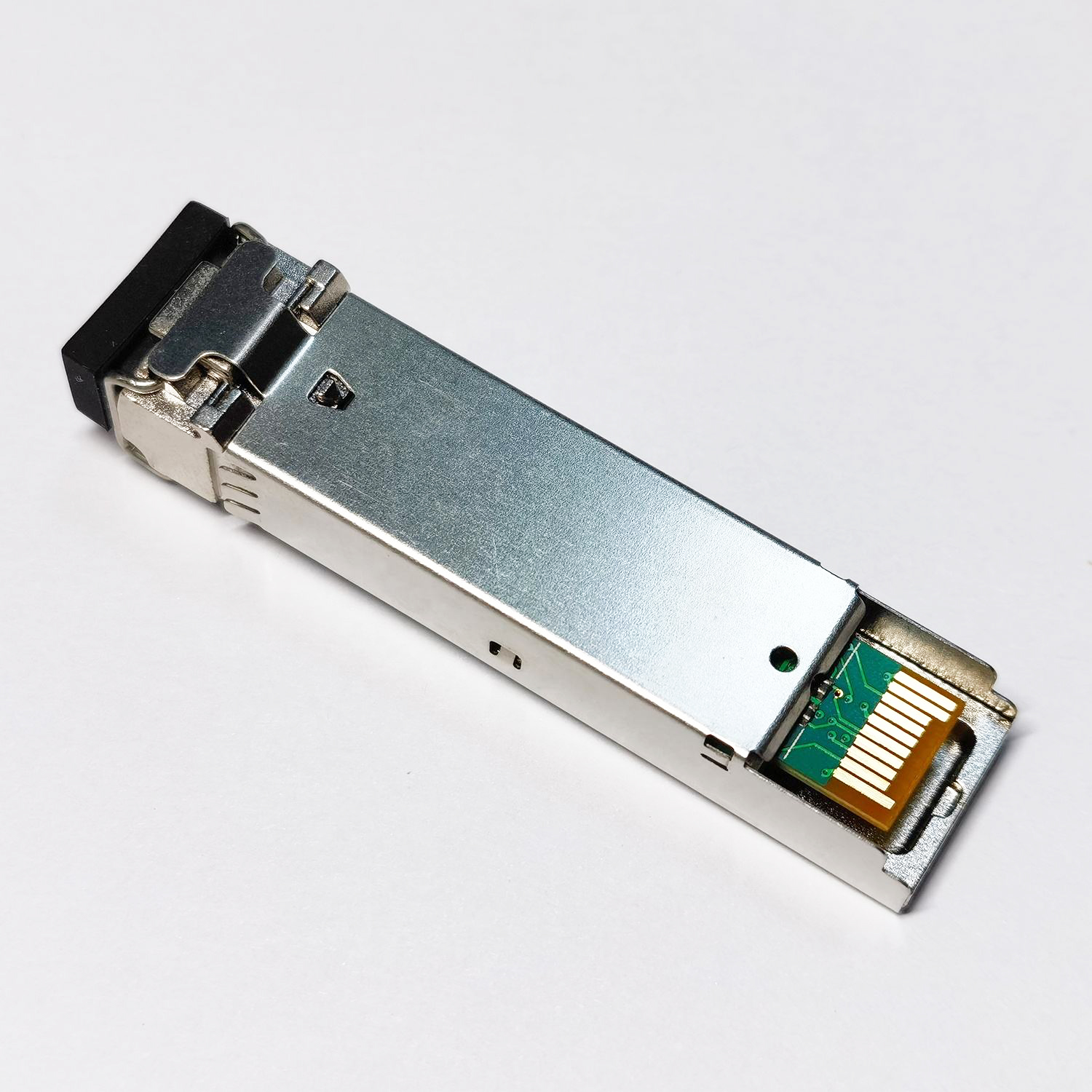

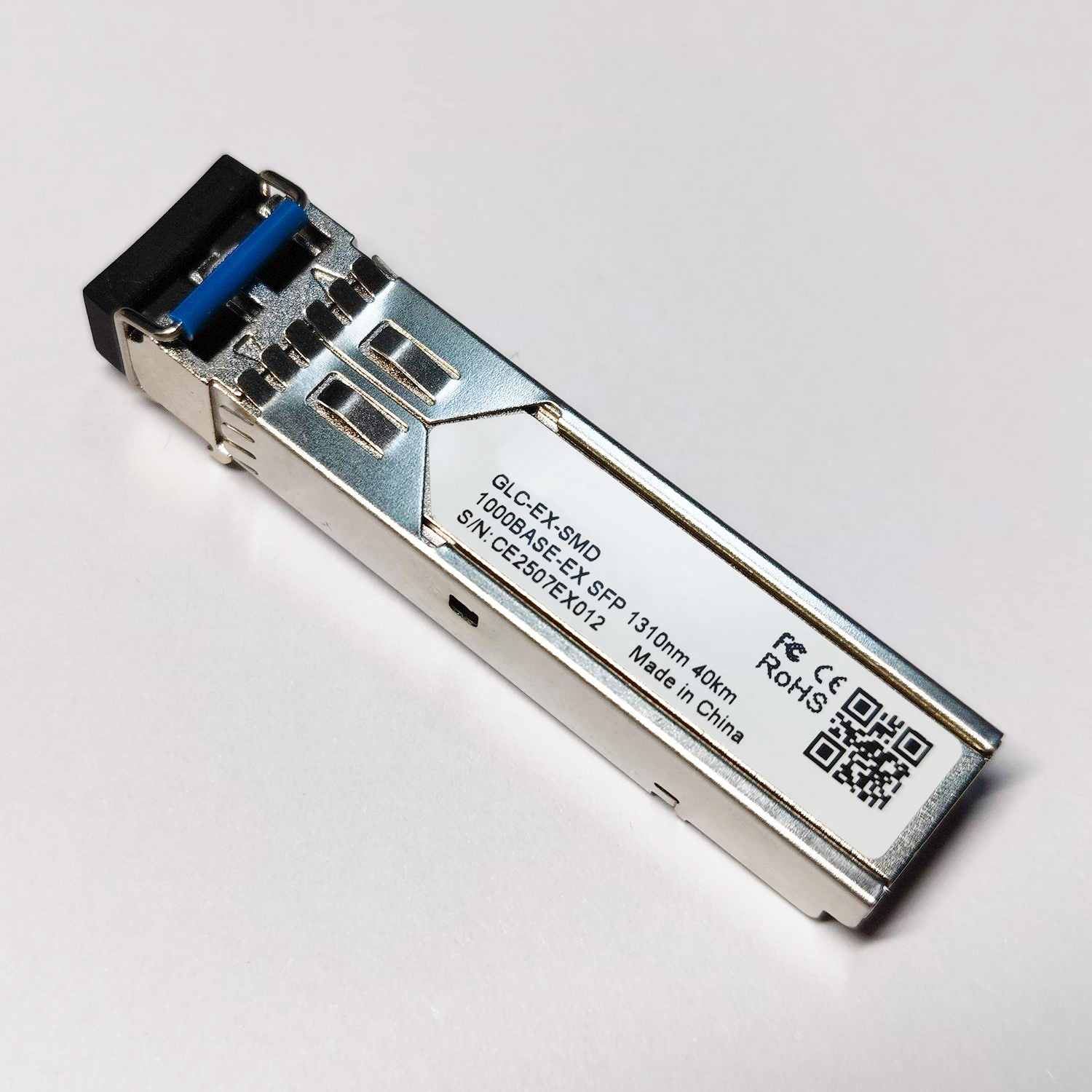

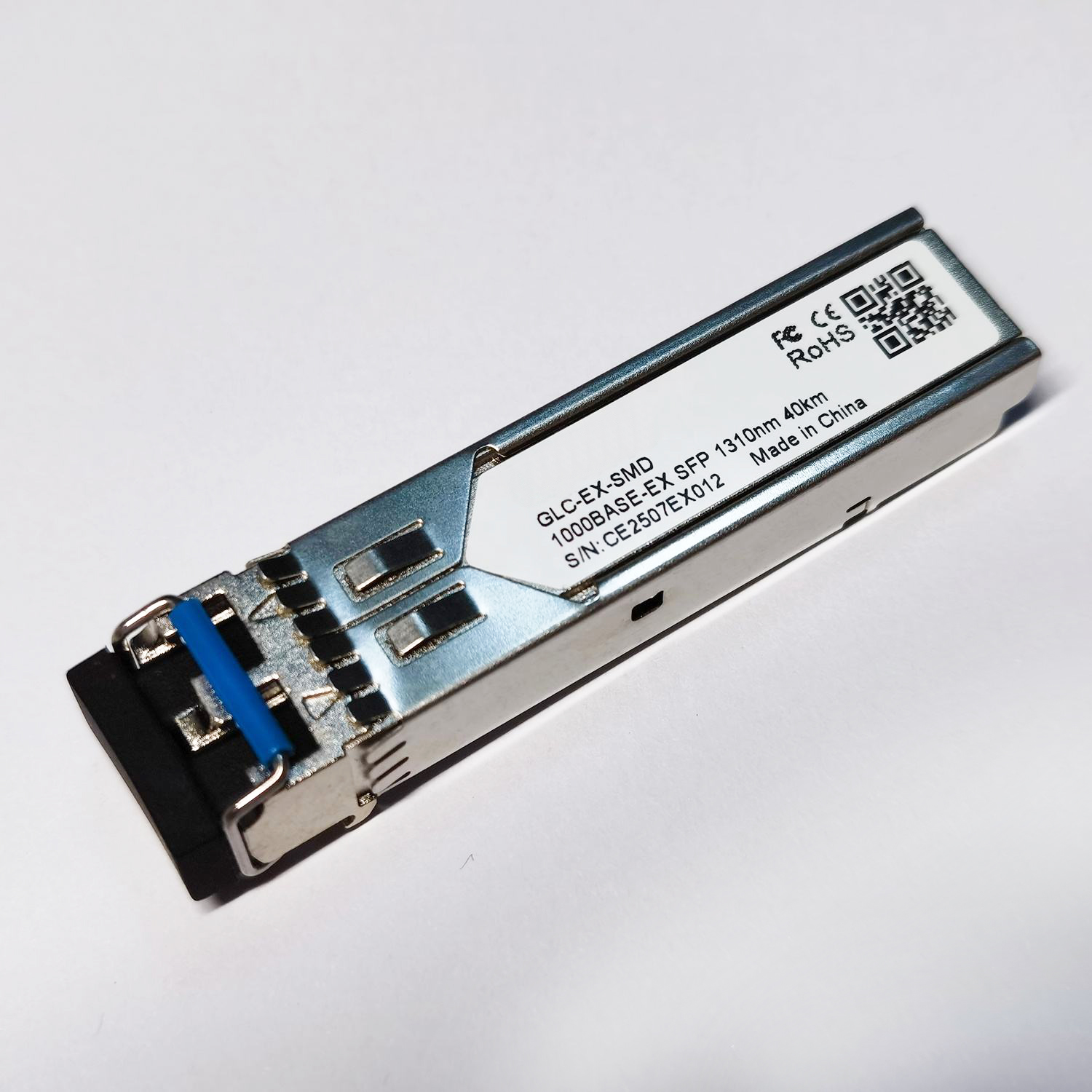

The KCO-GLC-EX-SMD fiber optic transceiver is a high-performance module designed for networks requiring long-distance, high-speed data transmission over single-mode fiber (SMF).
Providing 1000BASE-EX Gigabit Ethernet connectivity, it operates over links up to 40 kilometers (24.8 miles) using a 1310nm wavelength and a standard LC connector. This capability makes it ideal for extending physical links between buildings, data centers, and critical network infrastructures.
It supports up to 40km link lengths over LC duplex SMF fiber. Each SFP transceiver module is individually tested to ensure compatibility and performance on a series of switches, routers, servers, and network interface cards (NICs). Featuring low power consumption, this industrial optic transceiver provides reliable 1GBASE Ethernet options for Telecom, Data Centers, and Gigabit Ethernet setups in both indoor and outdoor environments.
Engineered for extended spans, linking network hardware seamlessly across physical distances of up to 40km.
Supports high-speed 1 Gbps data transfer rates, conforming to 1000BASE-EX standards.
Operates over single-mode optical cabling, ensuring minimal signal degradation over long links.
SFP form-factor allows maintenance, installations, or upgrades without requiring network system reboots.
Utilizes a standard duplex LC interface for secure, highly stable fiber connections.
Real-time DOM support permits tracking of diagnostic parameters such as power, temperature, and voltage.
| Compatible Brand | Cisco Compatible |
| Model / Part Number | KCO-GLC-EX-SMD |
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Wavelength | 1310nm |
| Distance | 40Km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB 1310nm |
| Receiver Type | PIN |
| DDM/DOM | Supported |
| TX Power | -5 ~ 0dBm |
| Receiver Sensitivity | < -24dBm |
| Temperature Range | 0 to 70°C |
| Warranty | 3 years |
Ideal for connecting distinct areas of a large corporate campus or linking multi-story office infrastructures.
Optimized for linking server racks, storage area networks (SANs), and core switches across extended spans.
Supports telecom infrastructures by extending high-performance fiber optic connections locally or regionally.
A: This SFP module supports link distances up to 40 kilometers (24.8 miles) over duplex single-mode fiber (SMF) using a 1310nm wavelength.
A: The transceiver features a standard duplex LC connector interface for reliable and stable fiber optic connectivity.
A: Yes, its SFP form-factor is hot-swappable, allowing you to install or remove the module from switches or routers without shutting down the system.
A: Yes, it is fully equipped with Digital Optical Monitoring (DOM/DDM) capabilities, allowing real-time tracking of parameters like temperature, voltage, and optical power.
A: Yes, this transceiver is designed to be compatible with Cisco hardware and is individually tested for switches, routers, servers, and network interface cards.
A: It features an operating temperature range of 0°C to 70°C, making it suitable for standard indoor and outdoor commercial network deployments.
