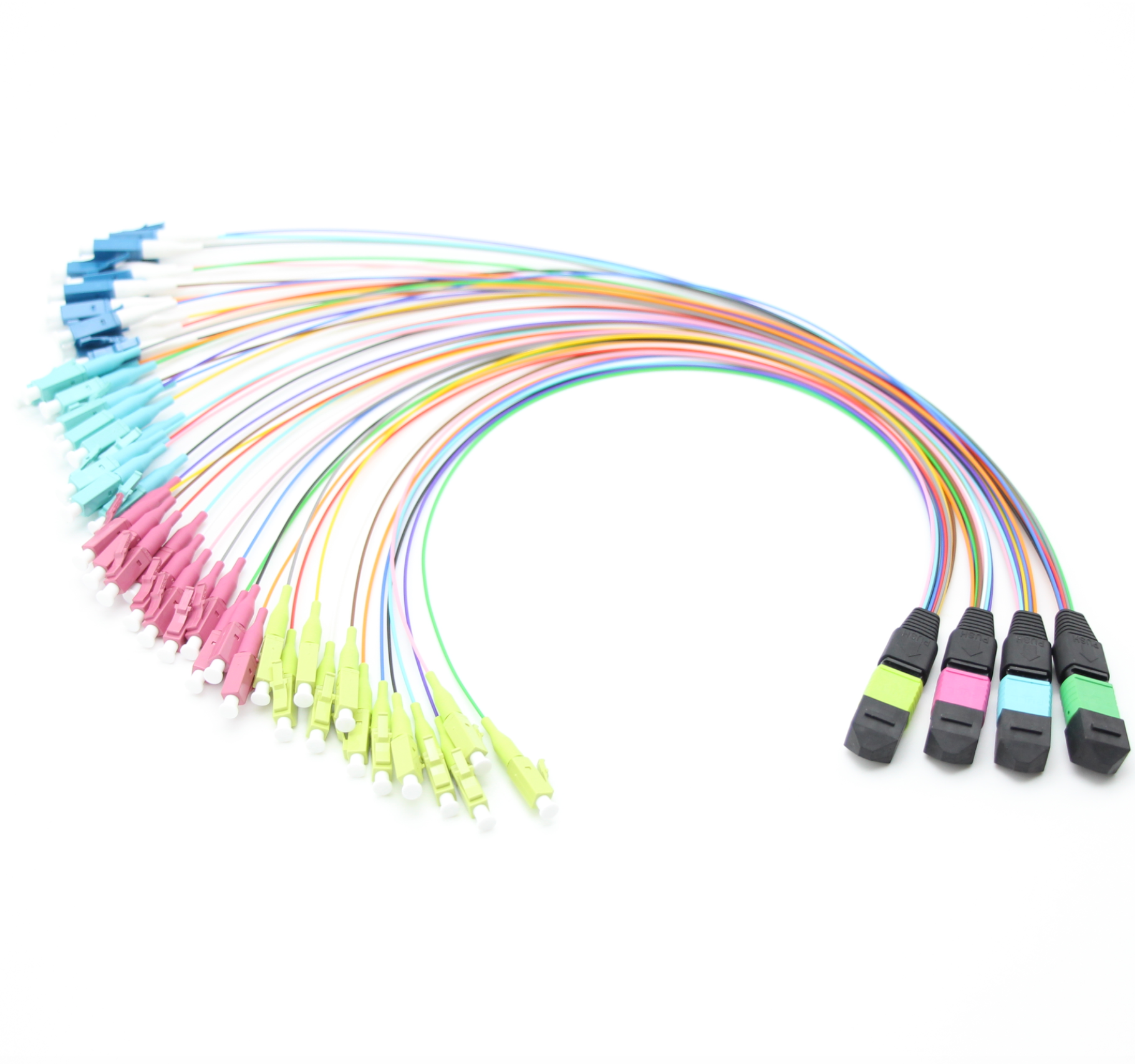

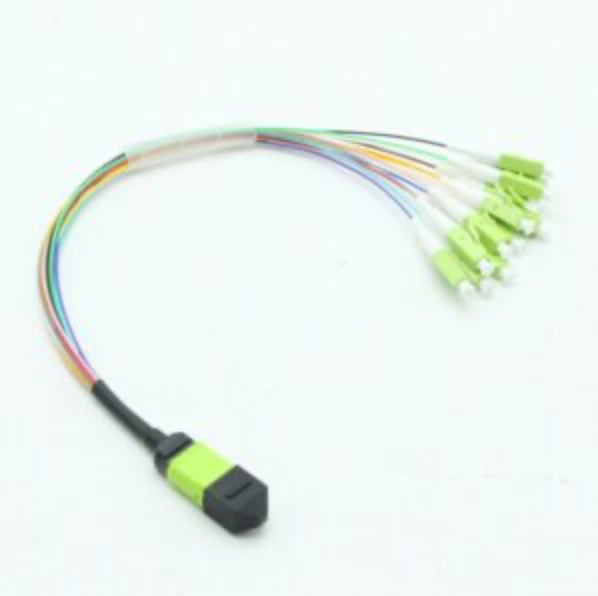

Wholesale OM5 Multimode Fiber 8fo MPO to LC / MTP to LC Fan-out 0.9mm Patch Cord Manufacturers, Product
Wholesale OM5 Multimode Fiber 8fo MPO to LC / MTP to LC Fan-out 0.9mm Patch Cord Manufacturers, Product
Wholesale OM5 Multimode Fiber 8fo MPO to LC / MTP to LC Fan-out 0.9mm Patch Cord Manufacturers, Product
1 / 3
Wholesale OM5 Multimode Fiber 8fo MPO to LC / MTP to LC Fan-out 0.9mm Patch Cord Manufacturers, Product
Wholesale OM5 Multimode Fiber 8fo MPO to LC / MTP to LC Fan-out 0.9mm Patch Cord Manufacturers, Product
Wholesale OM5 Multimode Fiber 8fo MPO to LC / MTP to LC Fan-out 0.9mm Patch Cord Manufacturers, Product

Wholesale OM5 Multimode Fiber 8fo MPO to LC / MTP to LC Fan-out 0.9mm Patch Cord Manufacturers, Product

- Connector A: MPO-8, MTP-8 (Lime Color) - Connector B: 8 * LC Multimode (Beige color) - Fiber type: (12 color code) Multimode OM5 50/125 - Polarity: Type B Other optional: Type A, Type C - Fanout length: 0.3m (30cm) - IL: Ultra Low Loss (0.35dB) - RL: 35dB - Application: High density patch panel
Send Inquiry

Product Description

Product Overview & Specifications
Core Connectivity
  • MPO to LC or MTP to LC fan-out patch cords connect high-density multi-fiber MPO/MTP network switches or transceivers directly to lower-speed, discrete LC-ports.
  • It consolidates space and streamlines data center migrations by splitting a single high-bandwidth backbone line into manageable individual connections.
Target Applications
  • Data center & AI data center connectivity
  • Star link connectivity center
  • Metro, Bank, and high-density patching environments
  • Direct Device-to-Switch Connectivity & Backbone-to-Device Routing
Fiber Count
8fo
Fiber Type
Multimode OM5 50/125
Gender/Pins Options
Male (with alignment pins) or Female (no pins)
Polarity Type
Type-A (Straight-Through), Type-B (Rollover), Type C (Paired Cross)
Connector A Side
MPO-8 / MTP-8
Connector B Size
LC, SC, ST, FC, E2000 multimode
Cable Type & Length
0.9mm, LSZH, loose tube / 30cm (0.3M)

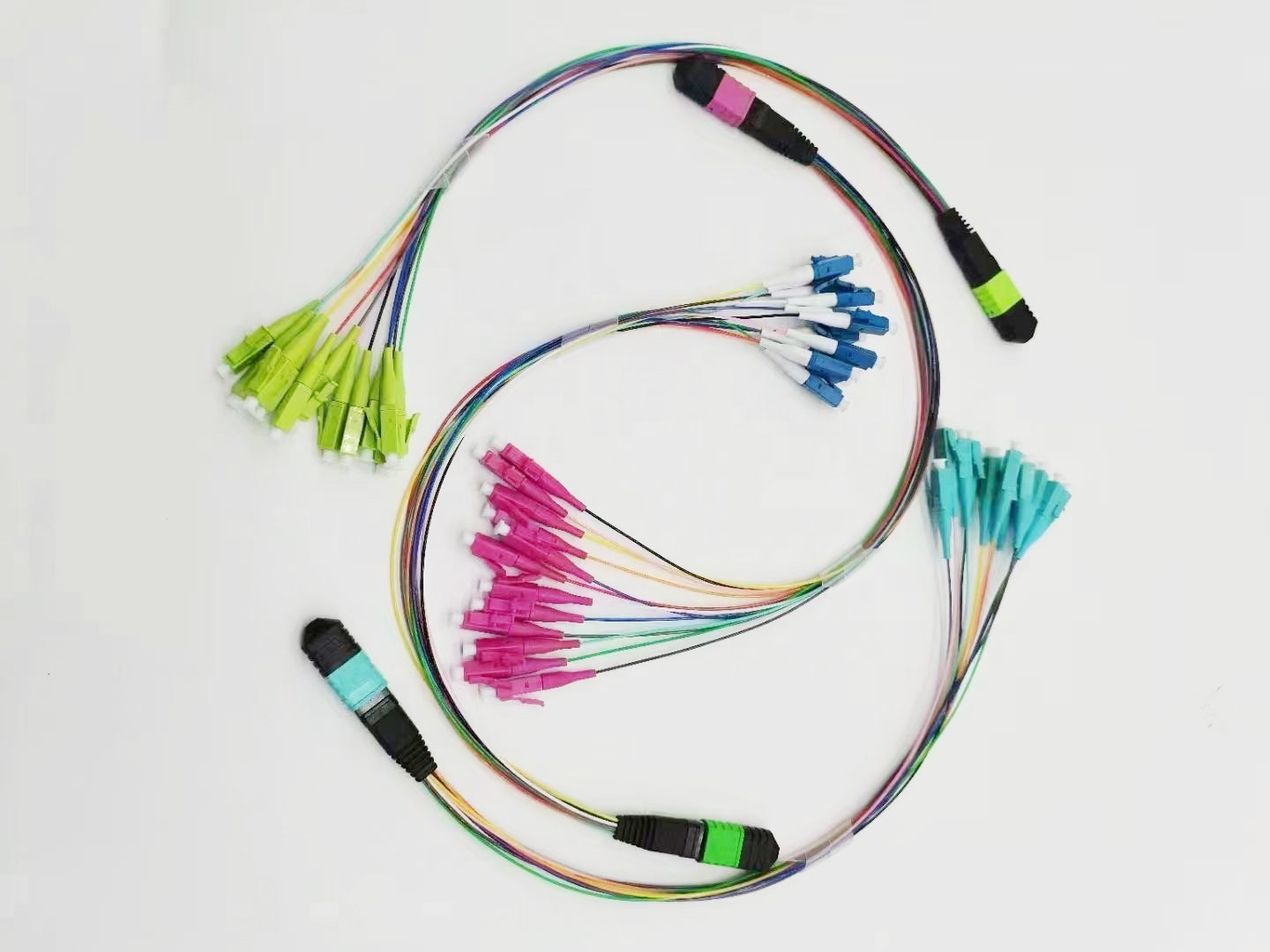

MPO to LC MTP to LC Fan-out Patch Cord
Type Single Mode (APC Polish) Single Mode (UPC Polish) Multi Mode (PC Polish)
Fiber Count 8, 12, 24 etc. 8, 12, 24 etc. 8, 12, 24 etc.
Fiber Type G652D, G657A1 etc. G652D, G657A1 etc. OM1, OM2, OM3, OM4, etc.
Max. Insertion Loss Elite (Low Loss) Standard Elite (Low Loss) Standard Elite (Low Loss) Standard
Insertion Loss Value ≤0.35 dB ≤0.75 dB ≤0.35 dB ≤0.75 dB ≤0.35 dB ≤0.60 dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40°C ~ +80°C -40°C ~ +80°C -40°C ~ +80°C
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull test 1000 times < 0.5 dB
Interchange < 0.5 dB
Anti-tensile force 15kgf
OM5 Fiber Technology & Capabilities
What is OM5 Wideband Multimode Fiber?
  • OM5 fiber (Wideband Multimode Fiber / WBMMF) is a lime-green optical cable designed for advanced, high-speed data centers.
  • Supports multiple wavelengths (850nm to 953nm) to deliver 40G, 100G, and 400G Ethernet over a single pair of fibers, reducing complexity and costs.
  • Designed to consolidate fiber counts in enterprise networks and cloud storage infrastructures.
  • Core/Cladding: 50/125um, matching OM3 and OM4 parameters.
  • SWDM Compatibility: The first multimode fiber optimized for Short Wavelength Division Multiplexing to carry at least four separate wavelengths.
  • Backward Compatibility: Integrates seamlessly with existing OM3 and OM4 networks.
Distance & Speed Capabilities
  • Jacket Color: Lime Green
  • 40GBASE-SR4: Up to 440m transmission distance.
  • 100GBASE-SR4: Up to 100m to 150m (depending on transceiver tech).
  • 400GBASE-SR4: Up to 100m to 150m transmission distance.
OM5 Multimode Fiber Application 1
OM5 Multimode Fiber Application 2
Frequently Asked Questions
What is the primary function of MPO/MTP to LC fan-out patch cords?
They connect high-density multi-fiber MPO/MTP network switches or transceivers directly to lower-speed, discrete LC-ports. This helps consolidate space and streamline data center migrations by splitting a single high-bandwidth backbone line into manageable individual connections.
How do I choose the correct gender (Male or Female) for my MPO/MTP connectors?
Ensure you choose the opposite gender of your panel port. Male connectors have alignment pins, whereas Female connectors do not. Choosing the incorrect match can result in physical fiber destruction.
What polarity types are available, and how do I select one?
You can select Type-A (Straight-Through), Type-B (Rollover), or Type C (Paired Cross). The choice depends entirely on how your active hardware maps data lines for your transceiver links.
What are the benefits of OM5 Wideband Multimode Fiber (WBMMF)?
OM5 fiber supports multiple wavelengths (850nm to 953nm) using Short Wavelength Division Multiplexing (SWDM). This allows the cable to carry at least four separate wavelengths on one fiber pair, delivering high speeds like 40G, 100G, and 400G Ethernet while significantly reducing cable counts and costs.
Is OM5 fiber backward compatible with older multimode standards?
Yes, OM5 fiber features a 50/125um core/cladding size, which is identical to OM3 and OM4 parameters, making it fully backward compatible with legacy OM3 and OM4 networks.
What transmission distances does OM5 support at high speeds?
OM5 supports distances up to 440m for 40GBASE-SR4, and between 100m to 150m for both 100GBASE-SR4 and 400GBASE-SR4 applications, depending on the specific transceiver technology utilized.
