OEM 10/100M Fiber Optic Media Converter Factories, Quotes

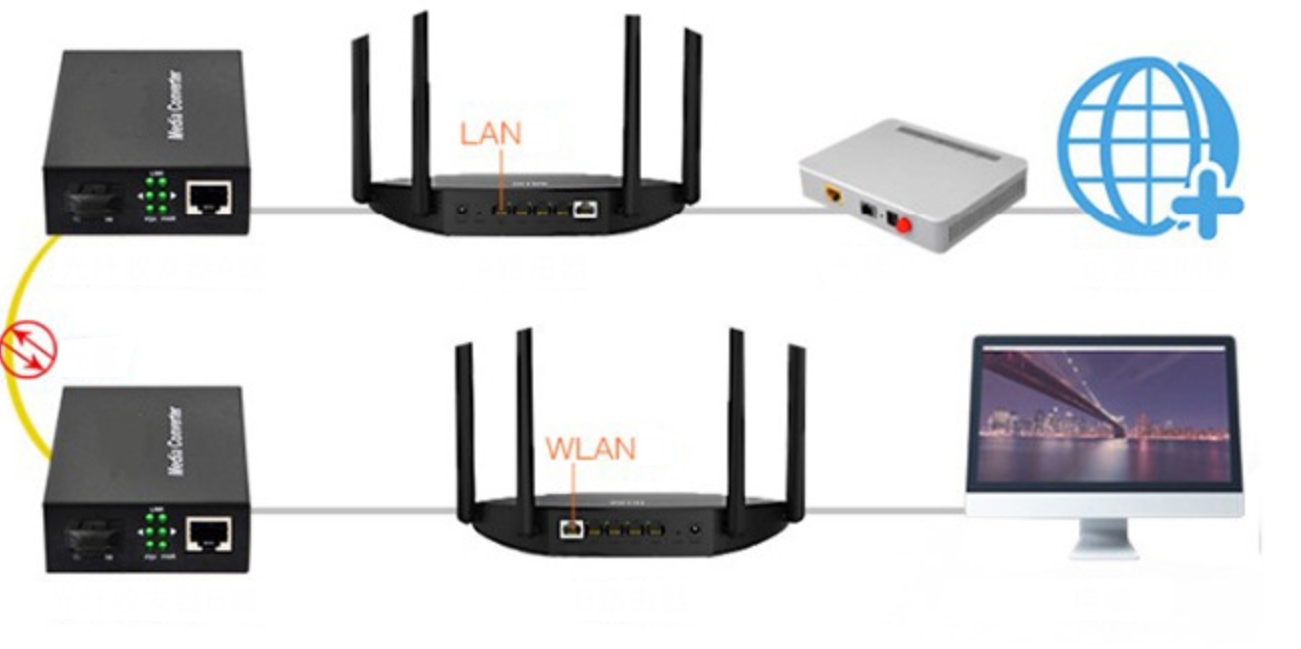

- The fiber optic media converter is a 10/100Mbps adaptive media converter. - It can transfer 100Base-TX of electrical signals to 100Base-FX of optical signals. - The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps Ethernet rate without any adjustments. - It can extend the transmission distance from 100m to 120km via copper cables. - LED indicators are provided for rapidly ascertaining equipment operating status. - There are also many other advantages such as isolation protection, good data security, working stability and easy maintenance. - Use External power adapter. - Chipset: IC+ IP102

Send Inquiry

Product Description

Package Content

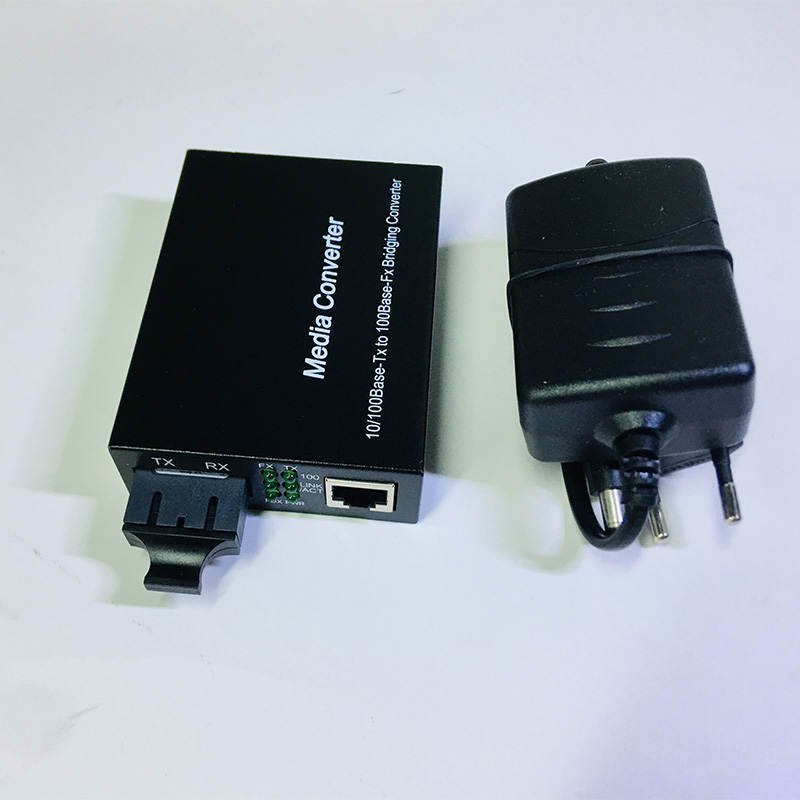

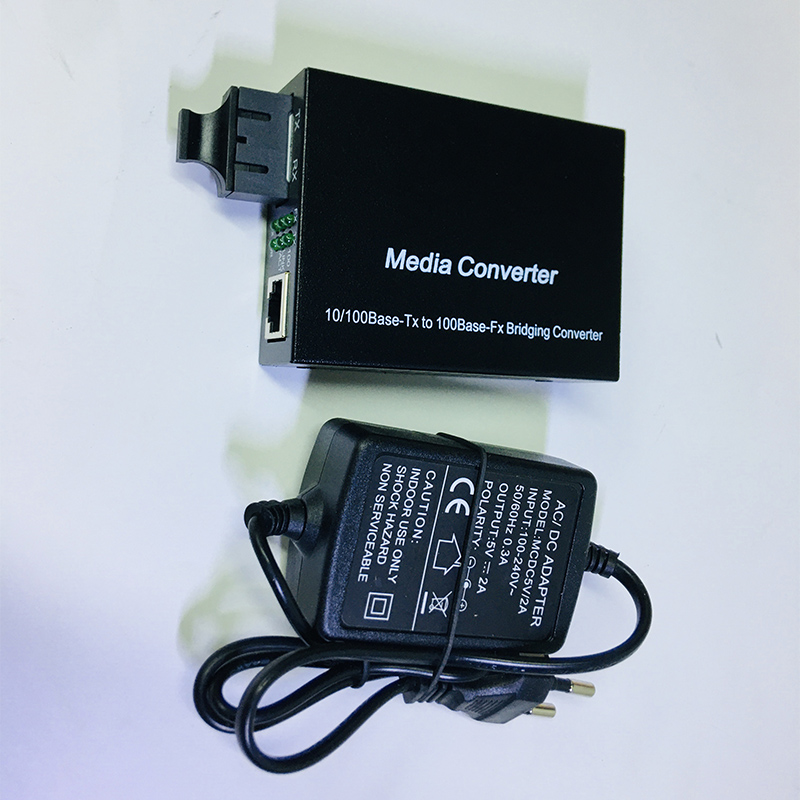

Power adapter: 1pc

User Manual: 1pc

Warranty card: 1pc

Key Features

Support the switch between 100Base-TX and 100Base-FX.

1*155Mbps full-duplex fiber port and 1*100M Ethernet port.

Each port has complete LED Indicator lights for installation, commissioning, and maintenance.

Support 9K Jumbo Packet for enhanced transmission efficiency.

Support direct forwarding mode, optimizing and minimizing time delay.

Less power consumption, consuming only 1.5W under full load conditions.

Support isolation protection function for improved data security.

Small size design, suitable for flexible installation in various spaces.

Adopt low power consumption chips to ensure longtime and stable operation.

Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards.

Support Store & Forward Switching technology.

Auto-Negotiation of Half/Full duplex (HDX/FDX) on RJ45 port.

Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data.

Technical Specifications

Standards	IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T)
Certifications	CE, FCC, RoHS
Data Transfer Rate	100Mbps 10Mbps
Wavelength	Single mode: 1310nm, 1550nm Multimode: 850nm or 1310nm
Ethernet Port	Connector: RJ45 Data Rate: 10/100M Distance: 100m UTP Type: UTP-5E or higher level
Fiber Port	Connector: SC/UPC Data Rate: 155Mbps Fiber type: single mode 9/125μm, multi-mode 50/125μm or 62.5/125μm Distance: Multimode: 550m~2km Single mode: 20~100km
Optical Power	For Single mode Dual fiber SC 20km: TX Power (dBm): -15 ~ -8 dBm Maximum RX power (dBm): -8 dBm RX Sensitivity (dBm): ≤ -25 dBm
Performance	Processing Type: direct forwarding Jumbo packet: 9k bytes Time Delay: < 150μs

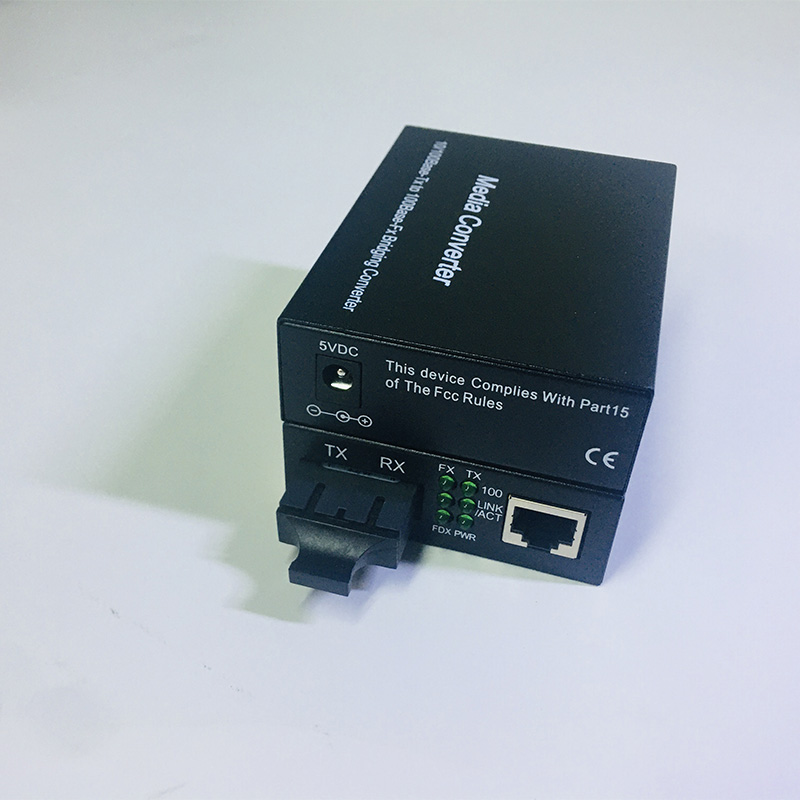

LED Indicator	PWR: Green Illuminated to indicate unit is operating under normal operation TX LNK/ACT: Green Illuminated indicates receiving link pulses from compliant copper device and flashes when data being sent / received FX LNK/ACT: Green Illuminated indicates receiving link pulses from compliant fiber device and flashes when data being sent / received 100M: Green Illuminated when data packets are being transmitted at 100 Mbps
Power	Power type: external power supply Output Voltage: 5VDC 1A Input Voltage: 100V~240VAC 50/60Hz (Optional: 48VDC) Connector: DC Socket Power Consumption: 0.7W~2.0W Support 2KV Surge protection
Environment	Storage Temperature: -40~70℃ Operating Temperature: -10~55℃ Relative Humidity: 5-90% (no condensation)
Warranty	12 months

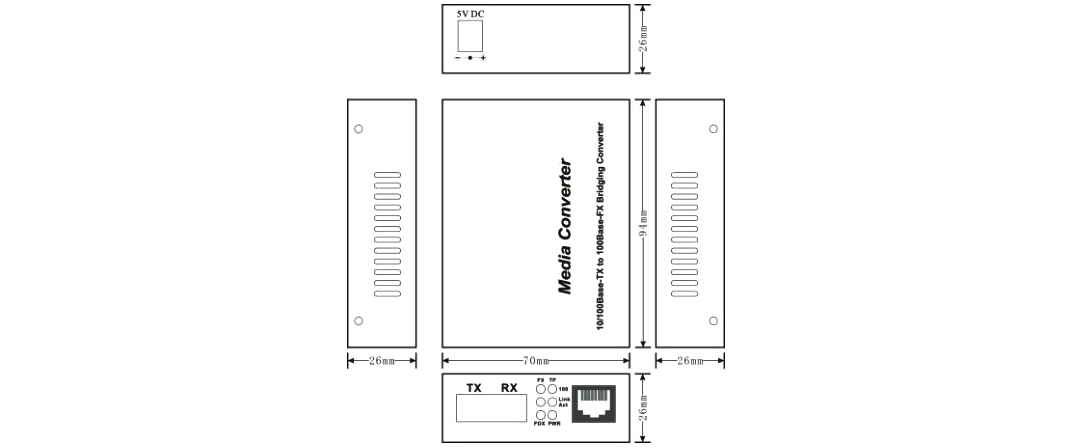

Physical Characteristics	Dimension: 94×71×26mm Weight: 0.15kg Color: Metal, Black

Frequently Asked Questions (FAQ)

Q1: What transmission distances does the fiber port support?

A1: The fiber port supports a distance of 550m to 2km for multimode fiber, and from 20km up to 100km when using single-mode fiber setups.

Q2: Does this media converter support jumbo frames?

A2: Yes, it supports 9K Jumbo Packets, allowing for more efficient data throughput and reduced packet processing overhead.

Q3: How much power does the unit consume?

A3: The unit is highly energy-efficient, with power consumption ranging between 0.7W to 2.0W, and only 1.5W under typical full-load conditions.

Q4: What do the different LED indicators represent?

A4: The LEDs provide status updates: PWR indicates normal power, TX LNK/ACT flashes with copper port data activity, FX LNK/ACT flashes with fiber port data activity, and 100M indicates link status at 100 Mbps.

Q5: What is the operating temperature range for this device?

A5: It is built for varied environments, supporting an operating temperature range of -10℃ to 55℃ and storage temperatures from -40℃ to 70℃.

Q6: Does the device feature any electrical surge protection?

A6: Yes, it features integrated 2KV Surge protection to protect the internal circuitry against sudden electrical spikes.
