ODM 12fo 24fo MPO MTP Fiber Optic Modular Cassette Supplier, Product

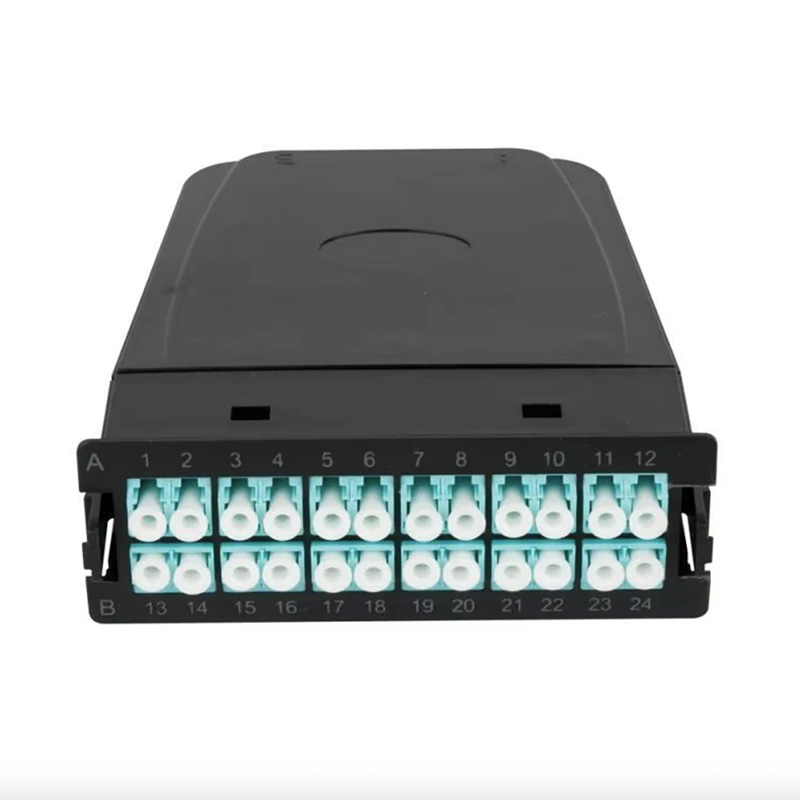

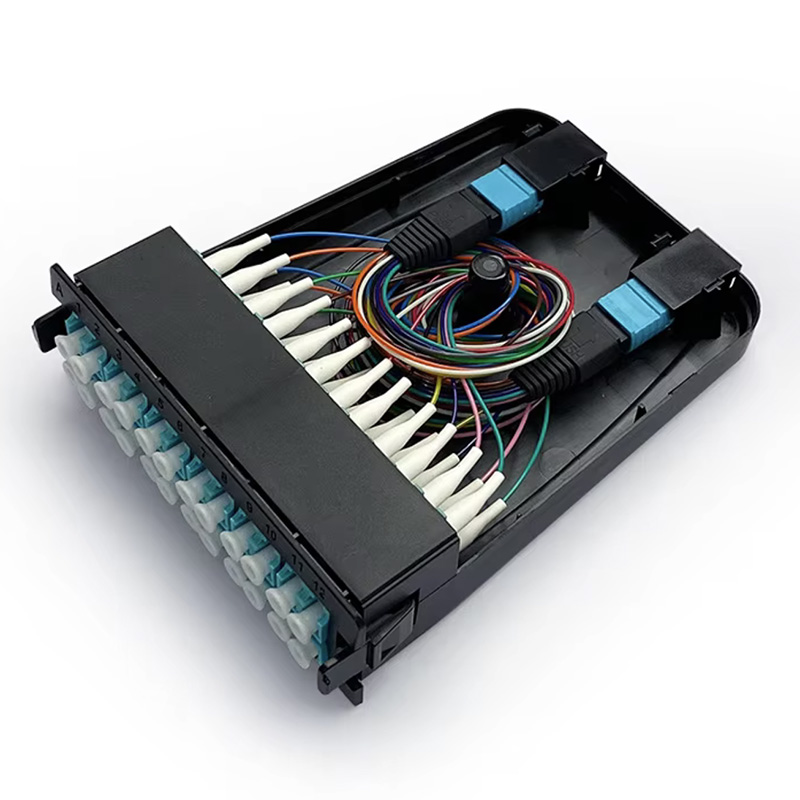

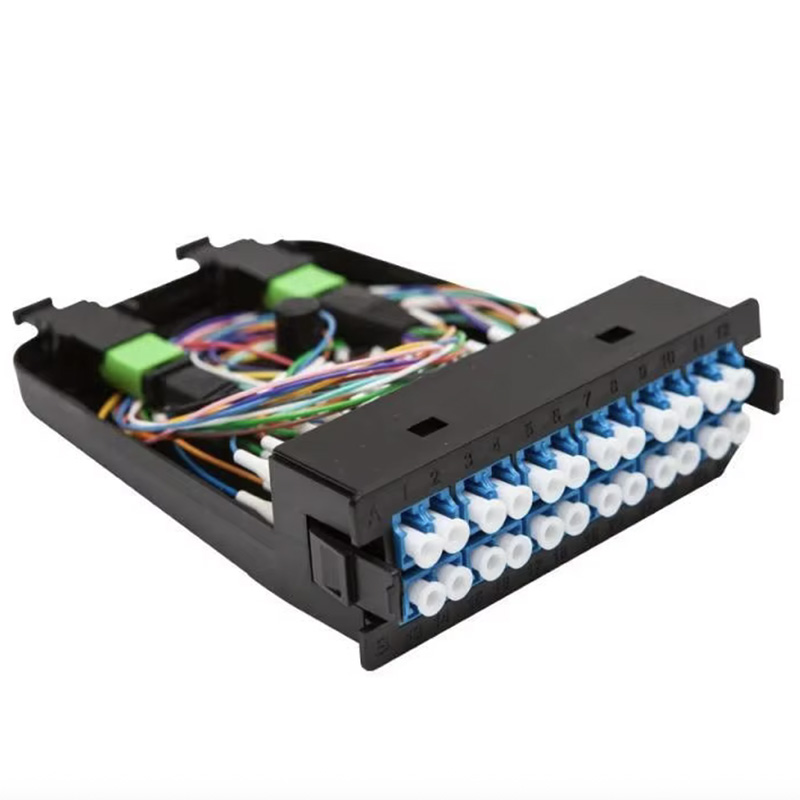

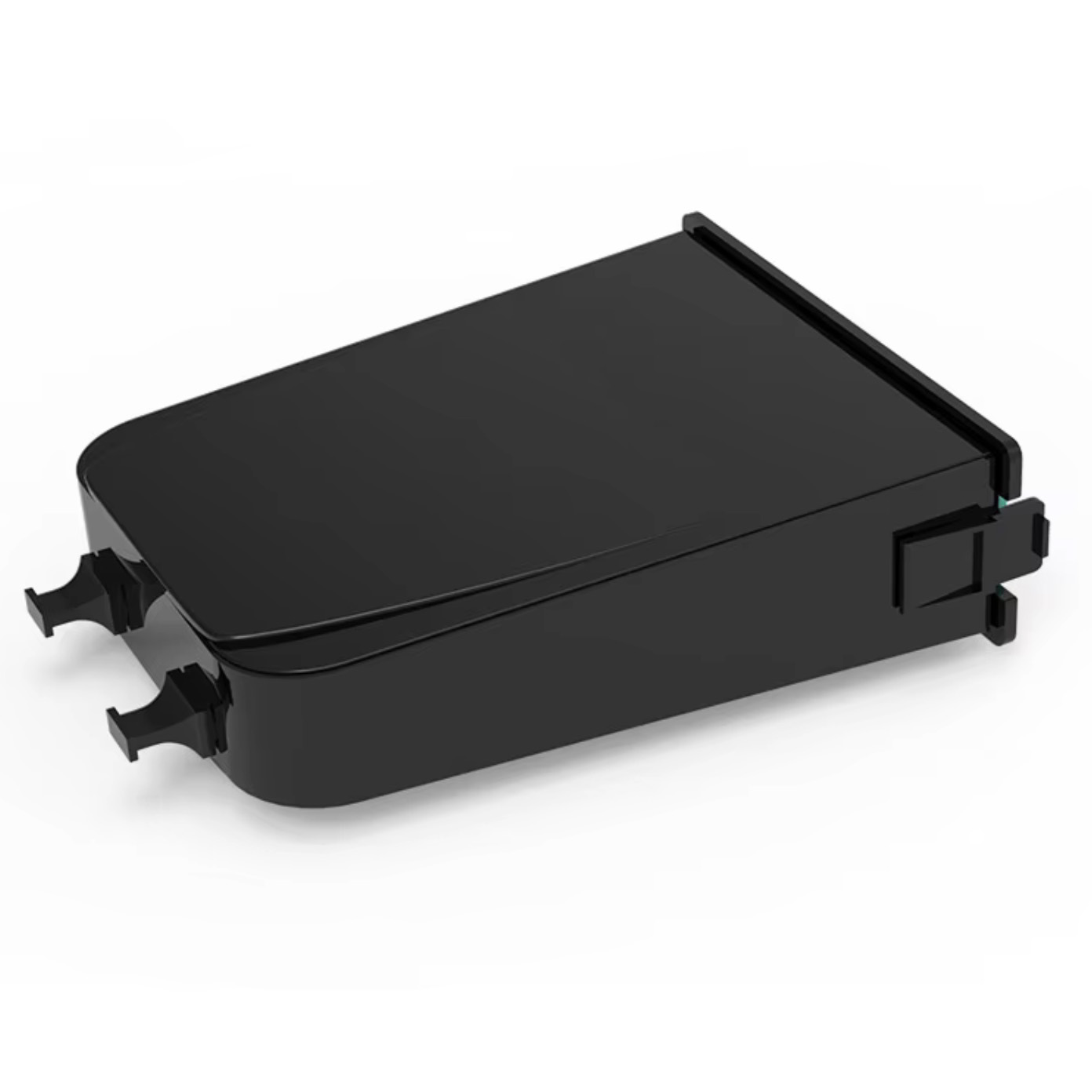

MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching. Modular system allows for rapid deployment of high-density data center infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multi-slot chassis. MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.

Send Inquiry

Product Description

+ MTP MPO fiber optic patch panel

Versatile panel with extendable double slide rails for smooth sliding.

1RU suitable 2-4pcs KNC standard adapter plates at different size.

Silkscreen printing on the front aperture for fiber identification.

Comprehensive accessory kit for cable entry and fiber management.

Able to hold MTP (MPO) loaded cassettes.

Customize design available according to specifications.

Technical Specifications

Type	Single Mode		Single Mode		Multi Mode
Type	(APC Polish)		(UPC Polish)		(PC Polish)
Fiber Count	8, 12, 24 etc.		8, 12, 24 etc.		8, 12, 24 etc.
Fiber Type	G652D, G657A1, etc.		G652D, G657A1, etc.		OM1, OM2, OM3, OM4, OM5, etc.
Maximum Insertion Loss	Elite / Low Loss	Standard	Elite / Low Loss	Standard	Elite / Low Loss	Standard
	Low Loss	Standard	Low Loss	Standard	Low Loss	Standard
	≤ 0.35 dB	≤ 0.75 dB	≤ 0.35 dB	≤ 0.75 dB	≤ 0.35 dB	≤ 0.60 dB
Return Loss	≥ 60 dB		≥ 60 dB		NA
Durability	≥ 500 times		≥ 500 times		≥ 500 times
Operating Temperature	-40°C ~ +80°C		-40°C ~ +80°C		-40°C ~ +80°C
Test Wavelength	1310nm		1310nm		1310nm

Frequently Asked Questions

What types of fiber adapters does the 1RU patch panel support?

The 1RU patch panel is designed to hold 2 to 4 KNC standard adapter plates of different sizes and is also fully capable of accommodating MTP (MPO) loaded cassettes.

Can this patch panel be used for both Single Mode and Multi Mode applications?

Yes, it supports Single Mode (with APC or UPC polish) and Multi Mode (with PC polish) fibers, making it highly versatile for various network environments.

What are the insertion loss values for the patch panel?

For Elite/Low Loss configurations, the maximum insertion loss is ≤ 0.35 dB. For Standard configurations, the insertion loss is ≤ 0.75 dB for Single Mode and ≤ 0.60 dB for Multi Mode.

Does the panel include cable management features?

Yes, the patch panel features extendable double slide rails for smooth sliding operation and comes with a comprehensive accessory kit for safe cable entry and tidy fiber management.
