ODM OM3-150 OM3-300 8cores MTP to LC / MPO to LC fanout fiber optic patch cord Manufacturer, Products
1 / 3

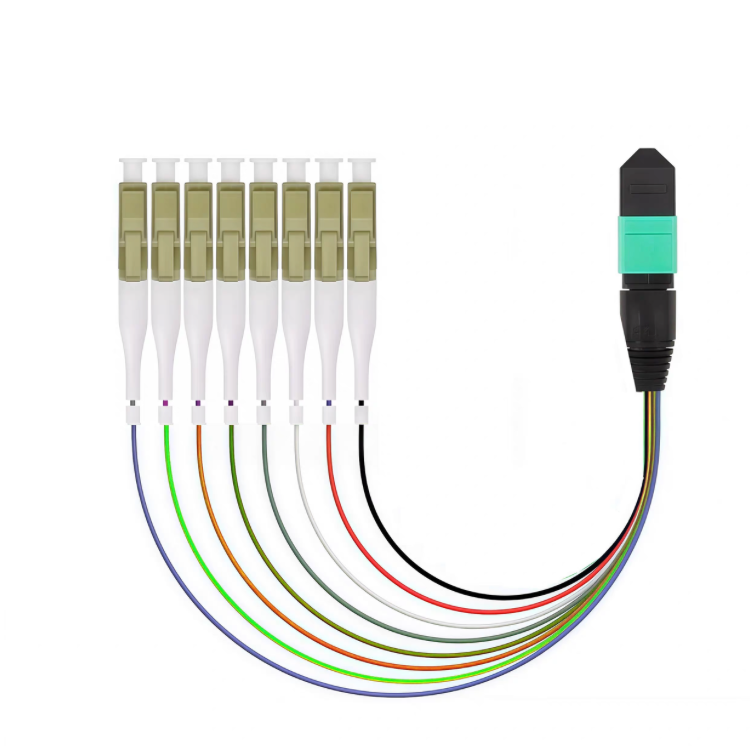

ODM OM3-150 OM3-300 8cores MTP to LC / MPO to LC fanout fiber optic patch cord Manufacturer, Products
- Connector 1: MPO-8, MTP-8
- Connector 2: LC/UPC MM
- Fiber type: Multimode OM3-150 or Multimode OM3-300
- Polarity: Type B (optional: Type A, Type C)
- Fanout length: 0.3m (30cm)

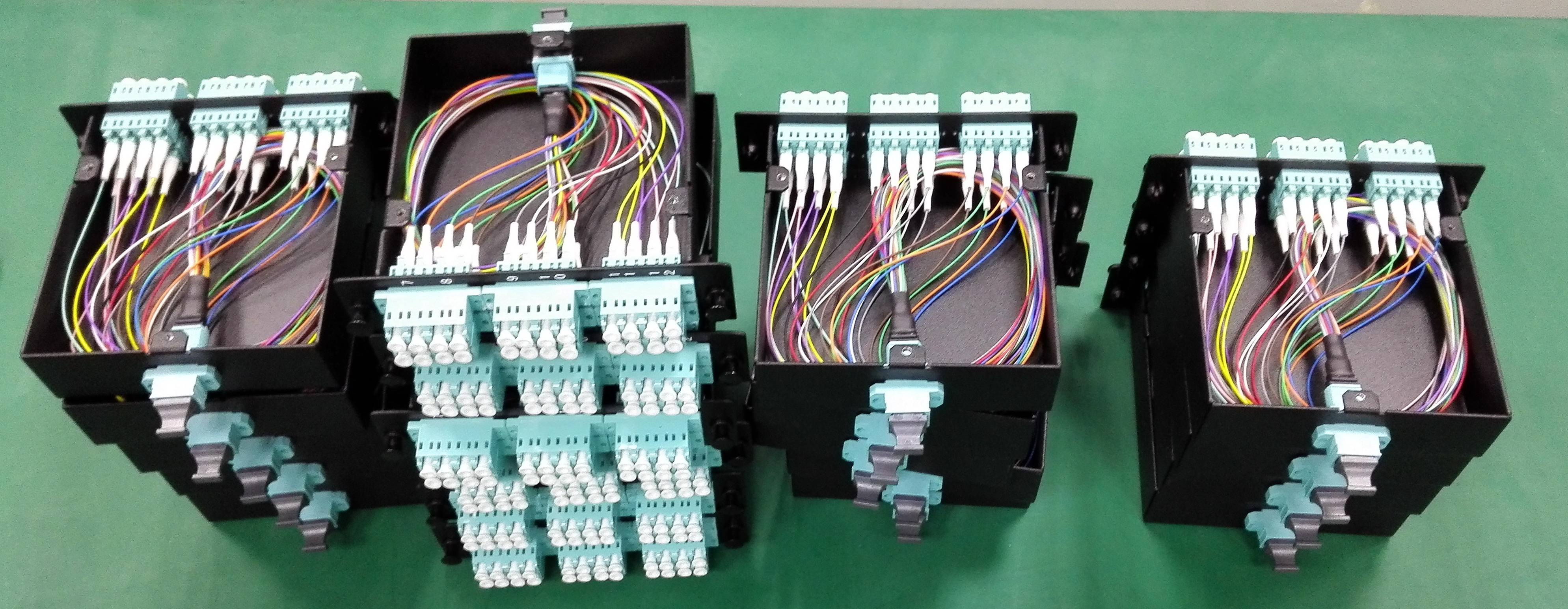

- Application: use for MPO MTP module. box
- Lead time: 2 days
- MOQ: 1pc
The MPO to LC / MTP to LC fiber optic fan-out patch cord is a high-density fiber optic assembly used to bridge multi-fiber connections to individual single-fiber ports. It is available in 8-fiber, 12-fiber, or 24-fiber configurations and is typically installed in MTP/MPO module boxes for high-density patch panels. These cables are essential for connecting high-speed 40G/100G/400G transceivers (such as QSFP+) to existing 10G SFP+ equipment in data centers.
Fiber Count: Common configurations include 8-fiber (for 40G QSFP to 4x10G LC), 12-fiber (to 6xLC duplex), or 24-fiber (to 12xLC duplex).
Fiber Type: Multimode OM3, engineered for short-range data center links.
Gender: MPO connectors can be Male (with pins).
Polarity: Standard 40G/100G applications often use Type B (Rollover) polarity to ensure proper transmit-to-receive (Tx to Rx) mapping.
Applications
40G/100G to 10G/25G Migration
Enables seamless upgrading from legacy 10G/25G networks to high-speed 40G/100G infrastructures without replacing the cabling system.
Direct Device-to-Switch Connectivity
Establishes straight and clean links between switches, transceivers, and servers, simplifying structured cabling setups.
Backbone-to-Device Routing
High-capacity MPO trunk cables run as backbone routes between racks. Fanout cables split these trunks into individual LC connectors that connect directly to device ports.
High-Density Patching
Consolidates multiple duplex LC ports into a single MPO interface inside fiber enclosures, dramatically boosting overall port density.
Technical Specifications
Type
Single Mode (APC Polish)
Single Mode (UPC Polish)
Multi Mode (PC Polish)
Fiber Count
8, 12, 24 etc.
8, 12, 24 etc.
8, 12, 24 etc.
Fiber Type
G652D, G657A1 etc.
G652D, G657A1 etc.
OM1, OM2, OM3, OM4, etc.
Max. Insertion Loss
Elite (Low Loss)
Standard
Elite (Low Loss)
Standard
Elite (Low Loss)
Standard
Loss Values
≤0.35 dB
≤0.75 dB
≤0.35 dB
≤0.75 dB
≤0.35 dB
≤0.60 dB
Return Loss
≥60 dB
≥60 dB
NA
Durability
≥500 times
≥500 times
≥500 times
Operating Temperature
-40°C ~ +80°C
-40°C ~ +80°C
-40°C ~ +80°C
Test Wavelength
1310nm
1310nm
1310nm
Insert-pull test
1000 times (<0.5 dB)
Interchange
<0.5 dB
Anti-tensile force
15kgf
Frequently Asked Questions
What is an MPO to LC fan-out patch cord?
It is a fiber optic cable assembly designed to connect high-density multi-fiber MPO/MTP interfaces to individual single-fiber LC connectors, enabling connection between high-speed switches and legacy equipment.
What fiber configurations are commonly available?
Common configurations include 8-fiber (typically used for 40G QSFP to 4x10G LC migrations), 12-fiber (connecting to 6x LC duplex), and 24-fiber (connecting to 12x LC duplex) configurations.
What is the difference between Elite and Standard MPO connectors?
Elite (Low Loss) MPO connectors have a lower maximum insertion loss of ≤0.35 dB compared to Standard connectors, which support ≤0.75 dB for Single Mode and ≤0.60 dB for Multimode applications.
Why is Type B polarity used in these cables?
Type B (Rollover) polarity is standard for 40G/100G applications to ensure correct transmit-to-receive (Tx to Rx) routing across the fiber link.
What are the operational temperature limits for these fiber cables?
These patch cords are designed to operate reliably within a temperature range of -40°C to +80°C, making them suitable for standard data center environments.
