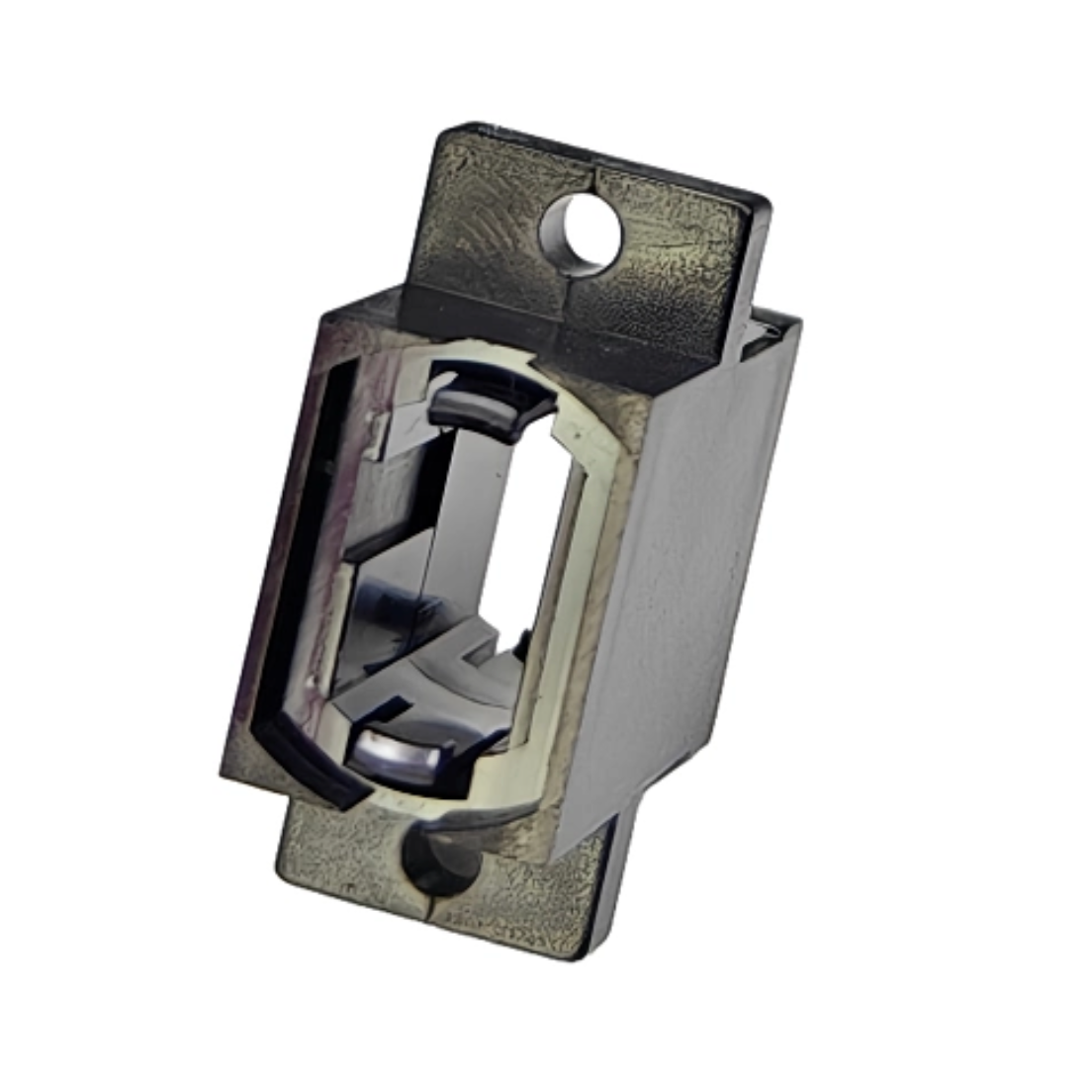

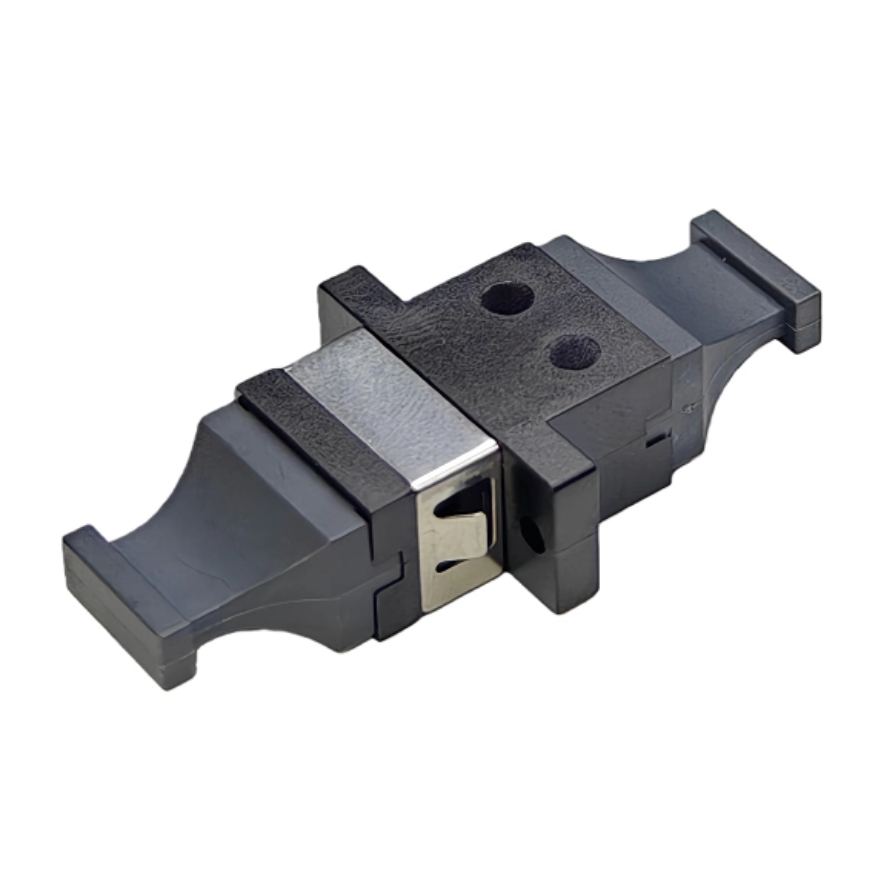

The MPO-16 optical fiber coupler / MTP-16 fiber adapter is a fiber optic adapter designed with ultra-low insertion loss, specifically engineered for MPO-16 and MTP-16 fiber optic connectors.
Applications & Usage
This adapter is utilized to connect MPO/MTP female trunk cables to MPO/MTP male trunk cables, or MPO/MTP female trunk cables to MPO/MTP male modules (such as MPO/MTP male to LC modules). It is compatible with MPO-8 / MTP-8 connectors or MPO-16 / MTP-16 connectors on 8F or 16F MPO MTP fiber optic trunk cables.
Similar to common fiber optic adapters, the MPO-16 optical fiber coupler / MTP-16 fiber adapter is typically installed on fiber optic patch panels, module boxes, and terminal boxes configured with MPO/MTP trunk cables.
Key Features & Design
- Supports high-speed transmissions up to 40G, 100G, 200G, and 400G.
- Push/pull tab connector design allows easy one-handed installation and removal.

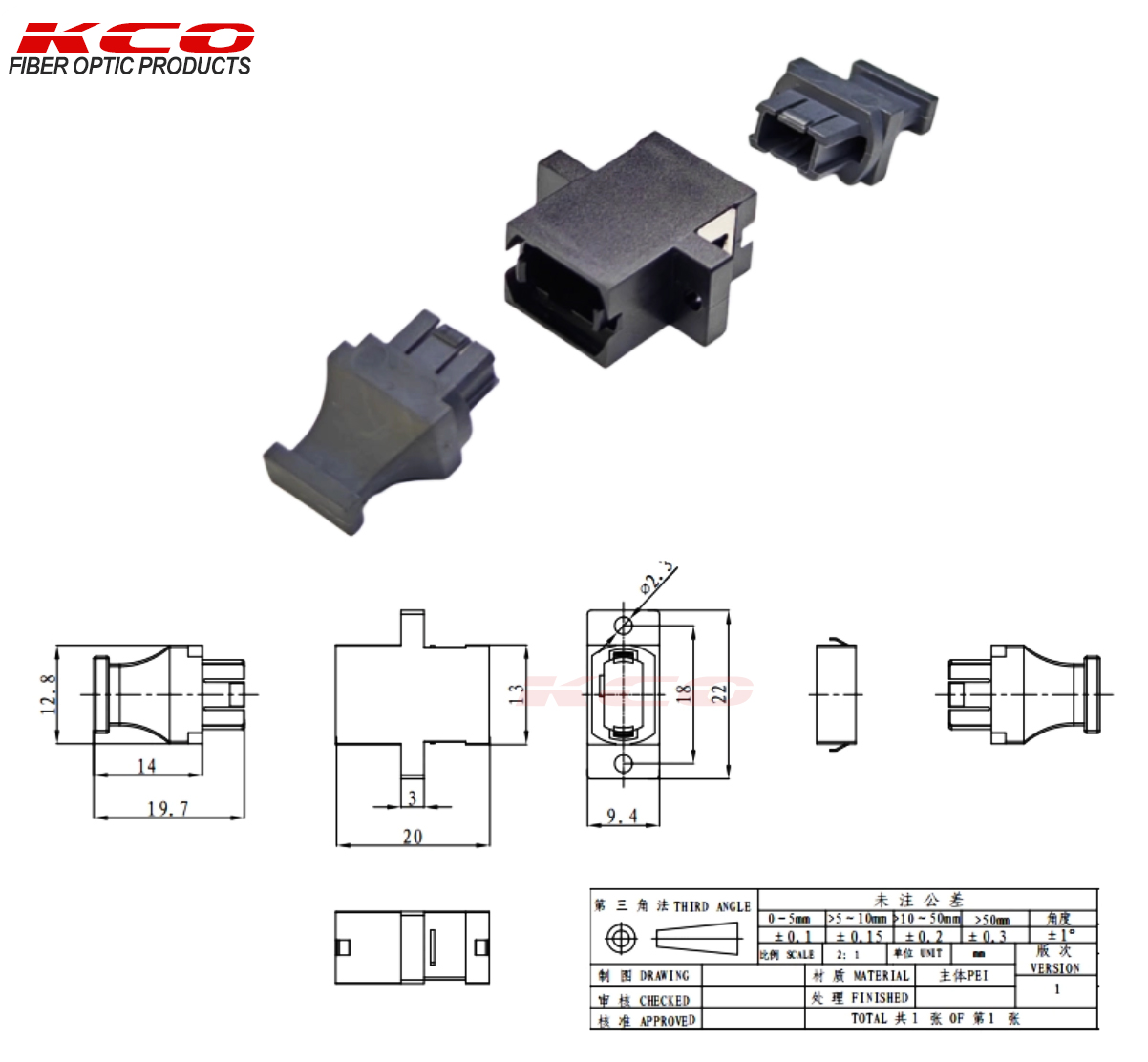

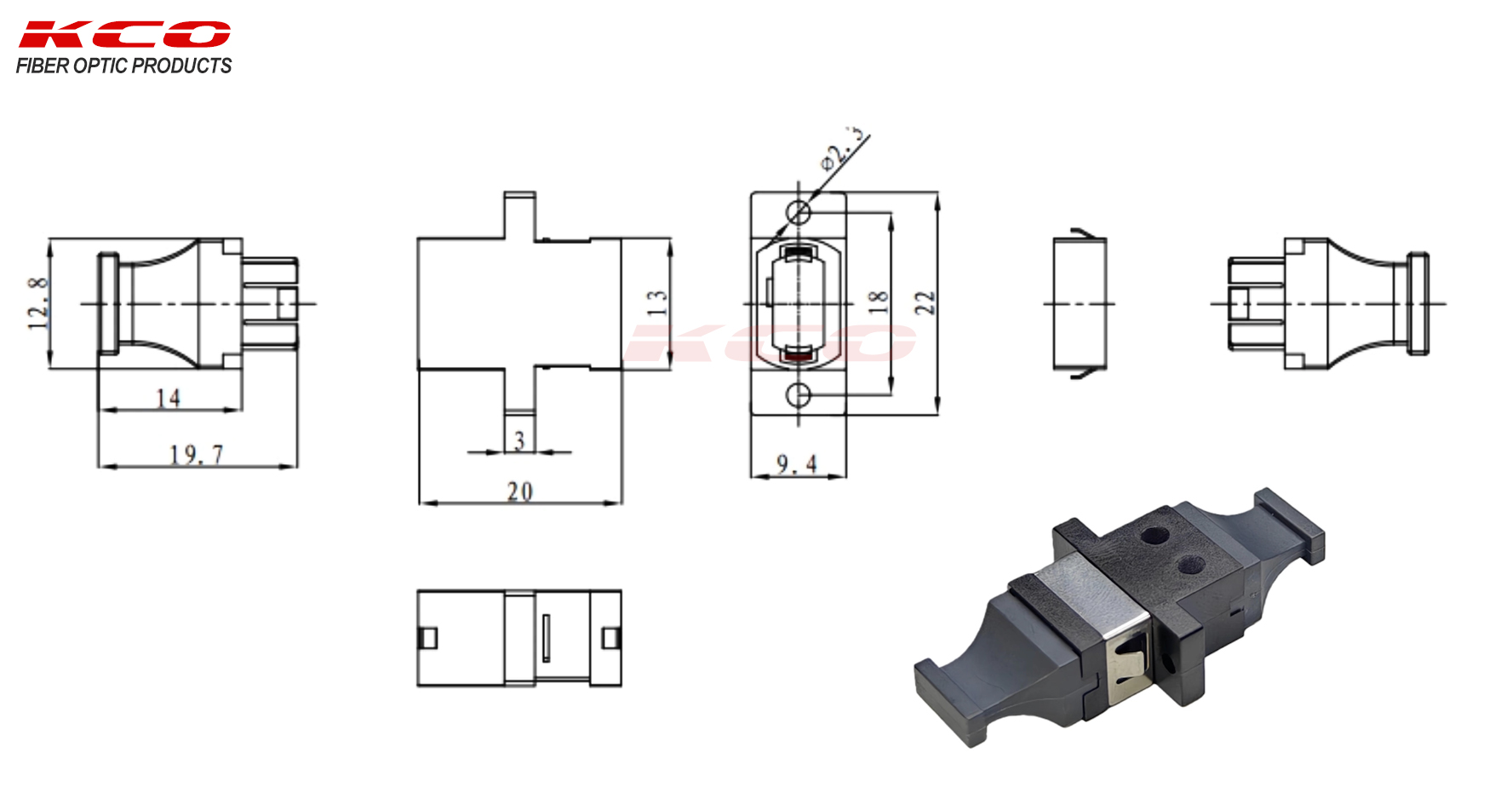

- Designed as a flange adapter with screw holes on both sides for secure mounting on patch panel plates.
- Lightweight and durable plastic housings.
- One-piece coupler design maximizes coupling strength while minimizing debris generation.

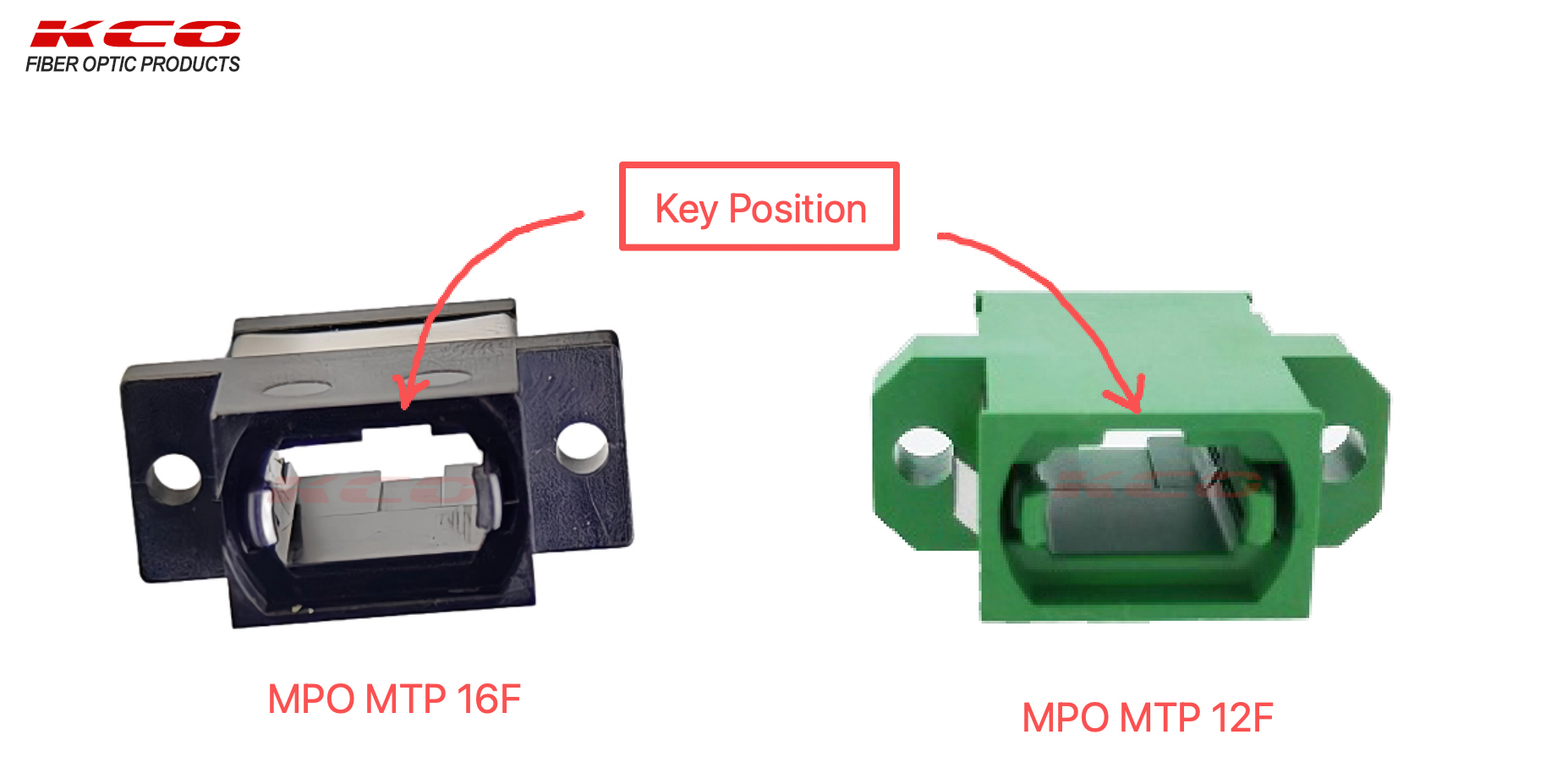

Key Alignment Configurations
MPO optical adapters / MTP fiber optic couplers are available in two alignment styles:
- Opposed Type (Key Up to Key Down): Used for standard Type A trunk cables.
- Aligned Type (Key Up to Key Up): Used for standard Type B trunk cables.
Technical Specifications
| Physical & Optical Parameters |
Design & Performance |
| Connector Type |
MPO/MTP |
Body Style |
SC type Simplex |
| Fiber Mode |
Multimode / Single mode |
Body Color |
Black |
| Insertion Loss |
≤0.15dB |
Mating Durability |
500 times |
| Flange |
With flange |
Key Orientation |
Key Up – Key Up / Key Up - Key Down |
Target Solutions
- MPO MTP cabling solutions
- Data centers
- AI cabling transfer systems
- Star-link transfer systems
- FTTx solutions
- High density modules
- High density patch panels
Performance & Characteristics
- Compatible with 8-fiber and 32-fiber MTP/MPO connectors.
- Single mode and Multimode configurations available.
- High size precision with excellent repeatability.
- High wearability for long-lasting deployments.
- SC footprint with flange, facilitating straightforward installation.
- Aqua and Violet color options available.
Environmental Specifications
| Parameter |
Specification Value |
| Operating Temperature |
-20°C to 70°C |
| Storage Temperature |
-40°C to 85°C |
| Humidity |
95% RH |
Frequently Asked Questions (FAQ)
What speeds does the MPO-16 / MTP-16 fiber adapter support?
This adapter supports high-speed networks with speeds up to 40G, 100G, 200G, and 400G.
What is the insertion loss rating of this optical coupler?
It features an ultra-low insertion loss of ≤0.15dB, ensuring optimal signal integrity.
What alignment options are available for the key orientation?
It is available in two types: Opposed type (Key Up to Key Down) for standard Type A trunk cables, and Aligned type (Key Up to Key Up) for standard Type B trunk cables.
Can this adapter be used for both Single mode and Multimode fiber networks?
Yes, both Single mode and Multimode fiber configurations are fully supported.
What are the operating and storage temperature limits for this product?
The operating temperature ranges from -20°C to 70°C, and the storage temperature ranges from -40°C to 85°C.
How is the adapter secured inside patch panels?
It features a flange design with screw holes on both sides, making it easy to install and securely fix onto patch panel plates.
