| Connector Type | MPO/MTP | Body Style | SC type Simplex |
| Fiber Mode | Multimode / Singlemode | Body Color | Black |
| Insertion Loss | ≤0.15dB | Mating Durability | 500 times |
| Flange | With flange | Key Orientation | Key Up – Key Up / Key Up – Key Down |
| Operating temperature | -20°C to 70°C |
| Storage temperature | -40°C to 85°C |
| Humidity | 95%RH |

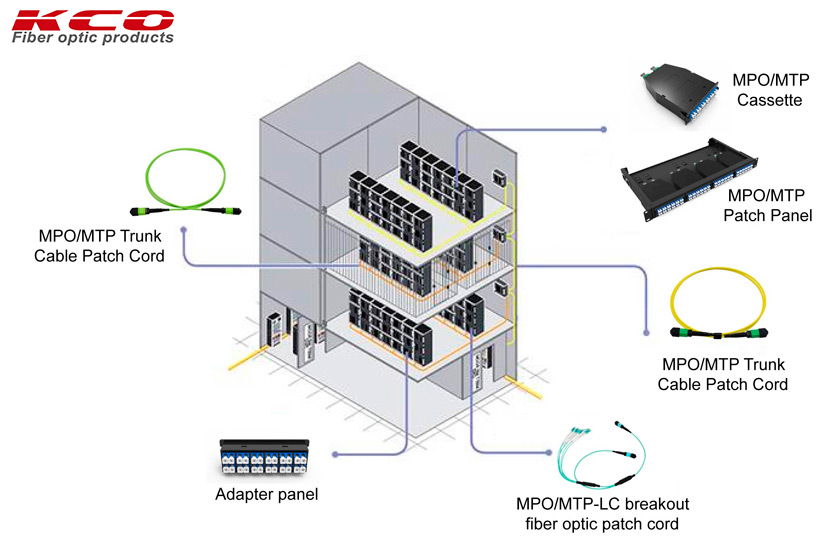

The adapter supports high-speed data transmission speeds of 40G, 100G, 200G, and up to 400G, making it ideal for high-capacity data centers and enterprise networks.

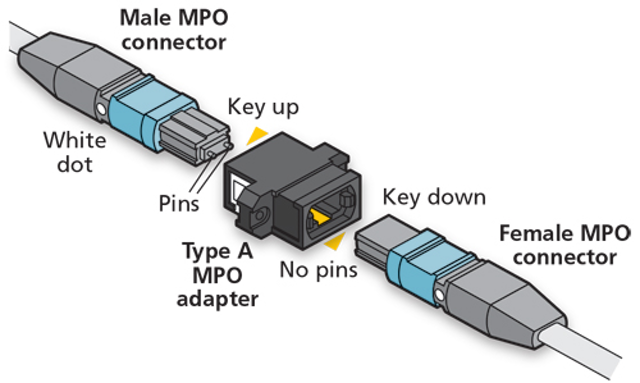

Opposed type (Key Up to Key Down) is used to connect standard Type A trunk cables. Aligned type (Key Up to Key Up) is used to connect standard Type B trunk cables.
Yes, both Single-mode and Multimode configurations are available to suit various optical fiber networks.
The adapter is female-only. When connecting MPO/MTP trunk cables through this adapter, the cables must have one side female (without pins) and the other side male (with pins) to establish a proper connection.
The adapter provides ultra-low loss with an insertion loss of ≤0.15dB and features a durable design rated for up to 500 mating cycles.

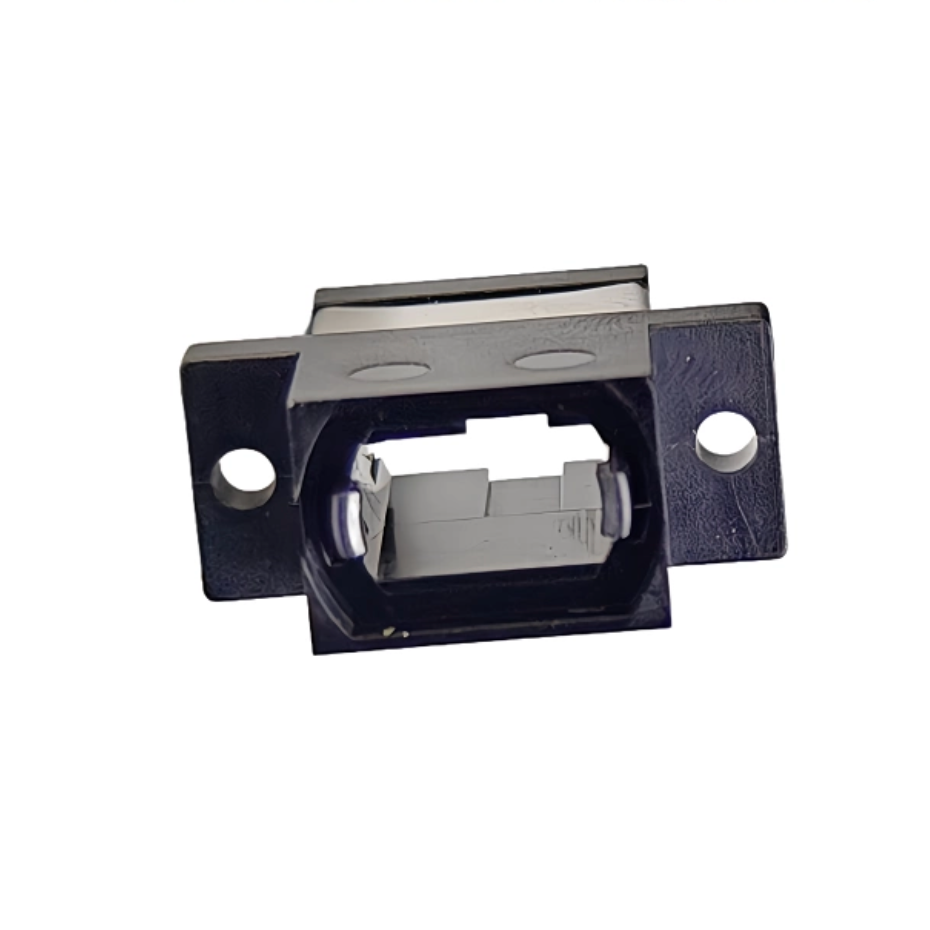

The flange provides a secure mounting option that helps fix the adapter firmly into standard patch panel plates, ensuring stability and ease of installation.
