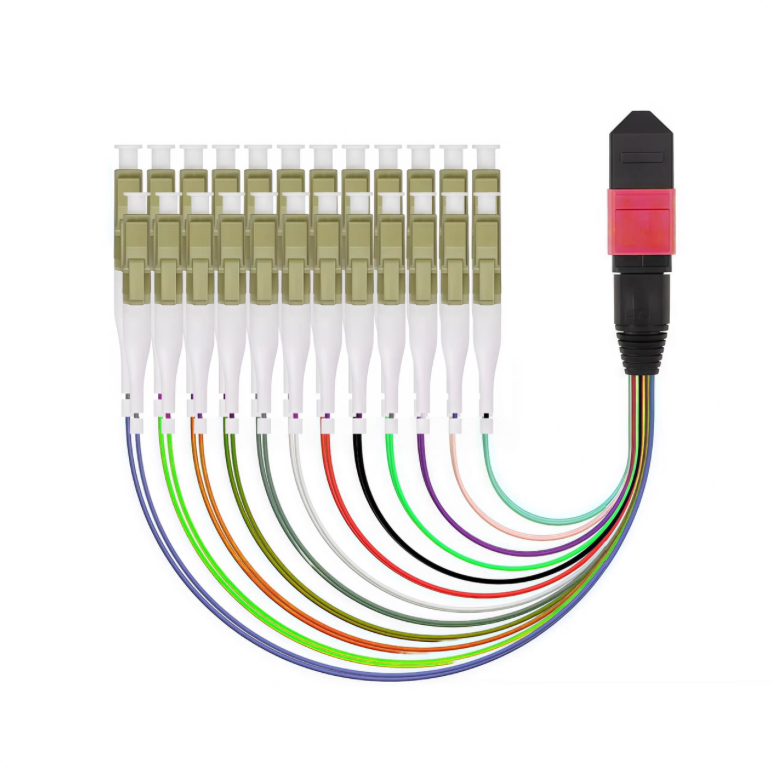

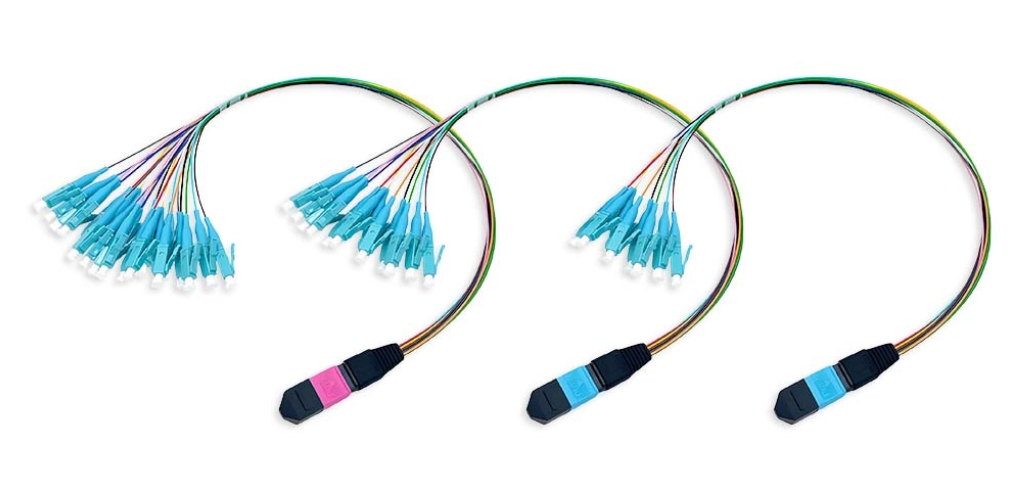

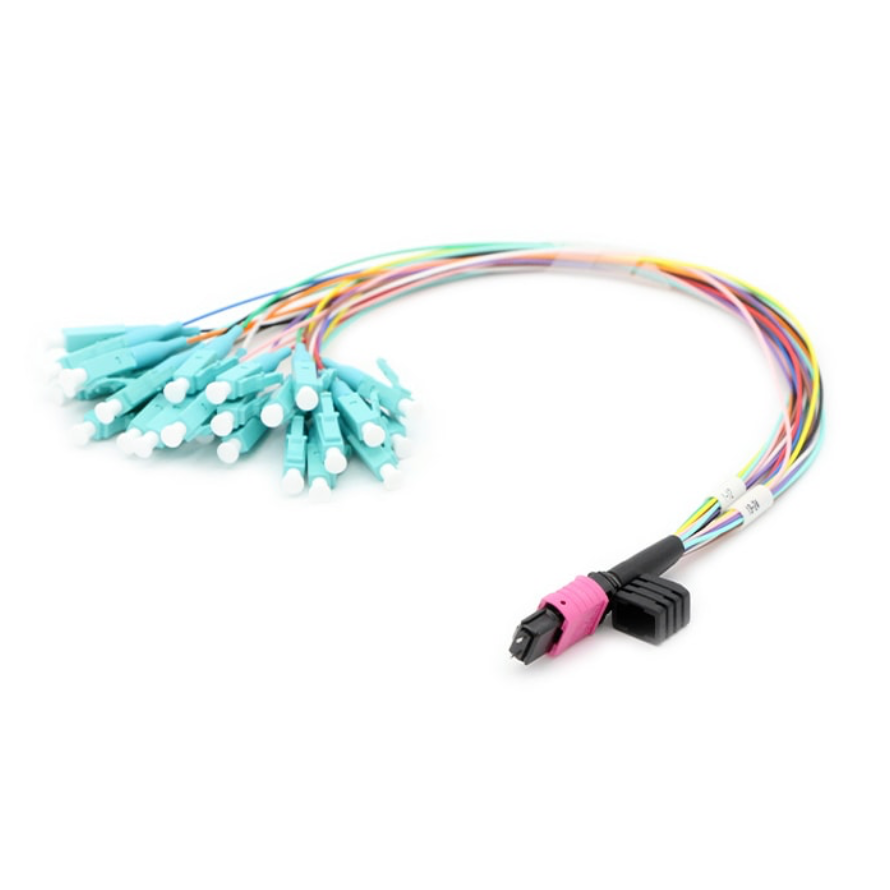

MPO to LC OM4 24-fibers (24fo) fan-out patch cables, often called harness cables, are designed to connect high-density MPO backbone trunks or transceivers (like 40G/100G QSFP+) to standard 10G LC ports.

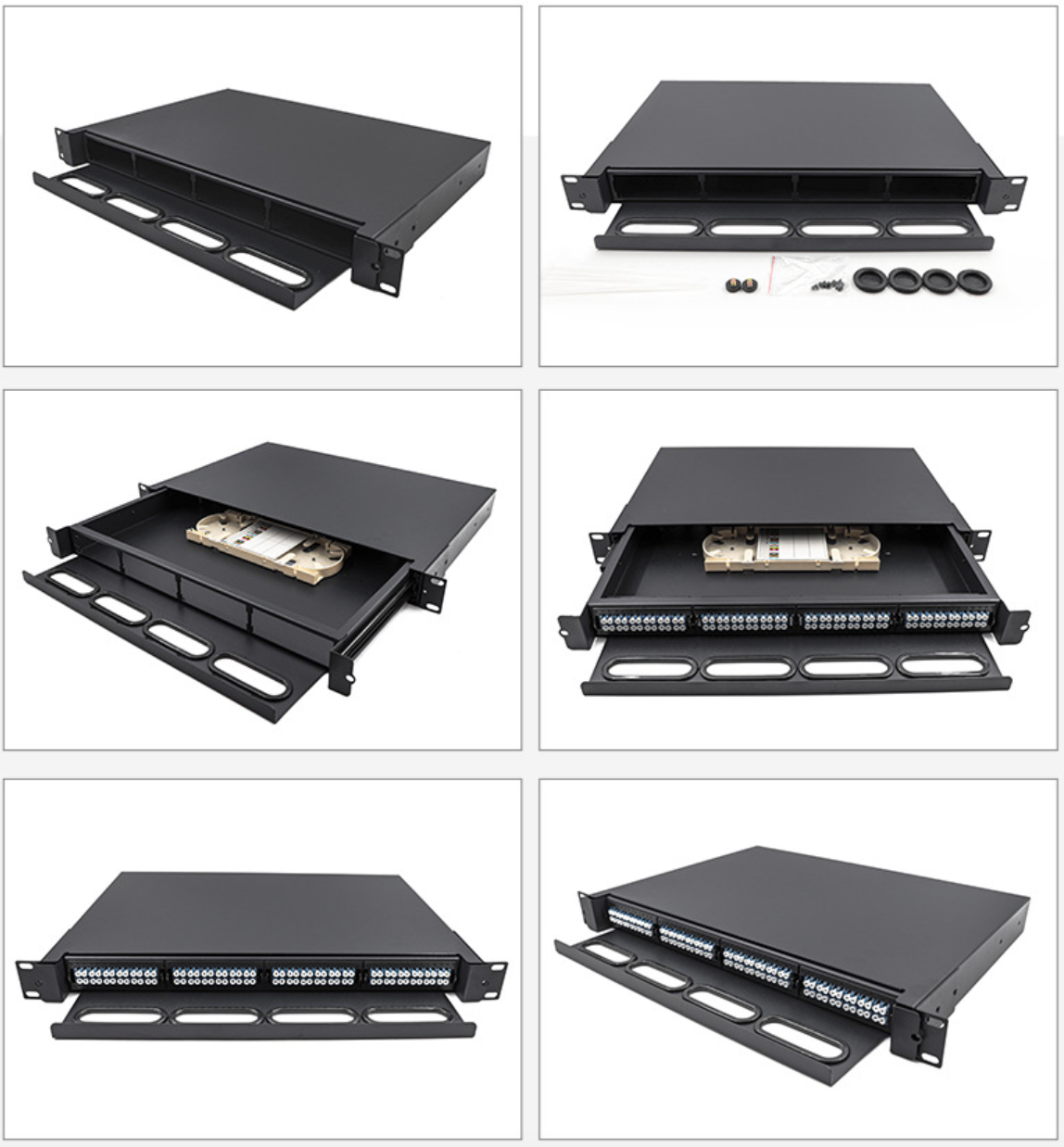

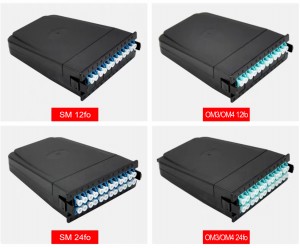

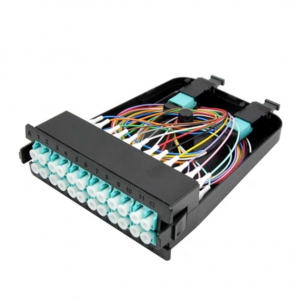

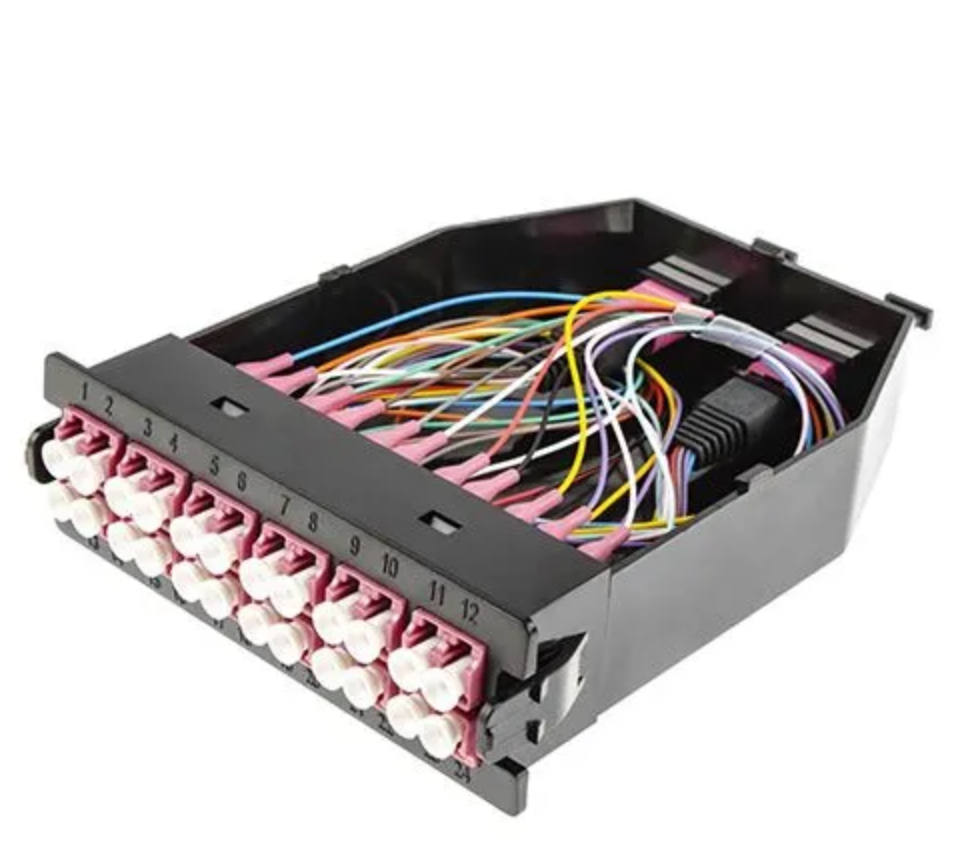

MPO to LC OM4 24-fiber (24fo) patch cord is a high-density solution used to transition a single MPO-24 connector into 12 duplex LC pairs. This configuration is primarily used for aggregating multiple 10G/25G links or breaking out high-bandwidth parallel optics like 100G SR10 or 400G SR8 transceivers. These cables often are installed in the MPO MTP high density module for patch panel.
| Type | Single Mode (APC Polish) | Single Mode (UPC Polish) | Multi Mode (PC Polish) | |||
|---|---|---|---|---|---|---|
| Fiber Count | 8, 12, 24 etc. | 8, 12, 24 etc. | 8, 12, 24 etc. | |||
| Fiber Type | G652D, G657A1 etc. | G652D, G657A1 etc. | OM1, OM2, OM3, OM4, etc. | |||
| Max. Insertion Loss | Elite / Low Loss | Standard | Elite / Low Loss | Standard | Elite / Low Loss | Standard |
| ≤0.35 dB | ≤0.75 dB | ≤0.35 dB | ≤0.75 dB | ≤0.35 dB | ≤0.60 dB | |
| Return Loss | ≥60 dB | ≥60 dB | NA | |||
| Durability | ≥500 times | ≥500 times | ≥500 times | |||
| Operating Temperature | -40°C ~ +80°C | -40°C ~ +80°C | -40°C ~ +80°C | |||
| Test Wavelength | 1310nm | 1310nm | 1310nm | |||
| Insert-pull test | 1000 times < 0.5 dB | |||||
| Interchange | < 0.5 dB | |||||
| Anti-tensile force | 15kgf | |||||
