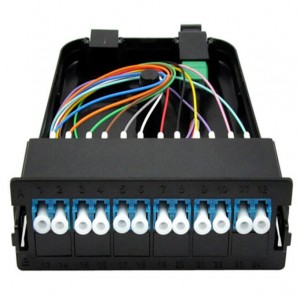

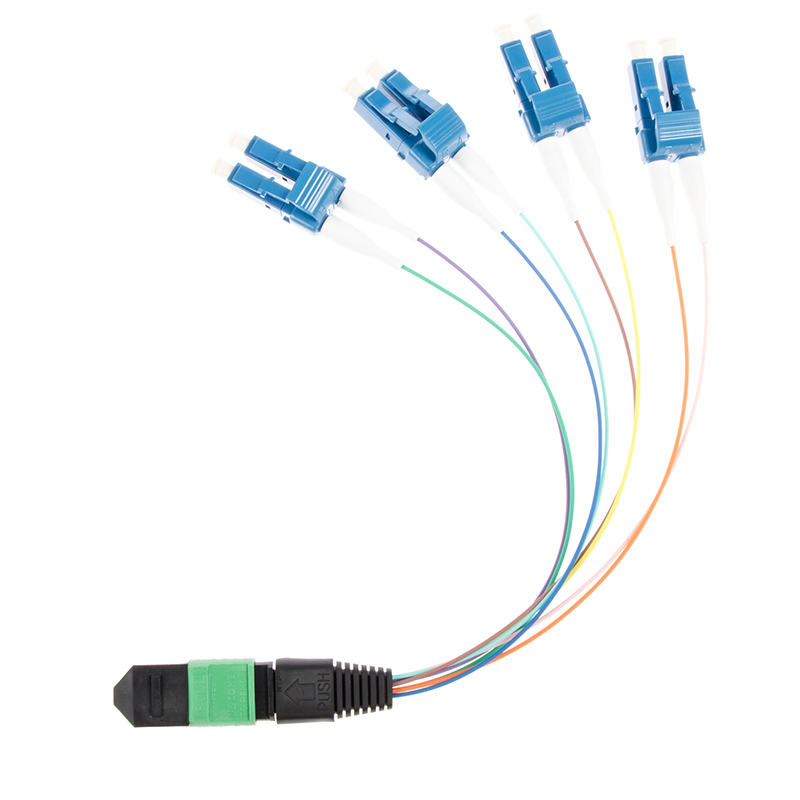

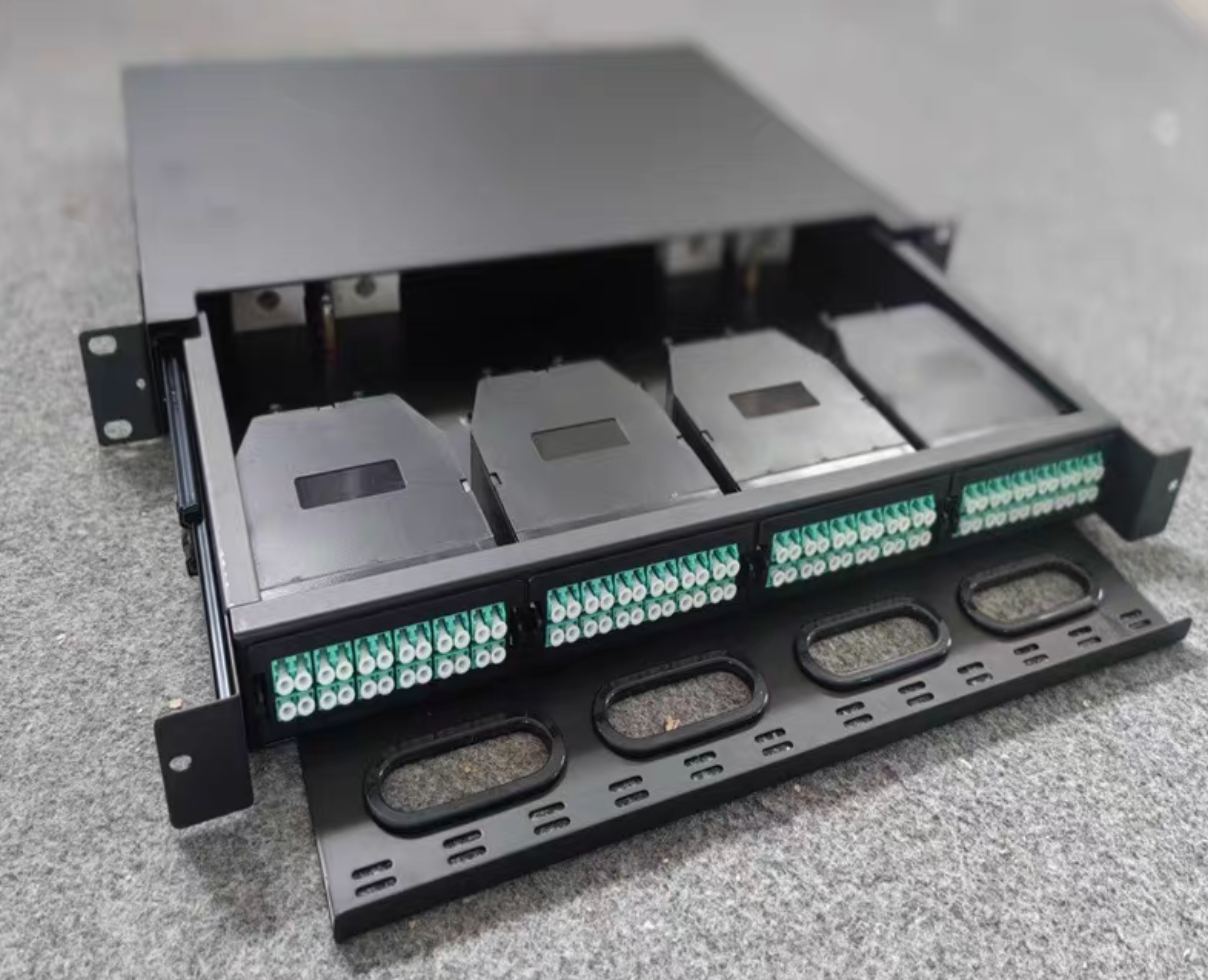

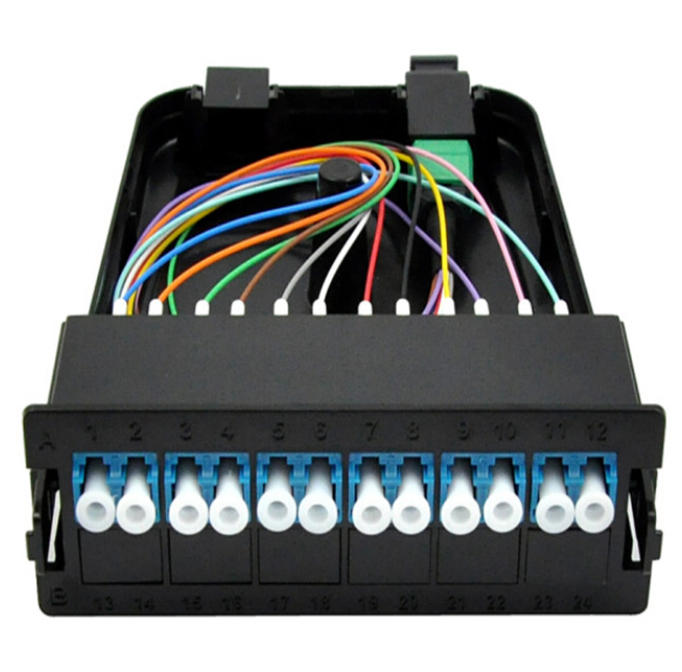

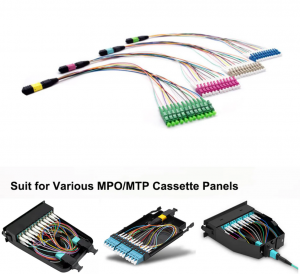

MPO Male to LC / MTP Male to LC fiber optic fan-out patch cord is a fiber optic assembly used to bridge high-density multi-fiber connections to individual single-fiber ports on the MPO MTP high density fiber optic patch panel.
It is 8 fibers, with side A use MPO-8 or MTP-8 connector and side B use the LC single mode connector. The MPO MTP connector is male with pin. These cables are essential for connecting high-speed 40G/100G/400G transceivers (like QSFP+) to existing 10G SFP+ equipment in data centers.
| Type | Single Mode (APC Polish) | Single Mode (UPC Polish) | Multi Mode (PC Polish) | |||
|---|---|---|---|---|---|---|
| Fiber Count | 8, 12, 24 etc. | 8, 12, 24 etc. | 8, 12, 24 etc. | |||
| Fiber Type | G652D, G657A1 etc. | G652D, G657A1 etc. | OM1, OM2, OM3, OM4, etc. | |||
| Max. Insertion Loss | Elite (Low Loss) | Standard | Elite (Low Loss) | Standard | Elite (Low Loss) | Standard |
| Value (IL) | ≤0.35 dB | ≤0.75 dB | ≤0.35 dB | ≤0.75 dB | ≤0.35 dB | ≤0.60 dB |
| Return Loss | ≥60 dB | ≥60 dB | NA | |||
| Durability | ≥500 times | ≥500 times | ≥500 times | |||
| Operating Temperature | -40°C ~ +80°C | |||||
| Test Wavelength | 1310nm | 1310nm | 1310nm | |||
| Insert-pull test | 1000 times <0.5 dB | |||||
| Interchange | <0.5 dB | |||||
| Anti-tensile force | 15kgf | |||||
